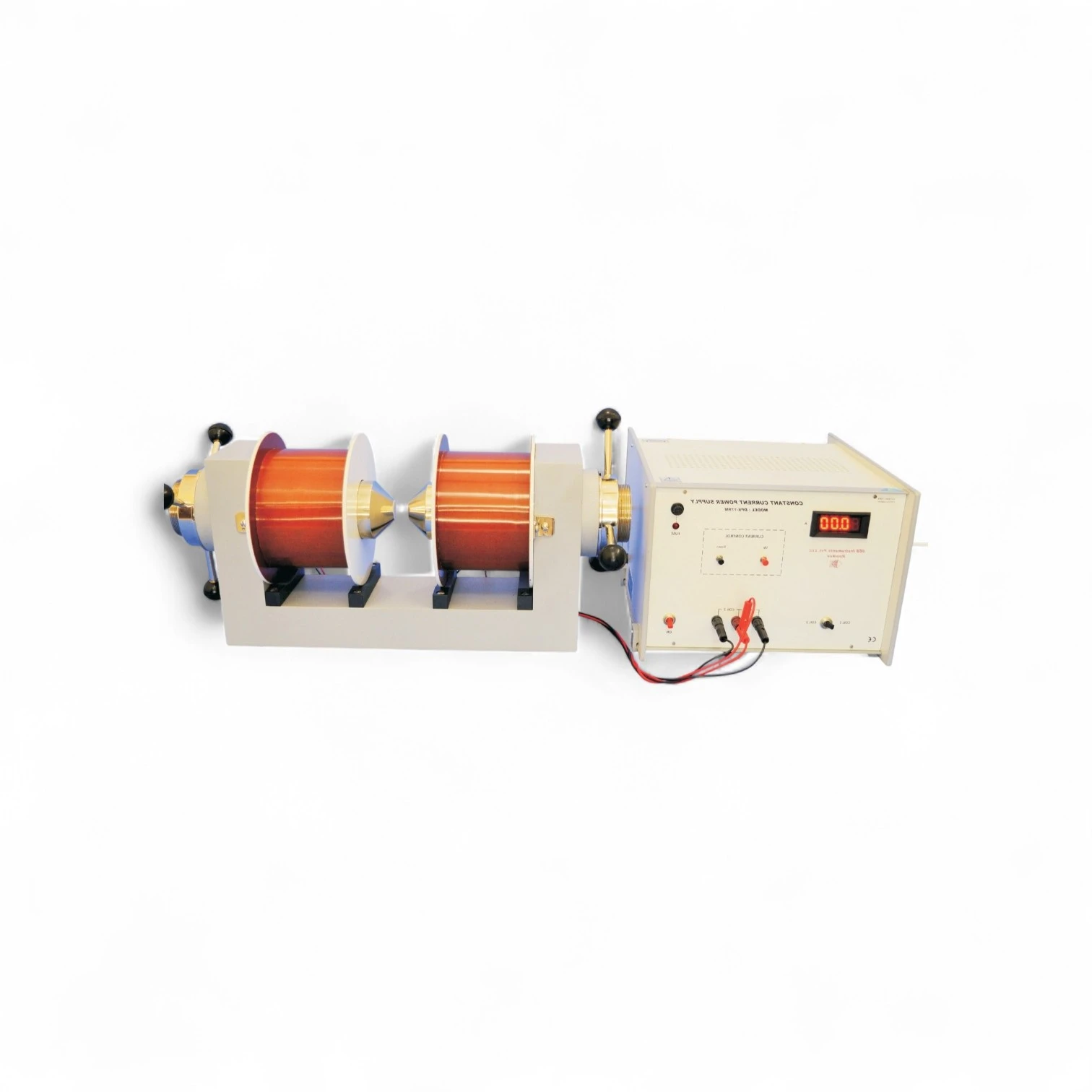

The EMU‑75 / DPS‑175‑M is a laboratory-grade electromagnet system paired with a manually controlled constant current power supply, ideal for precise magnetic field generation in academic, industrial, and research applications.

The EMU‑75 electromagnet features a high-quality C-type laminated core with adjustable pole spacing (0–100 mm) and 75 mm pole diameter, optimized for uniform magnetic field generation. It is capable of producing fields up to 10 kG (1 Tesla) when paired with the DPS‑175‑M power supply.

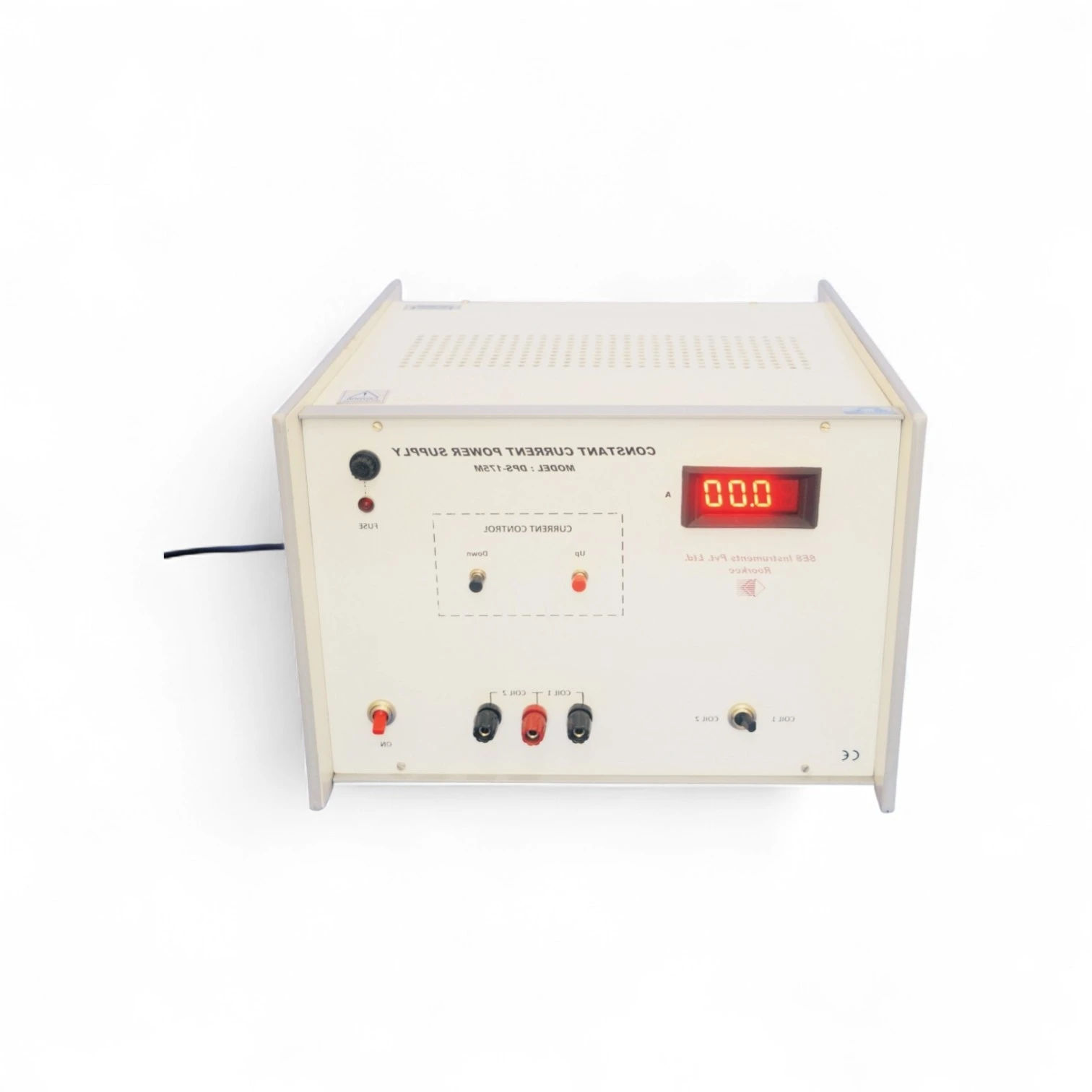

The DPS‑175‑M constant current power supply offers manual control of current (up to 5 A) and voltage (up to 175 V), with a dual digital display for real-time monitoring. Built-in protection features ensure safe and reliable operation during continuous experimental use.

This electromagnet system is widely used in Hall Effect, magnetoresistance, Zeeman effect, and material property testing under magnetic influence.

🔧 Key Features

Electromagnet (EMU‑75):

• Magnetic Field: Up to 10 kG (1 Tesla)

• Pole Diameter: 75 mm

• Air Gap: Adjustable from 0 to 100 mm

• Core: High-permeability laminated silicon steel (C-type)

• Mounting: Heavy-duty base for stability

Power Supply (DPS‑175‑M):

• Output Current: 0–5 A (manual control)

• Output Voltage: 0–175 V DC

• Display: Dual digital display for current and voltage

• Control Mode: Manual current adjustment knobs (coarse/fine)

• Protections: Overload, short circuit, overheat

• Input Supply: 230 V ±10%, 50 Hz AC

Applications

• Hall Effect and magnetoresistance experiments

• Zeeman effect and optical magnetic measurements

• Magnetic field calibration for sensors and Gaussmeters

• Material science and solid-state research

• Physics and electronics lab demonstrations
