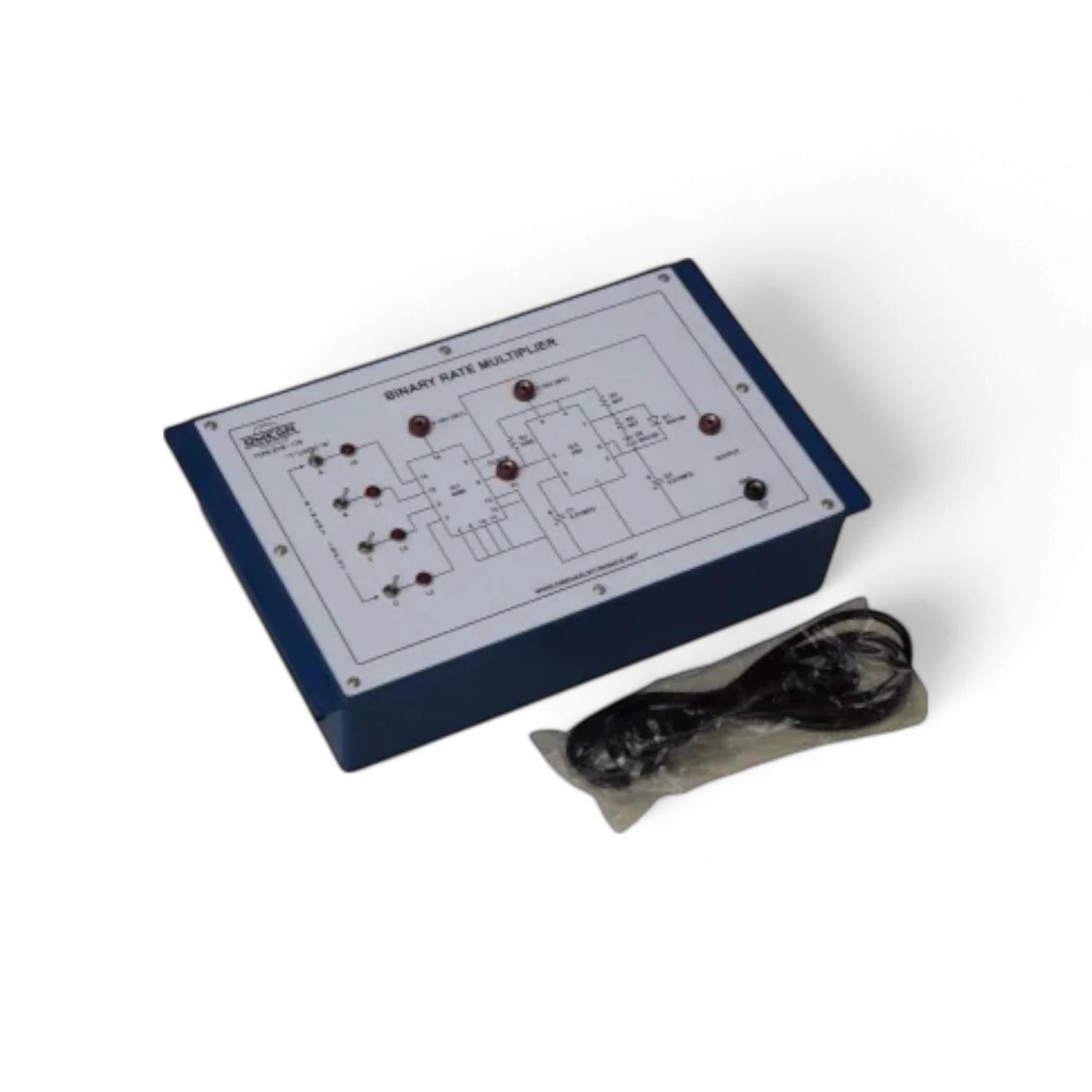

ETB-176 (Model Binary Rate Multiplier with Power Supply)

(0) 0 Reviews 0 Orders 0 Wish listed

₹20,000.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

The ETB-176 Binary Rate Multiplier trainer is designed to demonstrate the working of digital pulse rate manipulation using binary weighting. This model allows students to explore how an input clock signal can be scaled or divided down to a specific output frequency proportional to a binary input value, using logic gates and digital ICs.

This trainer is built around standard TTL/CMOS logic ICs and comes with a regulated power supply, enabling direct connection to waveform generators or logic analyzers for real-time study. The circuit helps learners understand pulse control, frequency scaling, and binary operations used in digital communication and signal processing systems.

Ideal for digital electronics and communication labs, this model is an essential tool for understanding practical applications of digital timing and control.

Key Features:

Demonstrates pulse rate multiplication based on binary inputs
Uses digital logic ICs for accurate operation
Built-in regulated power supply for independent usage
Ideal for studying frequency control, binary logic, and digital modulation
Suitable for use in engineering colleges, polytechnics, and technical institutes
