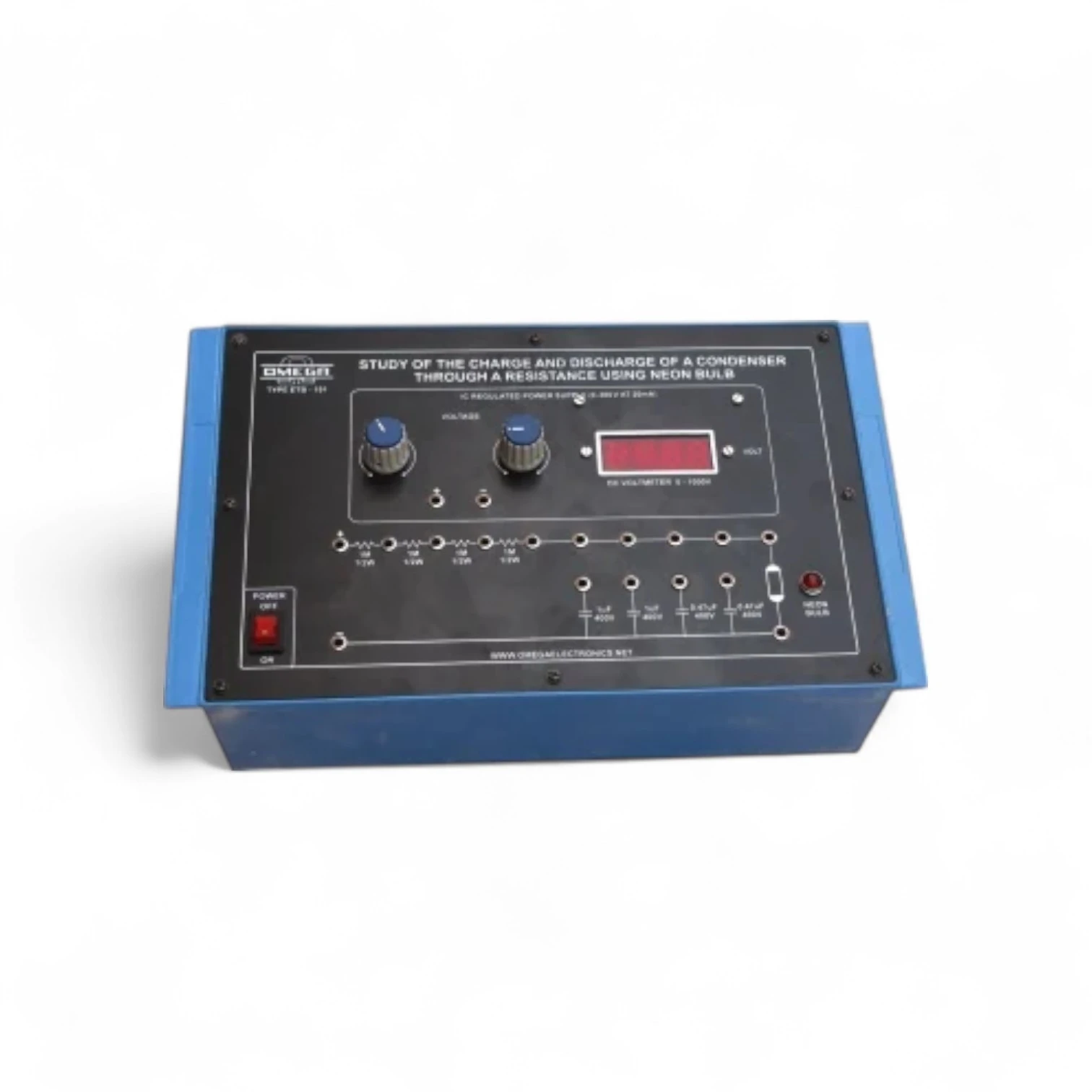

This experimental setup is designed to demonstrate the charging and discharging characteristics of a capacitor (condenser) through a resistor using a Neon bulb as a visual indicator. The neon bulb lights up at its breakdown voltage, offering a striking visual cue for understanding RC time constants and threshold behavior in capacitor charging cycles. The trainer includes a regulated power supply, a high-quality capacitor-resistor network, a Neon bulb for visual feedback, and 1 digital voltmeter to observe voltage levels across the capacitor over time. This model is ideal for students studying basic electronics, physics, or electrical engineering, helping them grasp foundational time-dependent behavior in RC circuits. Key Features:
|
