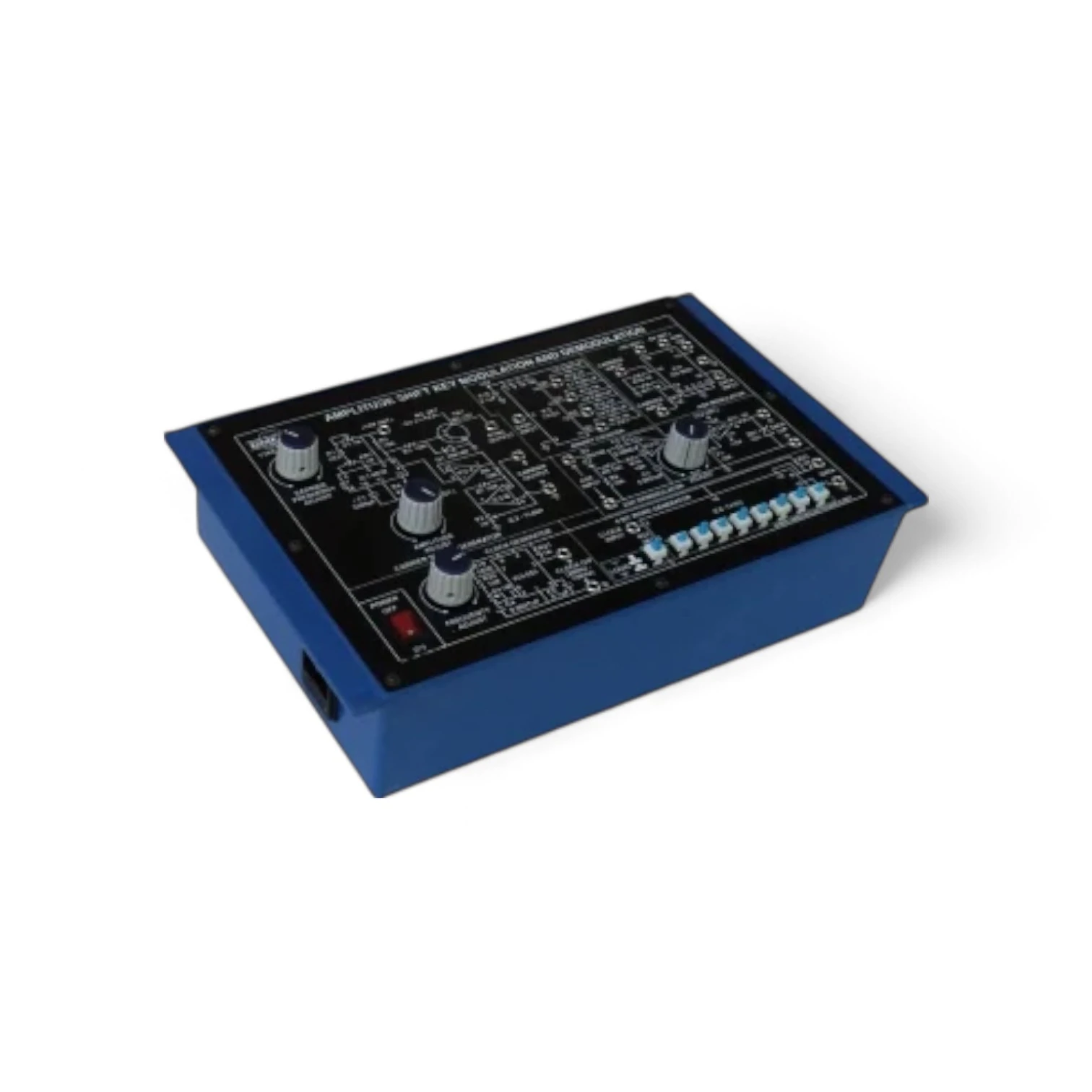

The ETB-208 ASK Modulation and Demodulation Trainer is a dedicated educational tool designed for demonstrating the working principles of Amplitude Shift Keying (ASK), a fundamental digital modulation technique used in communication systems.
This trainer provides a complete experimental platform that includes a built-in power supply, digital data generator, carrier signal generator, and ASK modulator and demodulator circuits. The circuit layout is fully exposed and clearly labeled for effective learning and troubleshooting.
With this unit, students can observe the ASK waveform at different test points using an oscilloscope and gain practical experience in analyzing the signal behavior and demodulation process. Ideal for engineering institutions and communication labs.
Key Features:
Demonstrates ASK modulation and demodulation
Integrated power supply and functional blocks
Digital data input and carrier generator
Test points for waveform observation
Clear component layout for easy understanding
Ideal for B.Tech, Diploma, and Vocational Electronics Labs
