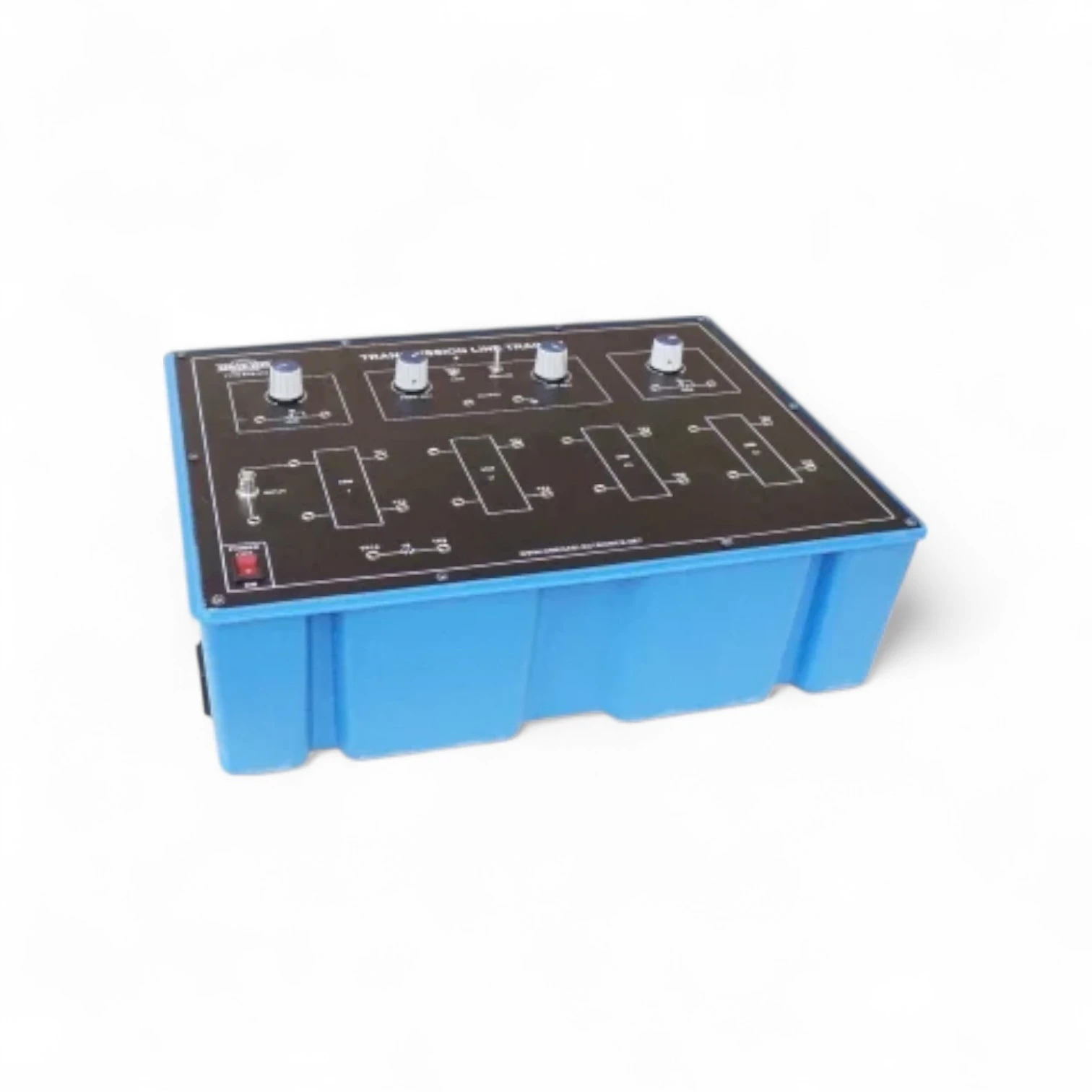

ETB-210 (Model Transmission Line Trainer (coaxial cable) with Power Supply)

(0) 0 Reviews 0 Orders 0 Wish listed

₹40,000.00

Quantity :
Total price :
  (Tax : )

The ETB-210 Transmission Line Trainer is designed to provide hands-on training and experimental verification of transmission line theory using coaxial cables. This system enables learners to understand various parameters and behaviors of transmission lines, such as reflection coefficient, VSWR, impedance matching, and signal attenuation.

With a built-in power supply, signal generator, and well-integrated measurement points, this trainer facilitates practical learning of both time-domain and frequency-domain behavior of coaxial transmission lines. It supports experiments for both open- and short-circuited terminations and includes adjustable loads and cable sections.

Key Features:

  • Study of transmission line behavior using coaxial cable

  • Built-in signal generator and power supply

  • Investigation of reflection, impedance, attenuation, and VSWR

  • Clear layout with test points for waveform observation

  • Suitable for electronics, communication, and RF engineering labs

  • Robust and easy-to-operate educational trainer
