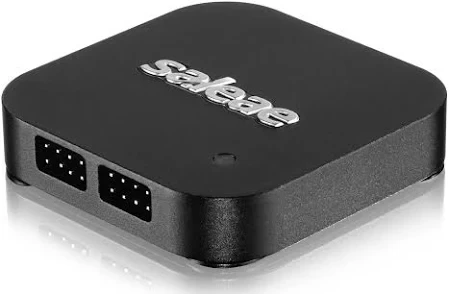

An 8-Channel Logic Analyzer is a compact yet powerful tool designed for capturing, analyzing, and debugging digital signals in embedded systems, IoT devices, and microcontroller-based projects. It allows researchers and developers to monitor up to 8 digital channels simultaneously, making it ideal for studying communication protocols, timing relationships, and system behavior in real time.

By interfacing with a PC via USB and using dedicated software, the logic analyzer provides high-resolution timing analysis, protocol decoding (such as I²C, SPI, UART, 1-Wire, CAN, etc.), and waveform visualization—critical for debugging complex digital systems.

Technical Specifications (Typical Research-Grade Unit)

• Channels: 8 digital inputs

• Sampling Rate: Up to 24–100 MHz (depending on model)

• Input Voltage Range: 0 – 5.5V (TTL/CMOS compatible)

• Input Threshold: Typically 1.5V (adjustable in advanced models)

• Memory Depth: Streaming to PC via USB (unlimited capture length, constrained by PC RAM)

• Connectivity: USB 2.0/3.0 interface for data transfer and power

• Supported Protocol Decoders: I²C, SPI, UART, 1-Wire, CAN, LIN, JTAG, PWM, etc.

• Software Compatibility: Open-source tools (Sigrok/PulseView) or vendor-provided software

• Triggering: Edge, pattern, or protocol-based triggers (depending on model)

Features

• Simultaneous capture of 8 channels with high sampling resolution

• Protocol decoding for popular serial buses used in IoT and robotics

• Real-time visualization and deep analysis of digital waveforms

• Compact, USB-powered design for portability and lab use

• Cross-platform software support (Windows, Linux, macOS)

• Low-cost alternative to traditional oscilloscopes for digital debugging

Operating Parameters

• Operating Temperature: 0°C – 40°C (lab environment)

• Storage Temperature: -20°C – 70°C

• Humidity: 10% – 90% non-condensing

Compatibility & Interfaces

• Works with Arduino, ESP32, Raspberry Pi, Jetson boards, ARM MCUs, and FPGA systems

• Interfaces with I²C, SPI, UART, PWM, CAN, and other digital buses commonly found in IoT and robotics applications

Common Use Cases

• IoT Development: Debugging communication between microcontrollers and sensors

• Protocol Analysis: Capturing and decoding I²C, SPI, UART, or CAN signals

• FPGA/MCU Debugging: Verifying timing, logic levels, and synchronization

• Robotics: Ensuring correct motor control signals and sensor communication

• Research & Academia: Teaching digital system design and protocol debugging

Why Valuable for Research?
An 8-channel logic analyzer is a cost-effective yet powerful instrument for any research lab, offering detailed insight into digital system behavior. Its ability to decode multiple serial protocols and visualize timing relationships makes it indispensable for debugging IoT systems, verifying embedded designs, and teaching digital communication concepts.
