The Pixhawk 2.4.8 Flight Controller with GPS Module is an advanced open-source autopilot platform widely used in UAV research, robotics, and autonomous systems development. It provides reliable flight stabilization, mission planning, and navigation through integration with GPS and multiple onboard sensors. Designed for drones, rovers, boats, and other robotic platforms, Pixhawk offers high-performance computing, sensor fusion, and flexible connectivity, making it a staple in both academic research and industry prototyping.

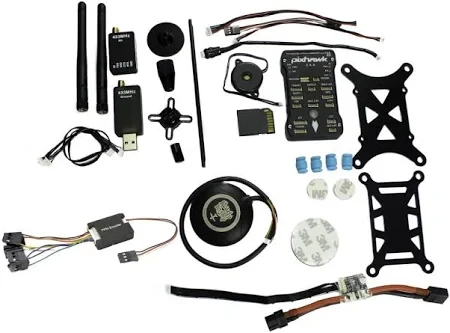

This kit includes the Pixhawk 2.4.8 controller and a GNSS GPS module (commonly Ublox M8N), enabling autonomous navigation with position accuracy and waypoint-based mission execution.

Technical Specifications

Flight Controller (Pixhawk 2.4.8):

• Processor: 32-bit ARM Cortex-M4 @ 168 MHz, FPU, 256KB RAM, 2MB Flash

• IMU Sensors:

  • 3× Accelerometers

  • 3× Gyroscopes

  • 3× Magnetometers (compass)

  • Barometer (altitude sensing)

• Power Input: 4.5V – 5.5V via power module (supports battery monitoring)

• PWM Outputs: 8 (main) + 6 (auxiliary)

• Communication Interfaces: UART, I²C, CAN, SPI, USB, ADC, PWM

• MicroSD Support: Logging up to 4GB+

• Failsafe Features: RC signal loss, GPS failsafe, battery failsafe, geofencing

GPS Module (Ublox M8N, typical):

• Position Accuracy: ~2.5m CEP

• Update Rate: 1Hz – 10Hz

• Satellite Systems: GPS + GLONASS/QZSS

• Communication: UART/I²C to Pixhawk

• Antenna: External active ceramic patch antenna with shielding

Features

• Open-source firmware support: ArduPilot, PX4

• Real-time sensor fusion for stable flight control

• Autonomous waypoint navigation with GPS

• Redundant sensor architecture for reliability

• Expandable for additional modules (telemetry, camera gimbals, LiDAR)

• Onboard logging for post-flight analysis

• Widely supported in research communities with strong ecosystem

Operating Parameters

• Operating Temperature: -10°C – 55°C

• Altitude Support: Up to 5,000m above sea level

• Battery Compatibility: LiPo 2S–6S via power module

Compatibility & Interfaces

• Compatible with quadcopters, hexacopters, fixed-wing UAVs, rovers, boats, and VTOL platforms

• Works with Mission Planner, QGroundControl, and MAVLink-compatible GCS software

• Compatible with companion computers (Raspberry Pi, NVIDIA Jetson, Intel NUC) via MAVLink for AI/ML integration

Common Use Cases

• Drone Research: Autonomous UAV control, path planning, swarm robotics

• IoT & Remote Sensing: Environmental monitoring, agriculture drones

• Robotics Labs: Rover navigation, ground vehicles with GPS waypoint tracking

• Education: Teaching UAV control systems, flight dynamics, and embedded navigation

• Defense/Industrial Prototyping: Research in surveillance, mapping, and payload delivery

Why Valuable for Research?
The Pixhawk 2.4.8 with GPS provides an open, flexible, and reliable platform for academic and industrial R&D in autonomous navigation, robotics, and UAV systems. Its strong ecosystem, modularity, and compatibility with AI companion computers make it indispensable for cutting-edge research in aerial robotics, IoT-enabled drones, and field robotics experiments.
