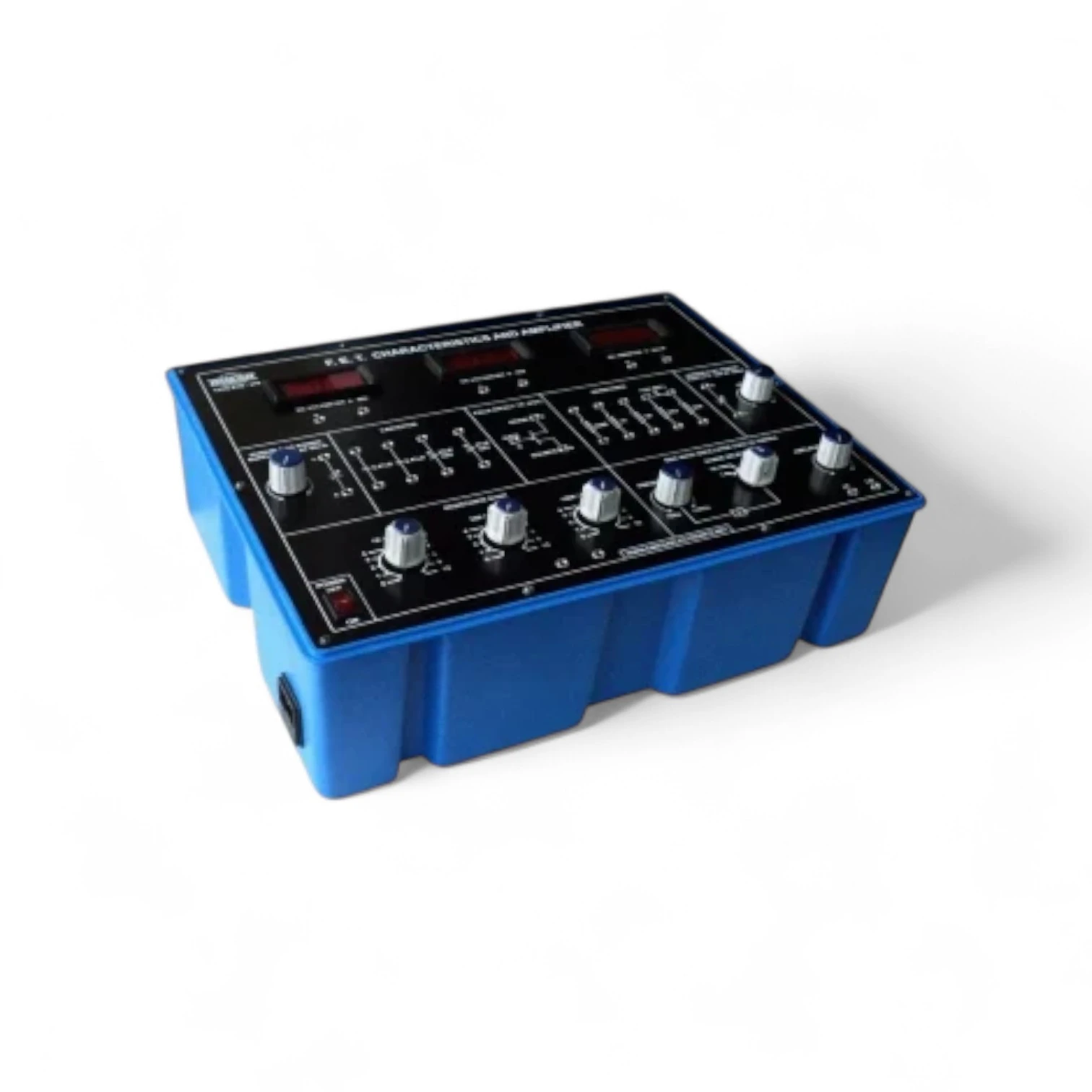

ETB-053 (Model F.E.T. Characteristics with power supply and 3 meters (C.R.))

(0)

0 Reviews

100 In Stock

₹15,000

Qty

Total price: ₹15,000

Details description
The ETB-053 trainer is developed to study the input and output characteristics of a Field Effect Transistor (FET) in detail. It allows students to analyze the drain and transfer characteristics, observe the pinch-off voltage, and understand the behavior of the FET under various biasing conditions. This model features a built-in regulated power supply and three precision meters for monitoring gate, drain, and source voltages/currents. As a Complete Ready (C.R.) unit, it is ideal for hands-on experimentation in electronics and semiconductor labs at both academic and vocational levels. Key Features: Demonstrates input and output (transfer & drain) characteristics of FET Helps determine pinch-off voltage, ohmic region, and saturation region Comes with built-in power supply and 3 meters (C.R. configuration) Clear layout with labeled test points and terminals Suitable for semiconductor device, analog electronics, and engineering labs Supports both theoretical learning and practical verification

Details description

The ETB-053 trainer is developed to study the input and output characteristics of a Field Effect Transistor (FET) in detail. It allows students to analyze the drain and transfer characteristics, observe the pinch-off voltage, and understand the behavior of the FET under various biasing conditions.

This model features a built-in regulated power supply and three precision meters for monitoring gate, drain, and source voltages/currents. As a Complete Ready (C.R.) unit, it is ideal for hands-on experimentation in electronics and semiconductor labs at both academic and vocational levels.

Key Features:

Demonstrates input and output (transfer & drain) characteristics of FET
Helps determine pinch-off voltage, ohmic region, and saturation region
Comes with built-in power supply and 3 meters (C.R. configuration)
Clear layout with labeled test points and terminals
Suitable for semiconductor device, analog electronics, and engineering labs
Supports both theoretical learning and practical verification
