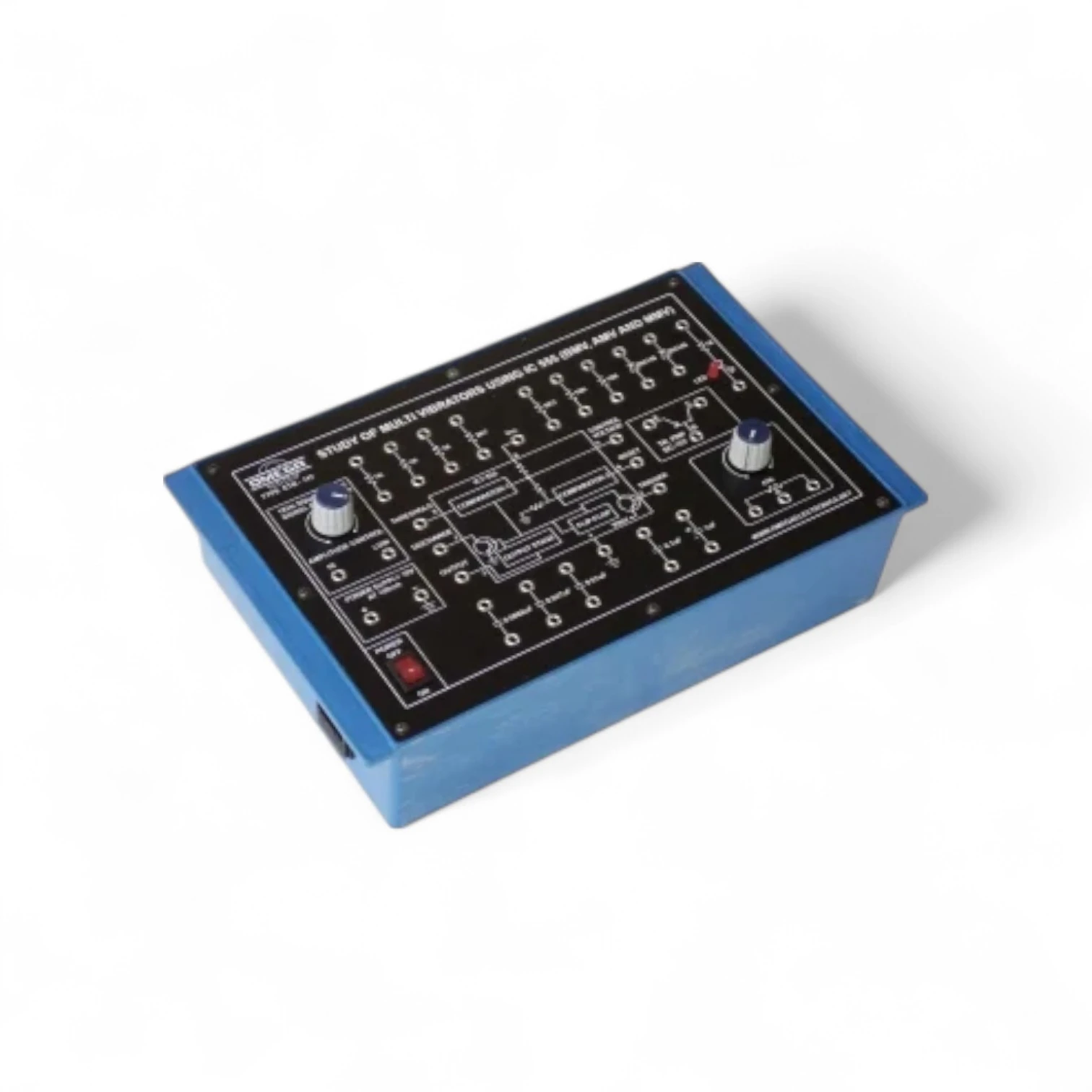

ETB-141 – Study of Multivibrators (BMV, AMV & MMV) using IC 555 with Power Supply is a versatile training kit designed to demonstrate the working principles of three basic multivibrator circuits—Bistable (BMV), Astable (AMV), and Monostable (MMV)—using the popular IC 555 timer. This model enables students to construct, analyze, and observe timing operations and waveform outputs of each multivibrator configuration. Equipped with a built-in regulated power supply and clearly labeled test points, it allows hands-on experiments and CRO-based waveform observation, making it an essential tool in learning digital timing circuits and pulse waveform generation. Key Features:
|
