ETB-143 (Model Study of Miller Sweep Circuit with power supply and multi range

(0) 0 Reviews 0 Orders 0 Wish listed

₹15,000.00

Quantity :
Total price :
  (Tax : )

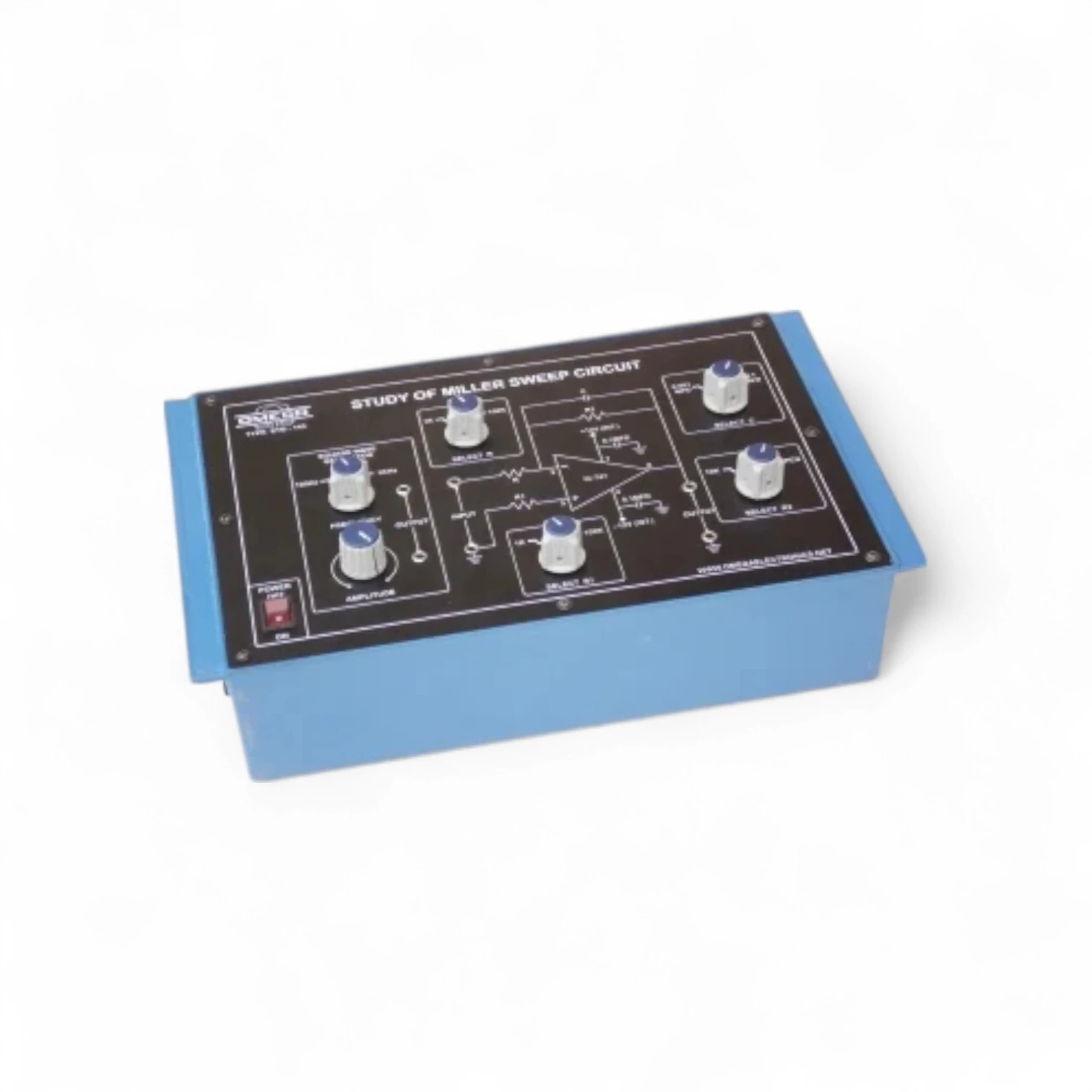

  • ETB-143 – Study of Miller Sweep Circuit with Power Supply and Multi-Range Meters is an educational trainer designed to demonstrate the operation and characteristics of the Miller Sweep waveform generator. This circuit is commonly used in timing applications, waveform shaping, and sawtooth waveform generation in oscilloscopes and analog systems.

    The trainer enables users to observe how a Miller integrator circuit creates a linear sweep waveform using a transistor-based setup. Equipped with an integrated regulated power supply and multi-range meters, this model facilitates precise voltage and time measurements, ideal for both classroom demonstrations and student experiments.

    Key Features:

    • Demonstrates the working of a Miller Sweep waveform generator

    • Includes power supply and built-in multi-range voltmeter/ammeter

    • Provides linear sweep (ramp) waveform output

    • Test points for waveform observation using oscilloscope

    • Suitable for studying sweep circuits used in oscilloscopes and radar systems

    • Ideal for analog electronics, waveform generation, and communication system labs
