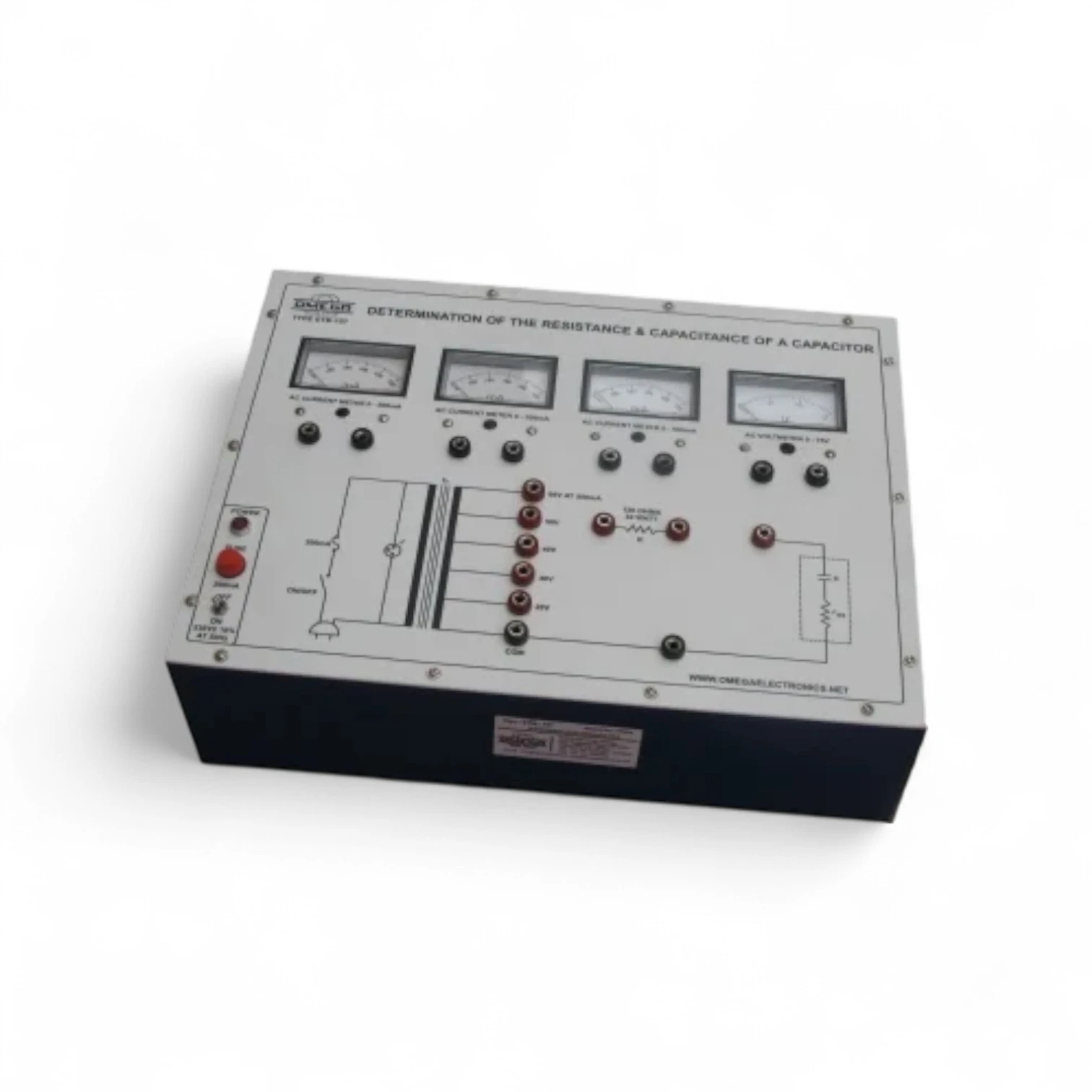

Determination of the resistance & capacitance of a capacitor with power supply a

(0) 0 Reviews 0 Orders 0 Wish listed

₹8,000.00

Quantity :
Total price :
  (Tax : )

This trainer is designed for the experimental determination of both the resistance (leakage or ESR) and capacitance of a capacitor using practical methods. The setup allows learners to analyze real-world capacitor behavior, including phase angle, voltage-current relationships, and losses, by using 4 independent digital meters for precise monitoring of voltage, current, and phase variations.

Equipped with a constant regulated (C.R.) power supply, the system simulates realistic conditions under which capacitor parameters can be accurately determined. This model is ideal for physics and electrical engineering labs focusing on AC circuit analysis and component characterization.

Key Features:

  • Determines resistance and capacitance of a capacitor

  • Includes 4 digital meters for accurate multi-parameter measurement

  • Built-in C.R. power supply

  • Real-time analysis of capacitor behavior in AC circuits

  • Suitable for electrical, electronics, and physics labs

  • Clear front panel with well-labeled test points
