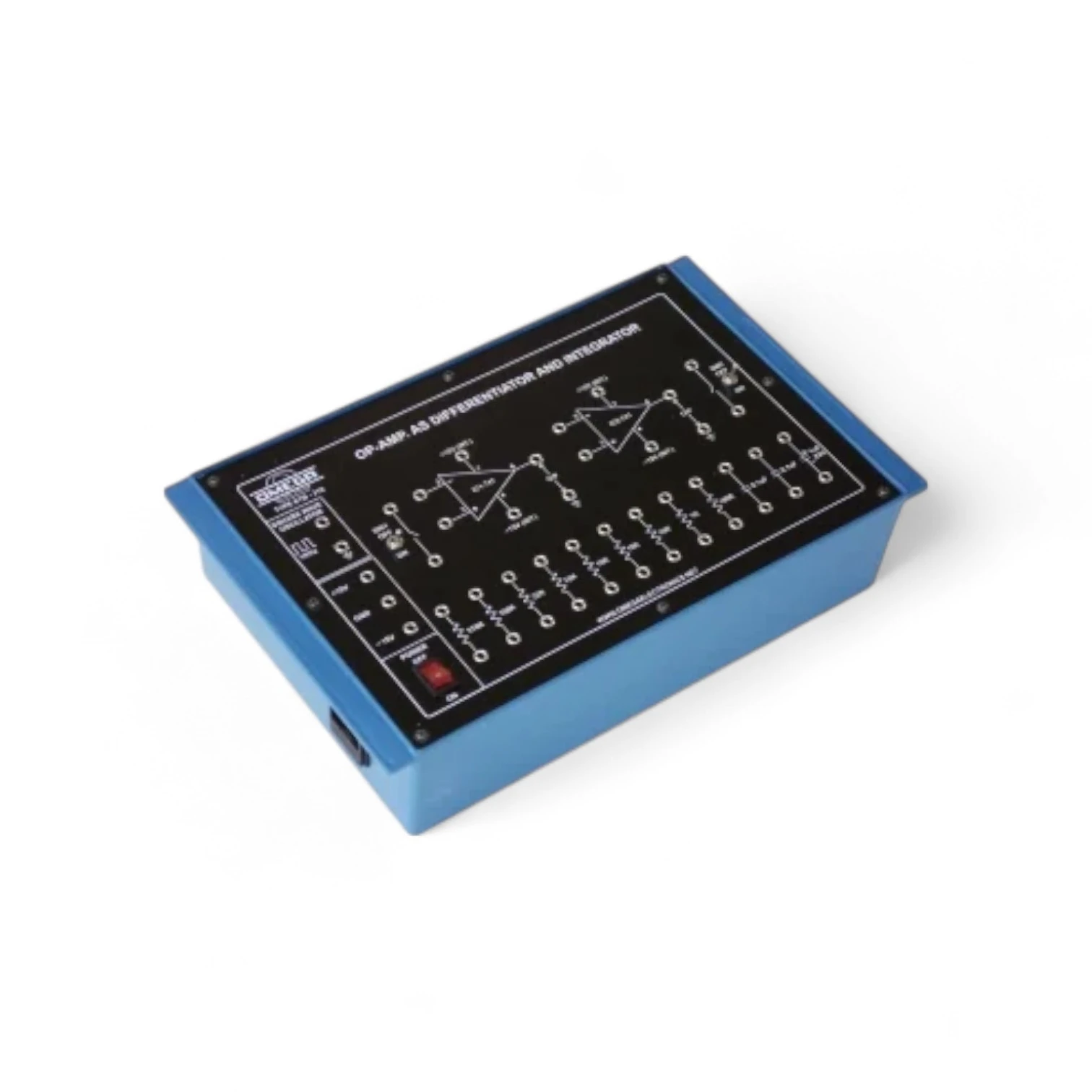

ETB-216 (Model Op-Amp Differentiator and Integrator with Power Supply)

(0) 0 Reviews 0 Orders 0 Wish listed

₹10,000.00

Quantity :
Total price :
  (Tax : )

The ETB-216 is a compact, easy-to-use educational trainer that allows students to study and analyze differentiator and integrator circuits using an operational amplifier (Op-Amp). This model is designed for hands-on experimentation in analog electronics and control systems laboratories.

The trainer features built-in dual power supplies, resistive-capacitive networks, and pre-wired configurations using standard Op-Amp ICs (like UA741), making it suitable for quick setup and direct waveform observation. Students can understand how input waveforms (e.g., square or sine) are mathematically processed by Op-Amps into their derivatives and integrals.

Key Features:

  • Study of Op-Amp as Differentiator and Integrator

  • Built-in dual ±12V power supply

  • Pre-configured test points and clear circuit layout

  • Uses standard Op-Amp ICs (e.g., UA741)

  • Ideal for analog signal processing education

  • Supports input signal experimentation with function generators

Applications in Learning:

  • Analog computation

  • Signal processing

  • Control systems fundamentals

  • Time-domain response analysis
