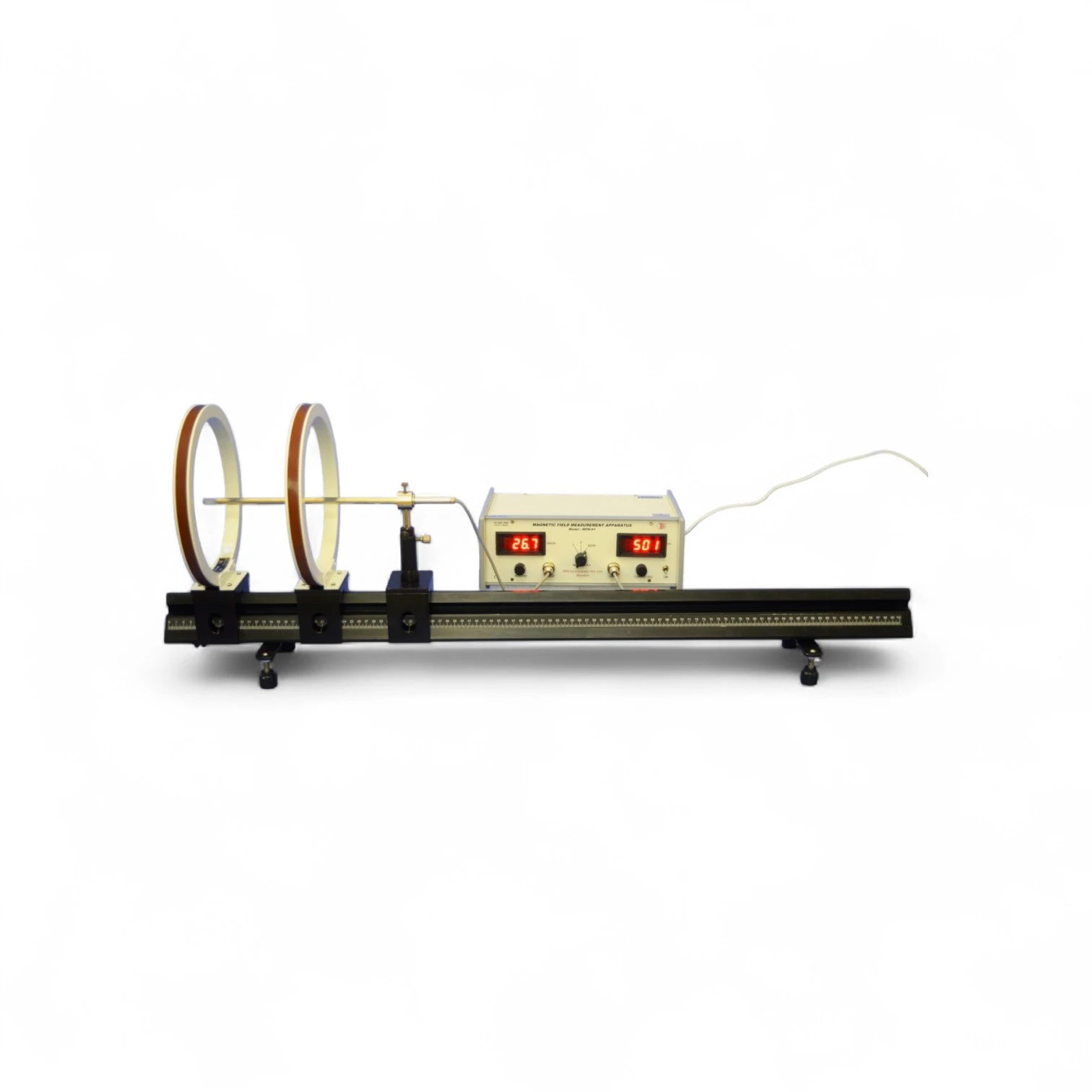

The MFM‑01 apparatus is designed to experimentally verify Biot–Savart’s Law by measuring the magnetic field generated by a current-carrying conductor. The setup enables students to investigate the relationship between magnetic field strength, distance from the conductor, and current magnitude, thus enhancing their understanding of classical electromagnetism.

The experiment typically uses a circular coil, with a Gaussmeter sensor placed along the axis of the coil to measure the magnetic field at various points. A regulated current source powers the coil, and the readings are recorded to compare with theoretical predictions from Biot–Savart’s Law.

This setup is widely used in physics labs to reinforce the concept of magnetic field generation by electric currents and is suitable for both undergraduate and postgraduate levels.

Key Features

• Demonstrates Biot–Savart’s Law practically

• Includes a circular current-carrying coil

• Compatible with digital Gaussmeters for precise measurement

• Allows plotting of B vs distance and B vs current curves

• Includes regulated DC power supply and measurement guide

• Safe, easy-to-use design for classroom environments

• Durable and portable — ideal for repeated laboratory use

Applications

• Verification of Biot–Savart’s Law

• Measurement of magnetic field strength due to a circular loop

• Study of the axial magnetic field distribution

• Educational tool in electromagnetic theory courses

• Useful in physics and electrical engineering labs
