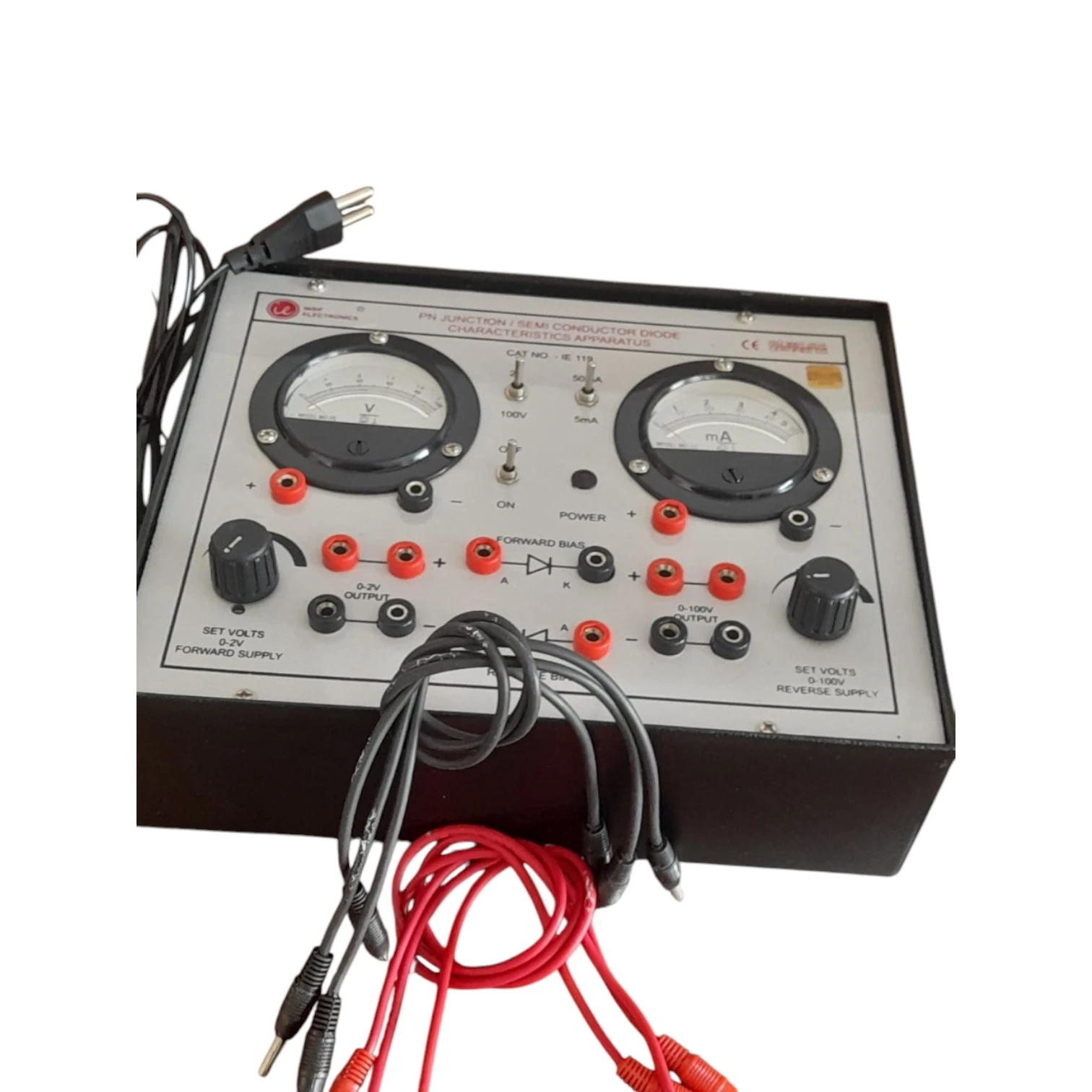

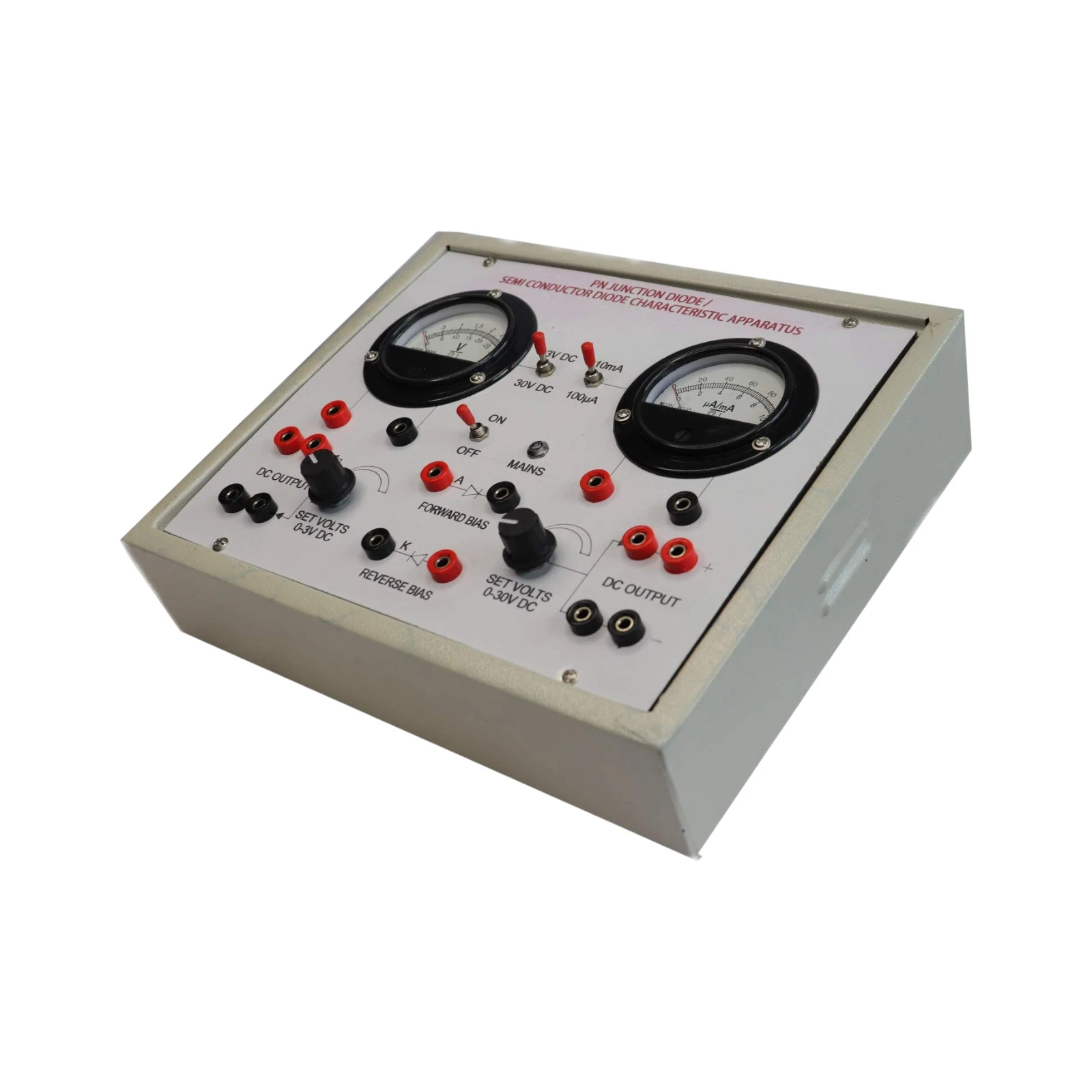

P-N junction diode set up

(0) 0 Reviews 0 Orders 0 Wish listed

₹4,600.00

Quantity :
Total price :
  (Tax : )

⚡ P-N Junction Diode – Key Features

  • Unidirectional Current Flow: Allows electric current to pass primarily in one direction, functioning as a rectifier in circuits.

  • Depletion Region Formation: At the junction of p-type and n-type semiconductors, a depletion region forms, acting as a barrier to charge carrier movement.

  • Biasing Conditions:

    • Forward Bias: Connecting the p-type to the positive terminal and n-type to the negative terminal reduces the depletion region, allowing current flow.

    • Reverse Bias: Connecting the p-type to the negative terminal and n-type to the positive terminal widens the depletion region, inhibiting current flow.

  • Threshold Voltage: Requires a minimum voltage (approximately 0.7V for silicon diodes) to overcome the potential barrier and conduct in forward bias.

  • Applications: Utilized in rectifiers, voltage regulators, signal demodulators, and as protection devices against voltage spikes.
