Harmonic & Flicker Compliance Test System (3kVA–100kVA)

This system provides a comprehensive solution for testing electrical and electronic equipment against international EMC standards, including IEC61000-3-2, IEC61000-3-3, IEC61000-3-11, and IEC61000-3-12. Designed for both single-phase (3kVA / 6kVA) and three-phase (18kVA / 30kVA / 67kVA / 100kVA) setups, the system includes a low-distortion programmable AC source integrated with a precision harmonic and flicker analyzer.

The setup is ideal for certification laboratories, R&D departments, and quality control, providing accurate, repeatable, and standards-compliant measurements of harmonic emissions and voltage fluctuations (flicker) in electrical devices.

Key Features:

• Wide Power Range: 3kVA & 6kVA (Single-phase), 18kVA to 100kVA (Three-phase)

• Compliance: Fully meets IEC61000-3-2, 3-3, 3-11, 3-12

• Applications: For lighting equipment, household appliances, EVs, and industrial systems

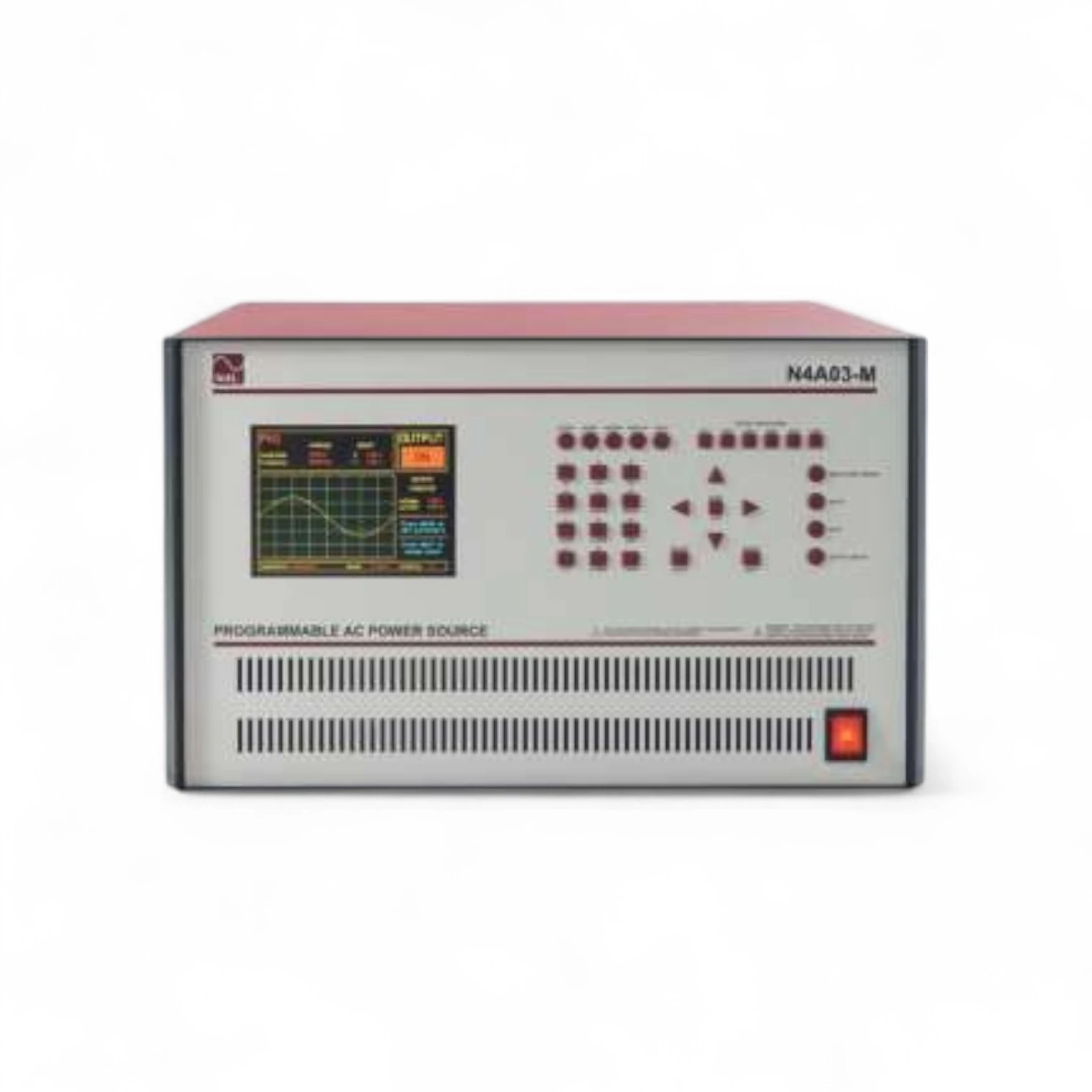

• Programmable AC Source: Precision voltage and frequency control with low THD

• High Accuracy Analyzer: Captures harmonics, interharmonics, and flicker phenomena

• Automated Testing: Includes software for easy reporting and compliance verification
