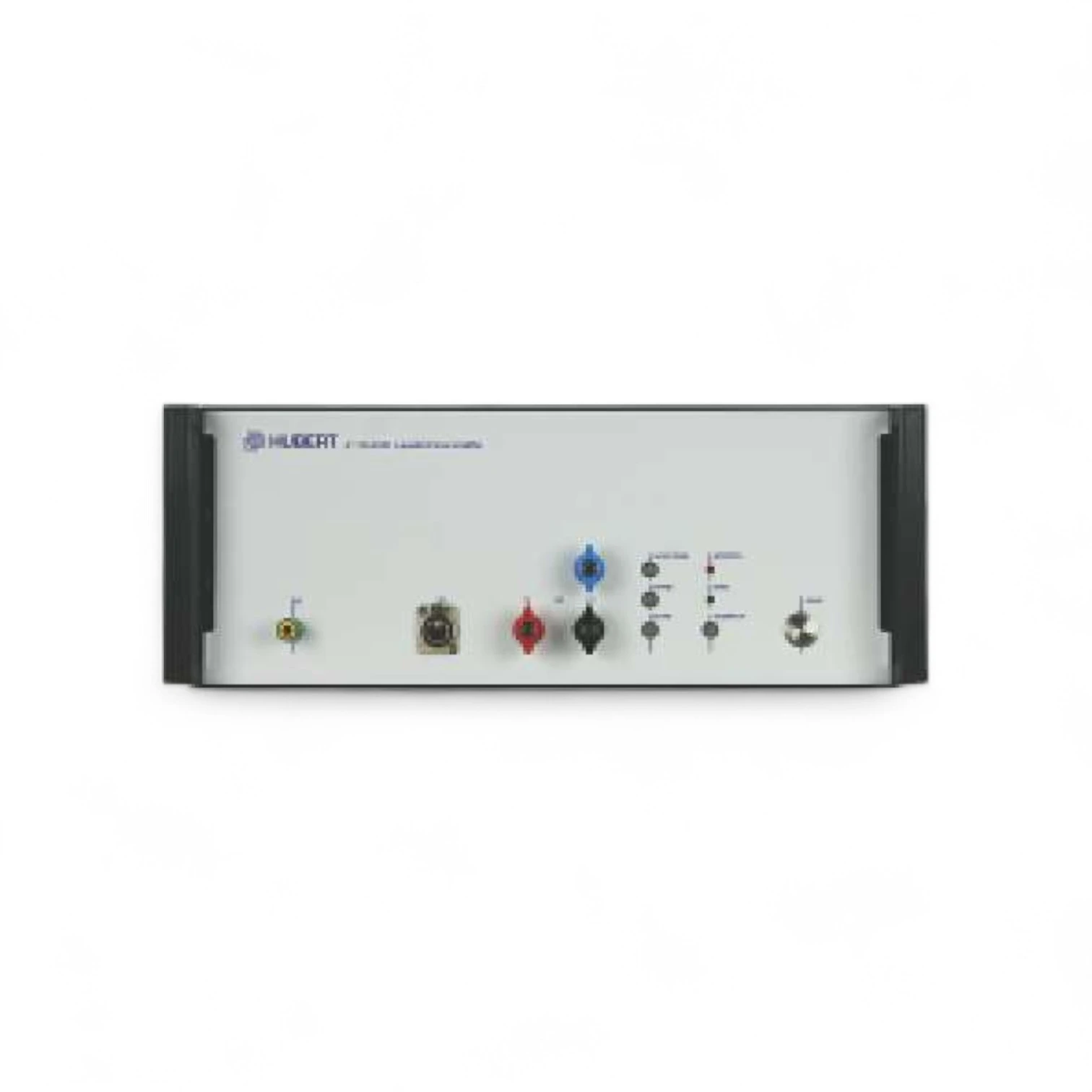

4-Quadrant Voltage & Current Amplifier – DC to 1MHz, ±75V, ±40A

This 4-Quadrant Voltage & Current Amplifier is a high-performance linear amplifier designed for applications requiring precise sourcing and sinking of voltage and current. It operates in all four quadrants, supporting both positive and negative voltage and current outputs, ideal for reactive and dynamic loads.

With a frequency range from DC to 1MHz, output of ±75V peak, ±40A current, and power capacity of up to 1200W sourcing and 800W sinking, it is suited for demanding applications like piezoelectric actuator testing, MEMS, high-speed power device characterization, and EMC testing.

Key Features:

Frequency Range: DC to 1 MHz
Voltage Output: ±75V peak
Current Output: ±40A
Power Output: Up to 1200W (source), 800W (sink)
Four-Quadrant Operation: Source & sink both voltage and current
High Slew Rate: 100V/µs
Low Noise & Distortion
Wideband Response for High-Speed Applications
Applications: Power electronics, inductive load simulation, motor driver testing, EMC, and sensor simulation
