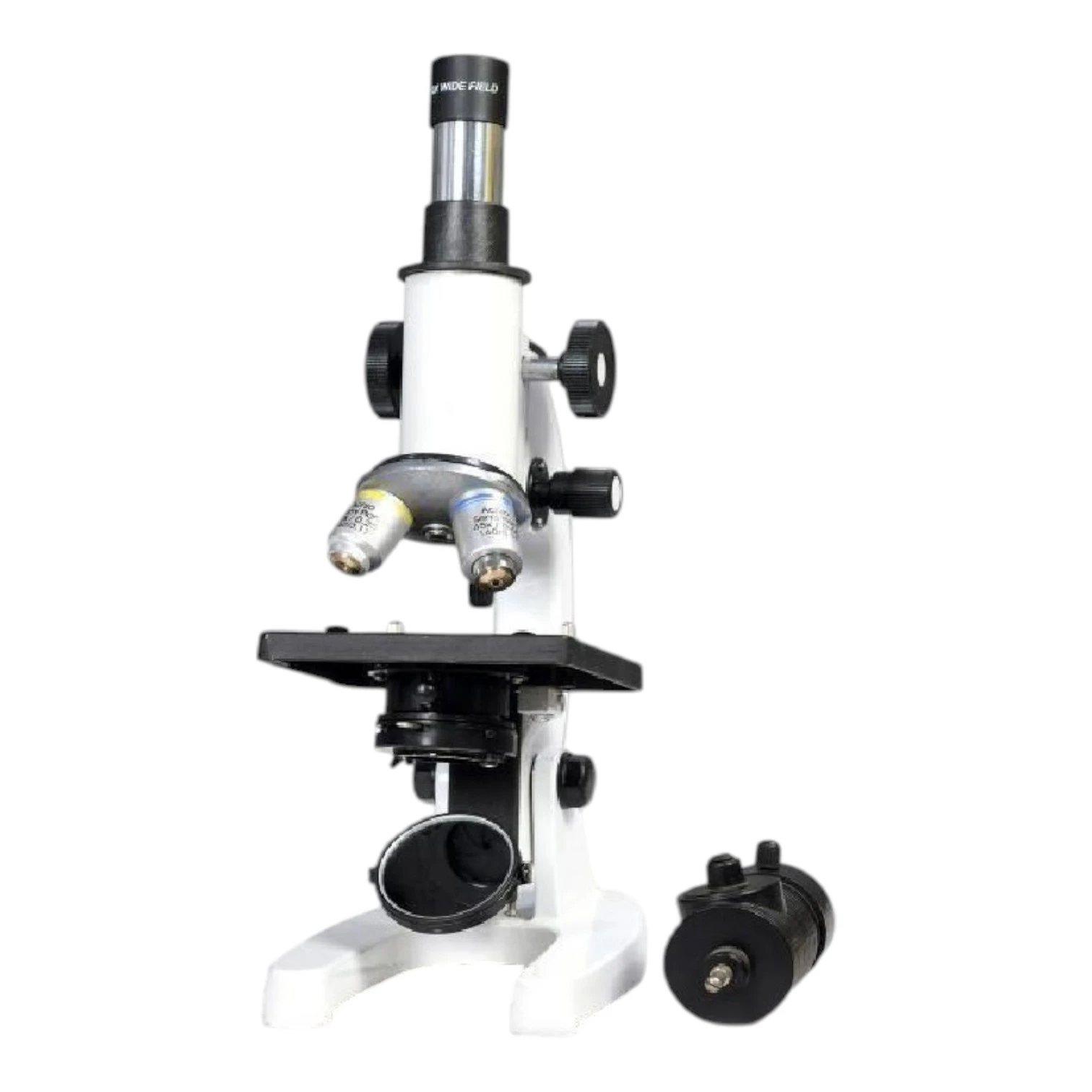

TECHNICAL SPECIFICATION
✓ EYE-PIECE Extra wide field 10X
Eye-piece specially designed for ultra series
Microscope. ✓ NOSEPIECE Triple
nosepiece with click stops. ✓ STAGE High quality SS
stage clips provided to hold the slide.
✓ FOCUSING
By vertical movement
of the observation tube, with coarse adjustment using rack-pinion movement and
motion by screw level mechanism. ✓ CONDENSER Abbe condenser
having numerical aperture of 1.25 with iris diaphragm and swing out filter
holder. This condenser unit incorporates high efficiency optical system for
optimum utilization of light. ✓ LIGHT
SOURCE Arc-reflector
set for using natural light to study the slide. ✓ OBJECTIVE Achromatic 10X
and 45X. ✓ PACKING In mould
Styrofoam box or wooden storing cabinet with lock and key (on demand). ✓ ALSO
INCLUDED Vinyl dust cover, lens cleaning wipes, operating manual. |
