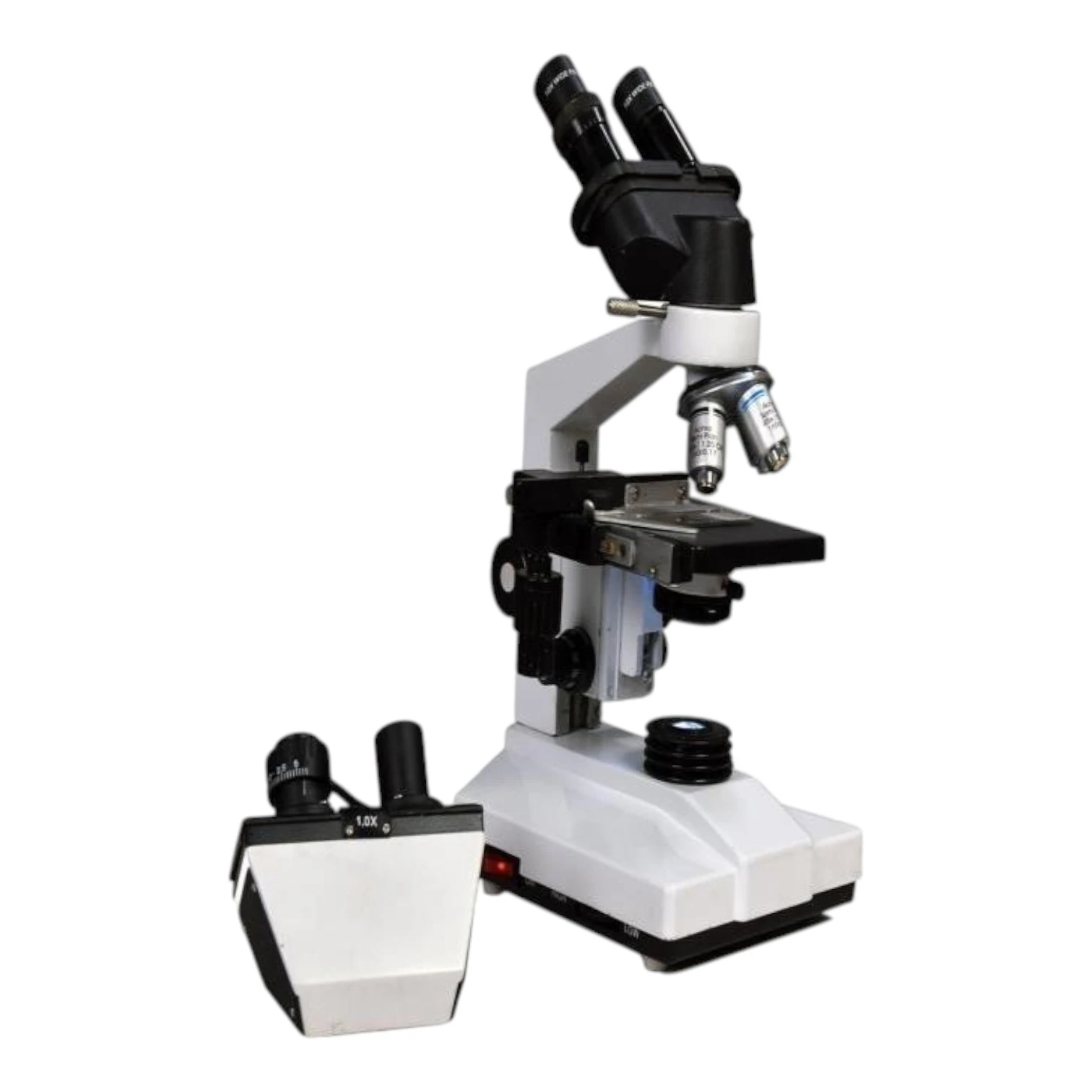

TECHNICAL SPECIFICATION

✓  BODY  Aluminium die cast Parts.

✓  OBSERVATION HEAD  Binocular head 45⁰ inclined 360⁰ rotatable.

✓  STAGE  Co-axial mechanical stage slides for frictionless and jerk free movement

✓  CONDENSER  Moveable condenser (NA 1.2) with IRIS diaphragm and filter holder on rack and pinion.

✓  FOCUSING  Separate coarse and fine focusing adjustment.

✓  OBJECTIVES  Achromatic objectives 5X, 10X, 45X (SL) and (SL) OIL immersion 100X.

✓  EYEPIECE  WF 10X pairs.

✓  NOSEPIECE  Quadruple Nosepiece.

✓  SAFETY DEVICE  Adjustment down stopper for preventing accidental damage.

✓  ILLUMINATION  Variable illumination control to sliders.   ✓ PACKAGING  Full moulded thermocol container.

OPTIONAL ACCESSOIRES

•      LED illumination with battery backup for uninterrupted research and learning.

•      Wooden box with lock and key.

•      Trinocular head

•      Din plan achromatic objectives 5X, 10X, 45X (SL) and 100X (SL) OIL.

•      LED illumination system.
