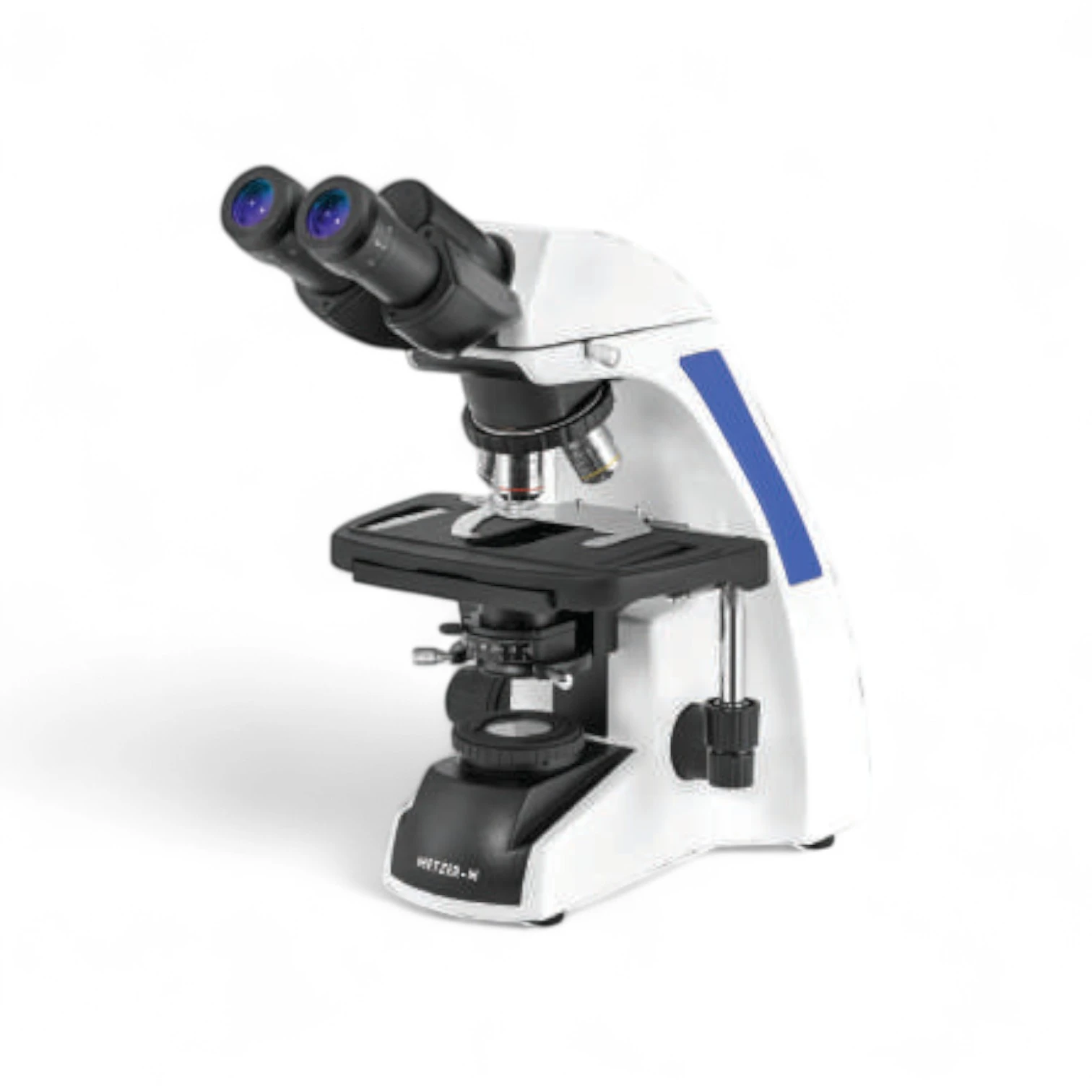

The Advanced Binocular Research Microscope ABTZ-5000 BM (EDGE) is a top-tier optical instrument designed for advanced research, medical diagnostics, and higher education laboratories. Equipped with infinity-corrected IOS plan achromatic objectives, it delivers sharp, high-contrast, and distortion-free images, ensuring precision in every observation.

Built with a Seidentopf binocular head, ergonomic focusing system, and a durable mechanical stage, the ABTZ-5000 BM (EDGE) provides comfort and reliability for extended laboratory use. Its ultra-bright 3W LED illumination system enhances clarity, making it ideal for detailed biological and clinical research.

Key Features:

• Magnification: 40x – 1000x

• Observation: Seidentopf binocular head, inclined 30°, 360° rotatable, interpupillary distance 48–75 mm, diopter adjustment (±5)

• Eyepieces: Extra wide-field 10x (paired), F.O.V. 20 mm, anti-fungal coated

• Objectives: Infinity-corrected IOS Plan Achromatic 4x, 10x, 40x (SL), 100x oil (SL), anti-fungal treated

• Stage: Double plate mechanical stage (140×132 mm) with low-positioned co-axial controls on ball-bearing guideways

• Focusing System: Co-axial coarse & fine adjustment with pre-focusing lever, tension adjustment ring, and precision fine division (0.002 mm)

• Nosepiece: Reverse angle quadruple nosepiece on ball bearings, slot for polarizer

• Condenser: Abbe condenser N.A. 1.25 with adjustable iris diaphragm

• Illumination: Ultra-bright 3W LED lamp with brightness control knob

• Mechanical Build: Heavy-duty, stable, and ergonomically designed for professional use

Applications:

• Advanced medical & biological research

• Clinical diagnostics and pathology labs

• Microbiology, cytology, and histology studies

• University-level education and research training

• Professional laboratories requiring infinity-corrected precision optics
