Characteristics of Semiconductors Diodes (D-1)

(0) 0 Reviews 0 Orders 0 Wish listed

₹3,800.00

Quantity :
Total price :
  (Tax : )

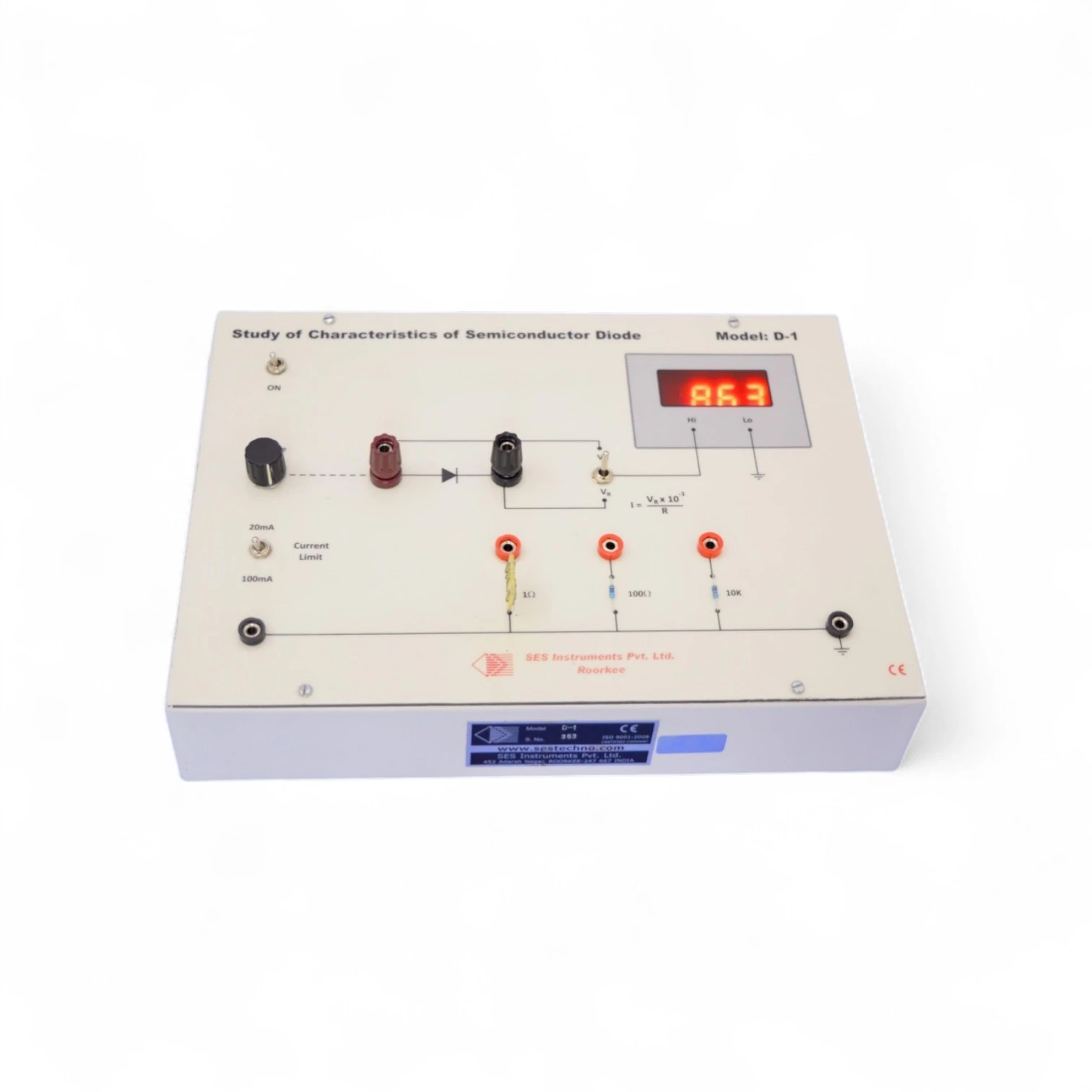

The Characteristics of Semiconductor Diodes (D-1) trainer kit is a practical educational system designed to help students investigate and understand the V-I characteristics of various types of semiconductor diodes. This includes studying their behavior in forward bias and reverse bias conditions through real-time observation and measurement.

With this kit, learners can explore:

  • Forward and Reverse Bias characteristics

  • Knee voltage determination

  • Breakdown behavior in Zener diodes

  • Dynamic and static resistance calculation

  • Effect of temperature and load

The D-1 model typically includes:

  • Silicon diode

  • Germanium diode

  • Zener diode

  • LED

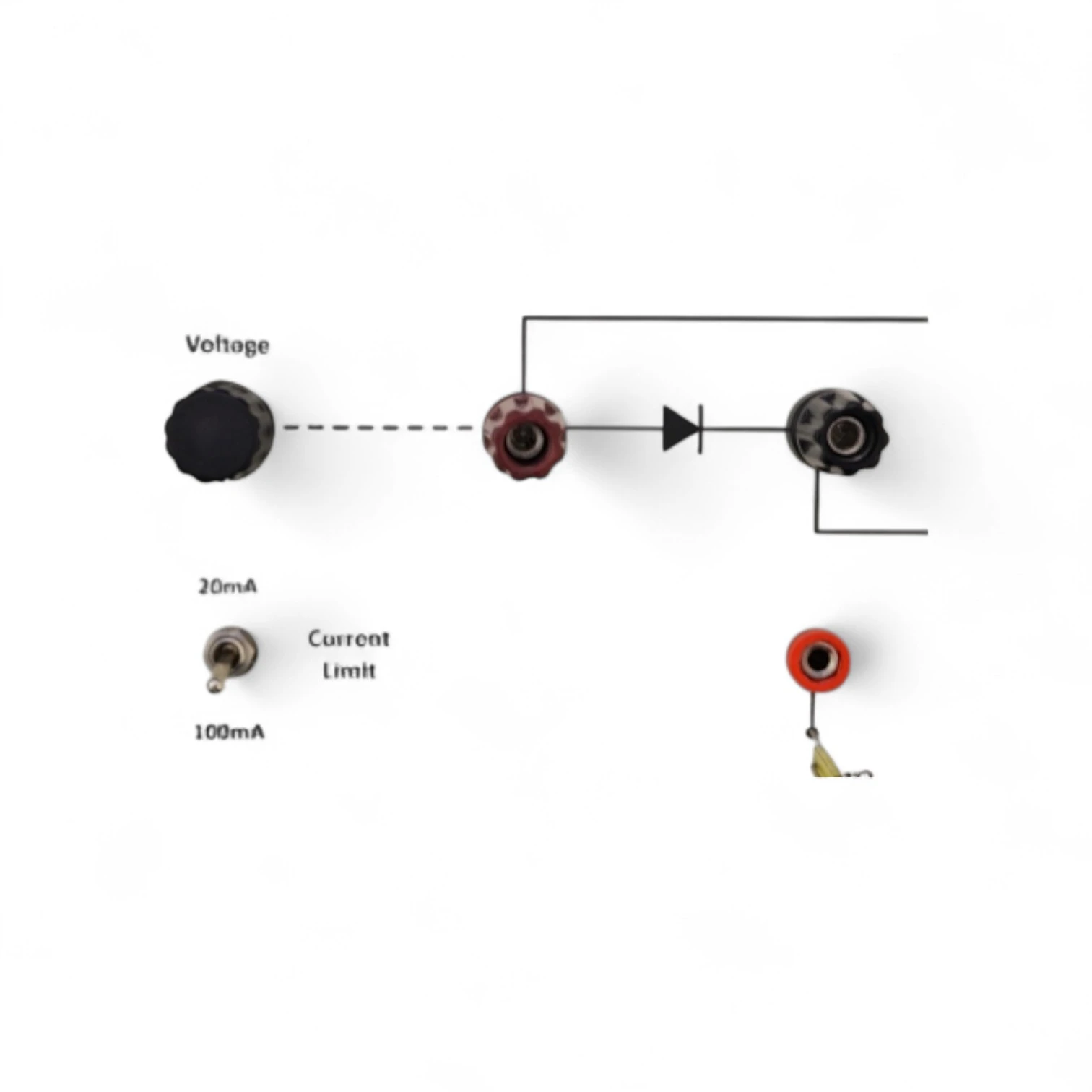

  • Built-in variable DC power supply

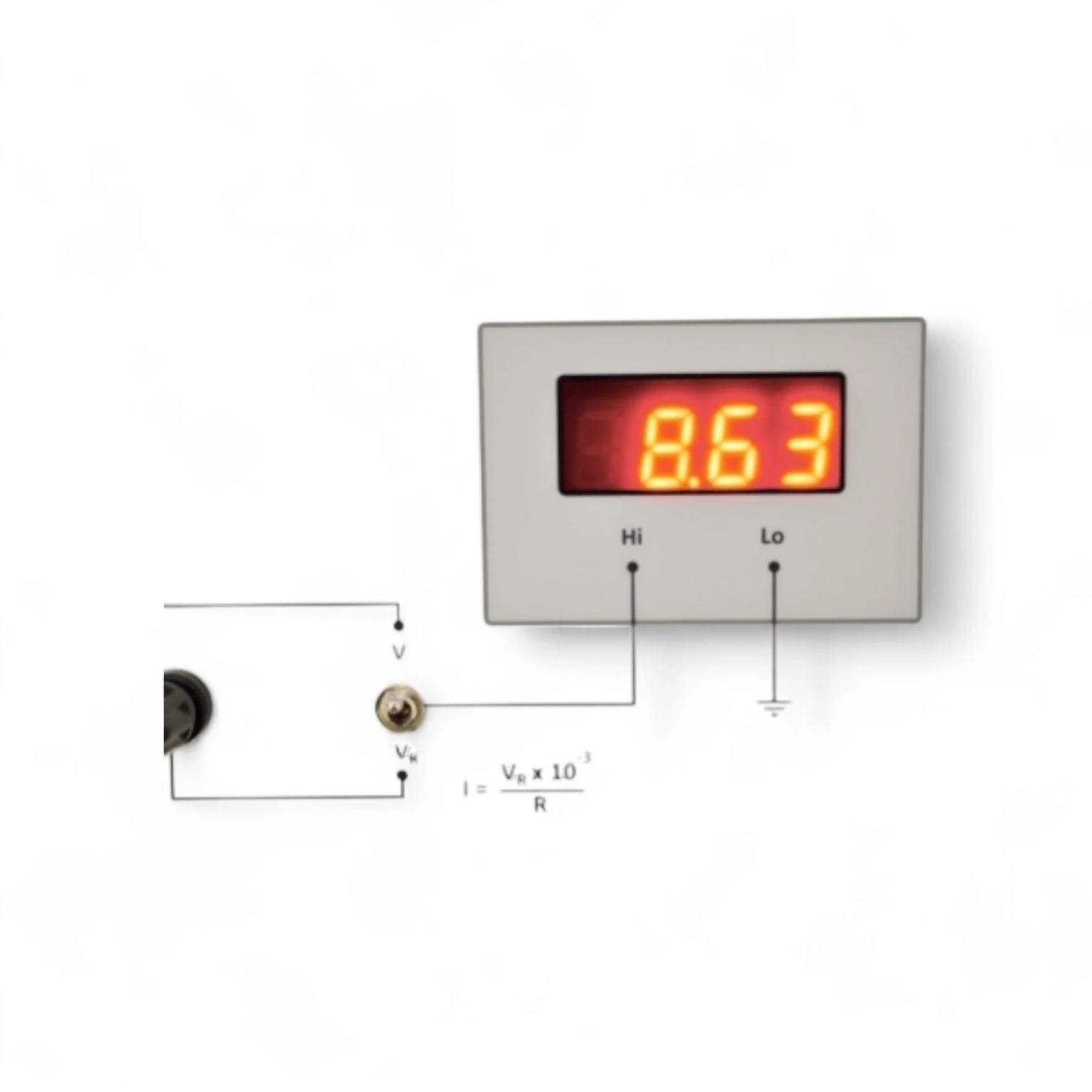

  • Digital/analog meters for voltage and current

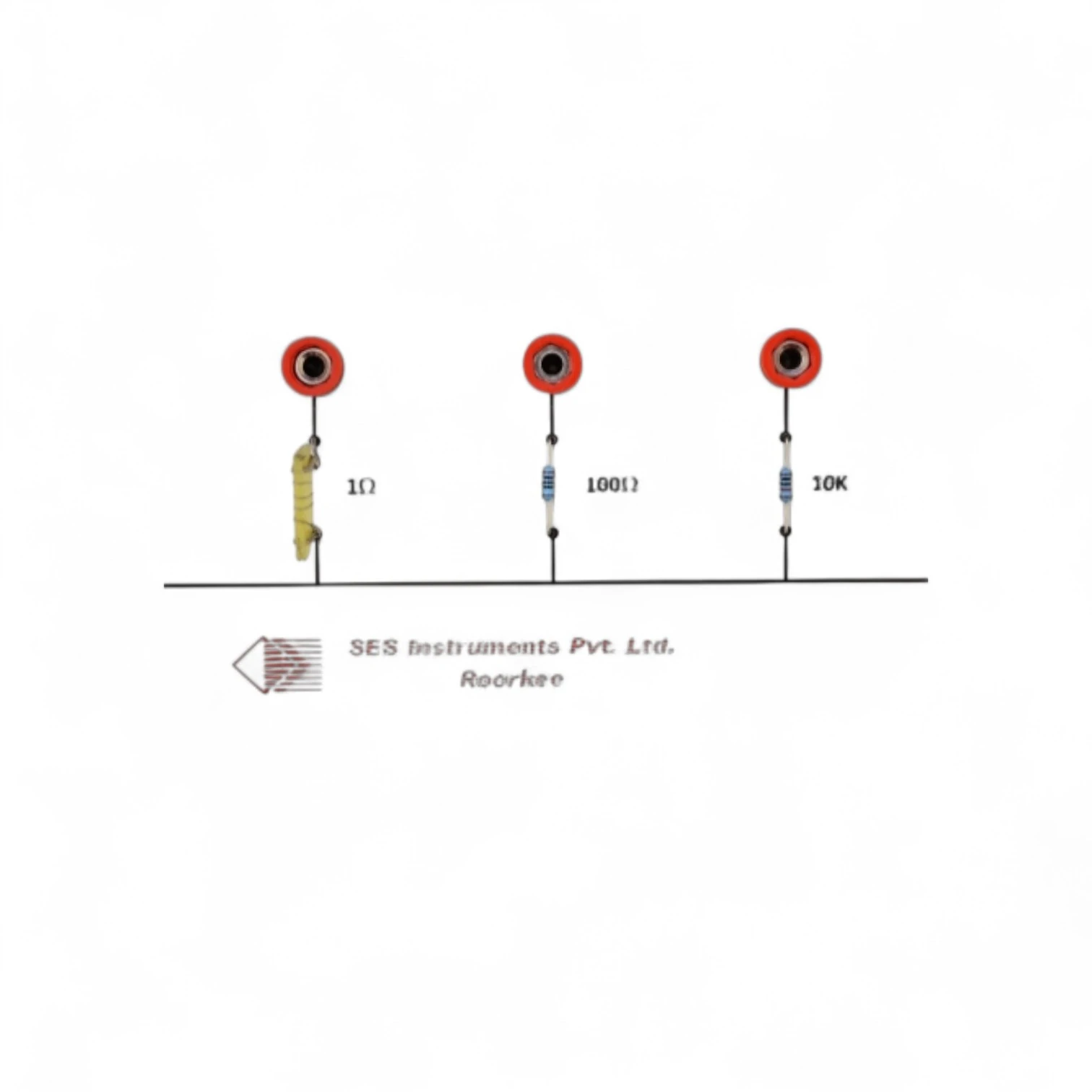

  • Clearly labeled circuit diagram and test points

This trainer is highly suitable for basic electronics, semiconductor device labs, and foundation-level engineering courses, making diode behavior tangible and easy to analyze.
