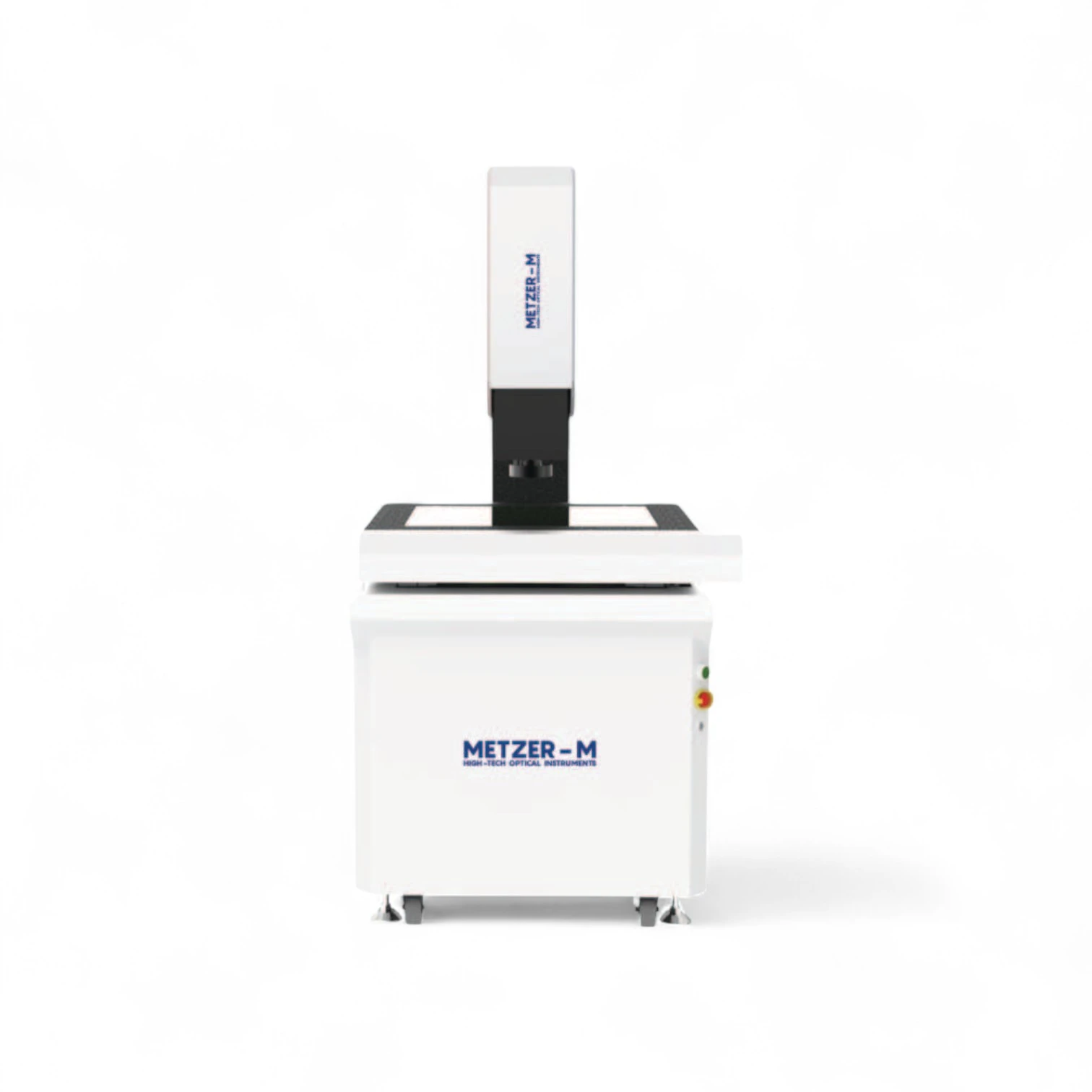

The METZ VISION STAR PRO CNC Vision Measuring Machine is a state-of-the-art non-contact optical measuring system designed for precision dimensional inspection and industrial metrology. Equipped with a high-resolution digital camera, advanced zoom optics, and a CNC-controlled motorized stage, it offers automated, fast, and highly accurate measurements for complex components.

Built for production, R&D, and quality control, the STAR PRO delivers 2D/3D measurement, geometric tolerance analysis, profile scanning, and contour evaluation with excellent repeatability. Its intelligent software integrates automated edge detection, pattern recognition, and statistical analysis, making it an indispensable tool for aerospace, automotive, electronics, and medical device industries.

🔑 Key Features

• CNC Automation: Fully motorized XY & Z axes with programmable CNC control for automated measurement

• Measurement Technology: Non-contact optical vision system with high-resolution digital camera & precision zoom optics

• Stage: CNC-controlled granite base stage with micron-level accuracy and smooth motion control

• Z-Axis Measurement: High-accuracy focusing for depth and height measurement

• Software: Advanced metrology software with auto-edge detection, GD&T analysis, SPC, and automated reporting

• Functions:

  • 2D & 3D dimensional measurement

  • Profile and contour scanning

  • Geometric tolerance evaluation

  • Automated batch inspection with CNC programming

• Reporting: Professional statistical reports, Excel/PDF export, and database connectivity

• Applications: Precision engineering, tool & die, automotive, aerospace, electronics, medical device QC, research labs
