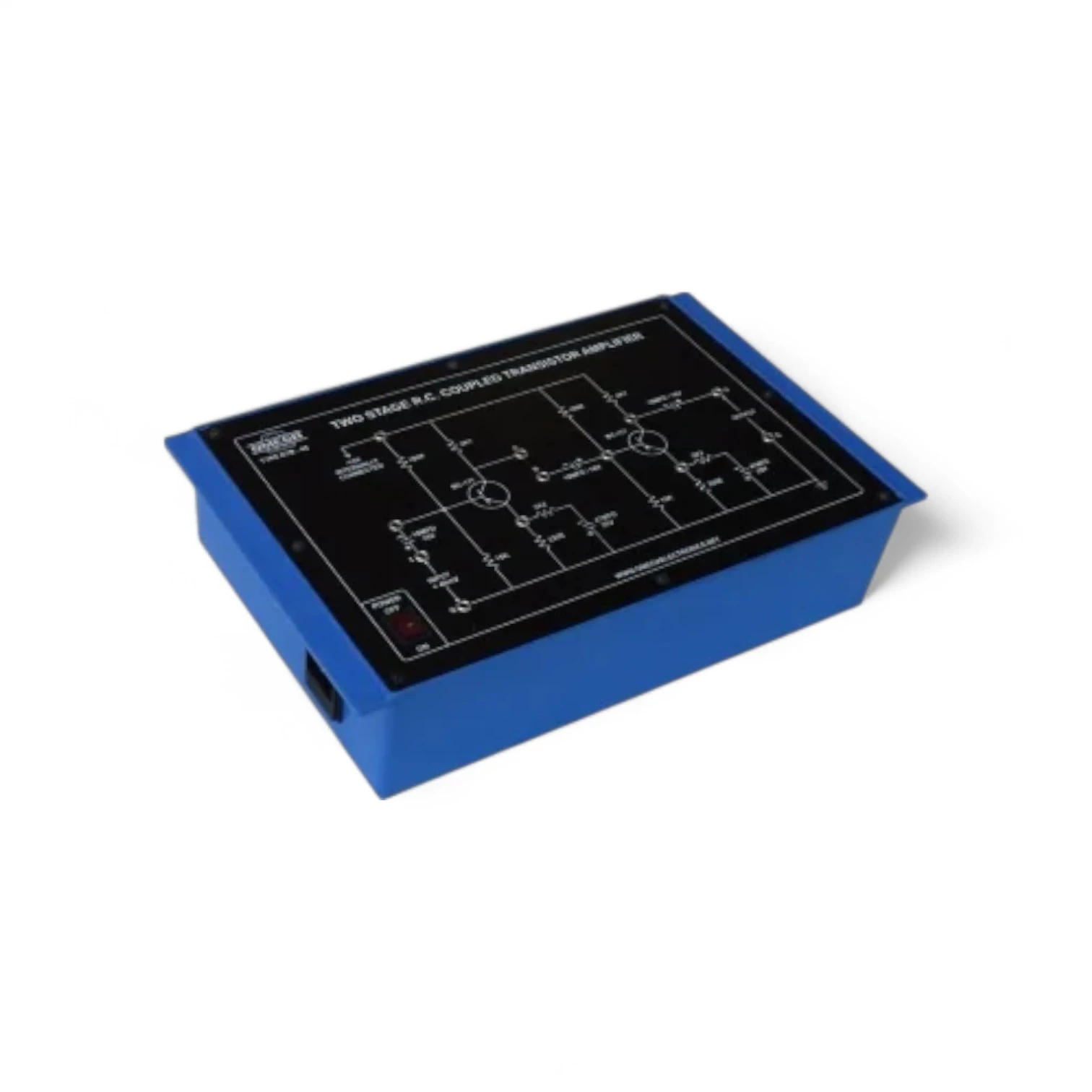

ETB-045 (Model Two Stage R-C Coupled Transistor Amplifier with power supply)

(0) 0 Reviews 0 Orders 0 Wish listed

₹14,500.00

Quantity :
Total price :
  (Tax : )

ETB-045 – Two Stage R-C Coupled Transistor Amplifier with Power Supply is a hands-on educational trainer designed to study the performance of a two-stage transistor amplifier using resistor-capacitor (RC) coupling. This configuration is widely used in analog electronics for signal amplification with good frequency response. The trainer helps students understand cascading effects, gain calculations, bandwidth, and signal phase shifts across stages. With a built-in regulated power supply and clearly labeled test points, it is ideal for circuit analysis and waveform observation in academic labs.

Key Features:

  • Demonstrates the operation of a two-stage RC coupled transistor amplifier

  • Enables study of voltage gain, bandwidth, frequency response, and phase shift

  • Built-in regulated power supply for independent lab operation

  • Test points provided for waveform measurement and analysis

  • Suitable for analog electronics, communication, and engineering labs

  • Helps understand multistage amplifier design and performance parameters
