Measurement of power & power factor of L-R Circuits with power supply and 4 mete

(0) 0 Reviews 0 Orders 0 Wish listed

₹35,000.00

Quantity :
Total price :
  (Tax : )

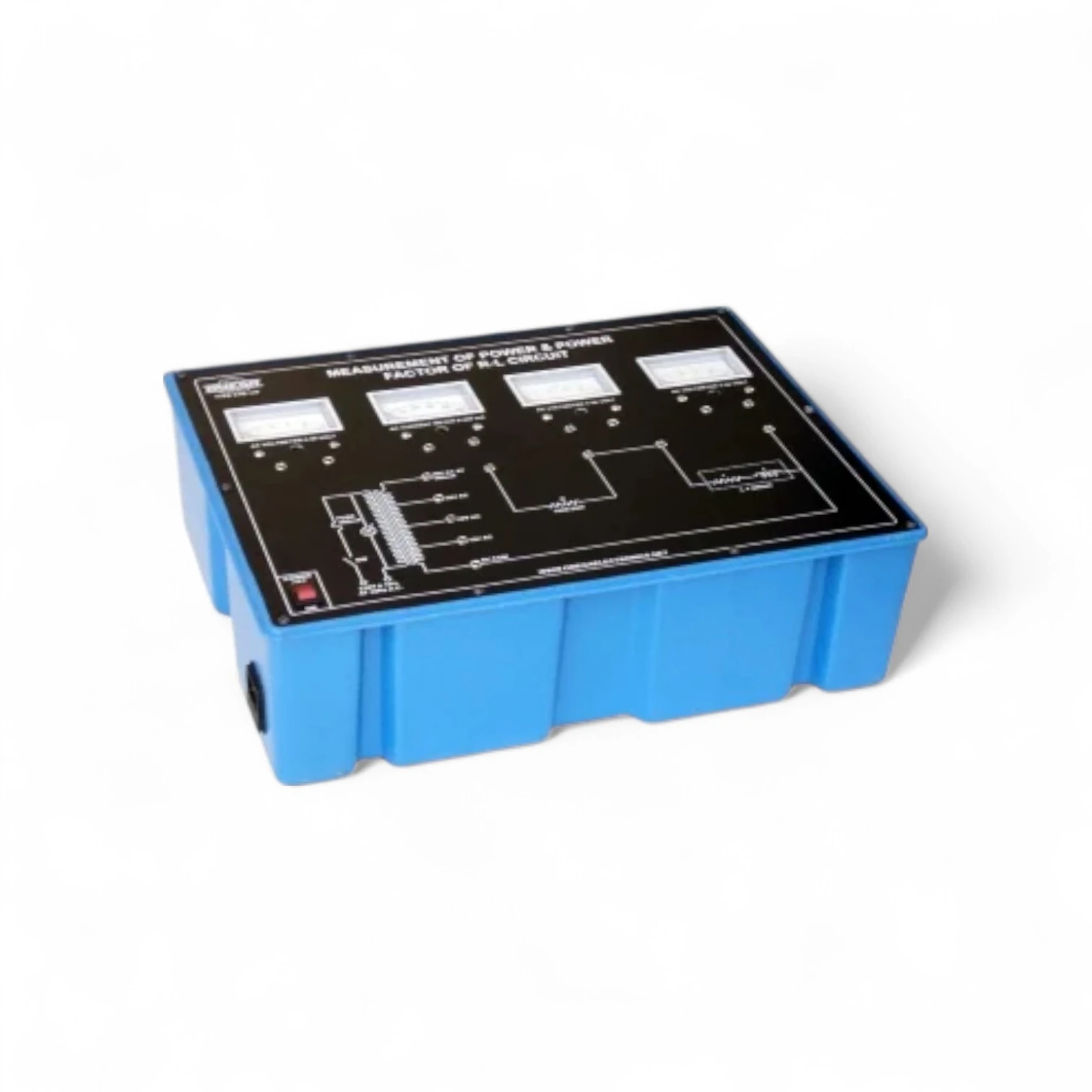

This educational trainer is designed for the Measurement of Power and Power Factor of L-R Circuits, providing an in-depth study of inductive-resistive circuit behavior under AC conditions. The trainer includes an integrated power supply and 4 high-accuracy meters (typically voltmeter, ammeter, wattmeter, and power factor meter) to enable precise observation and analysis.

This setup allows students to understand real power, apparent power, reactive power, and calculate the power factor of a series L-R circuit. The equipment is ideal for foundational training in electrical engineering, especially in the domain of AC circuit analysis and power systems.

Key Features:

  • Demonstrates power and power factor measurement in L-R circuits

  • Built-in regulated AC power supply

  • Equipped with 4 measurement meters: Voltage, Current, Wattmeter, and PF Meter

  • Enables study of phase angle between voltage and current

  • Safe and user-friendly connections with clearly marked test points

  • Ideal for technical institutions and electrical engineering labs
