Comparative Study of Bridge Rectifier and Precision Rectifier (using OP-AMP) wit

(0) 0 Reviews 0 Orders 0 Wish listed

₹8,000.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

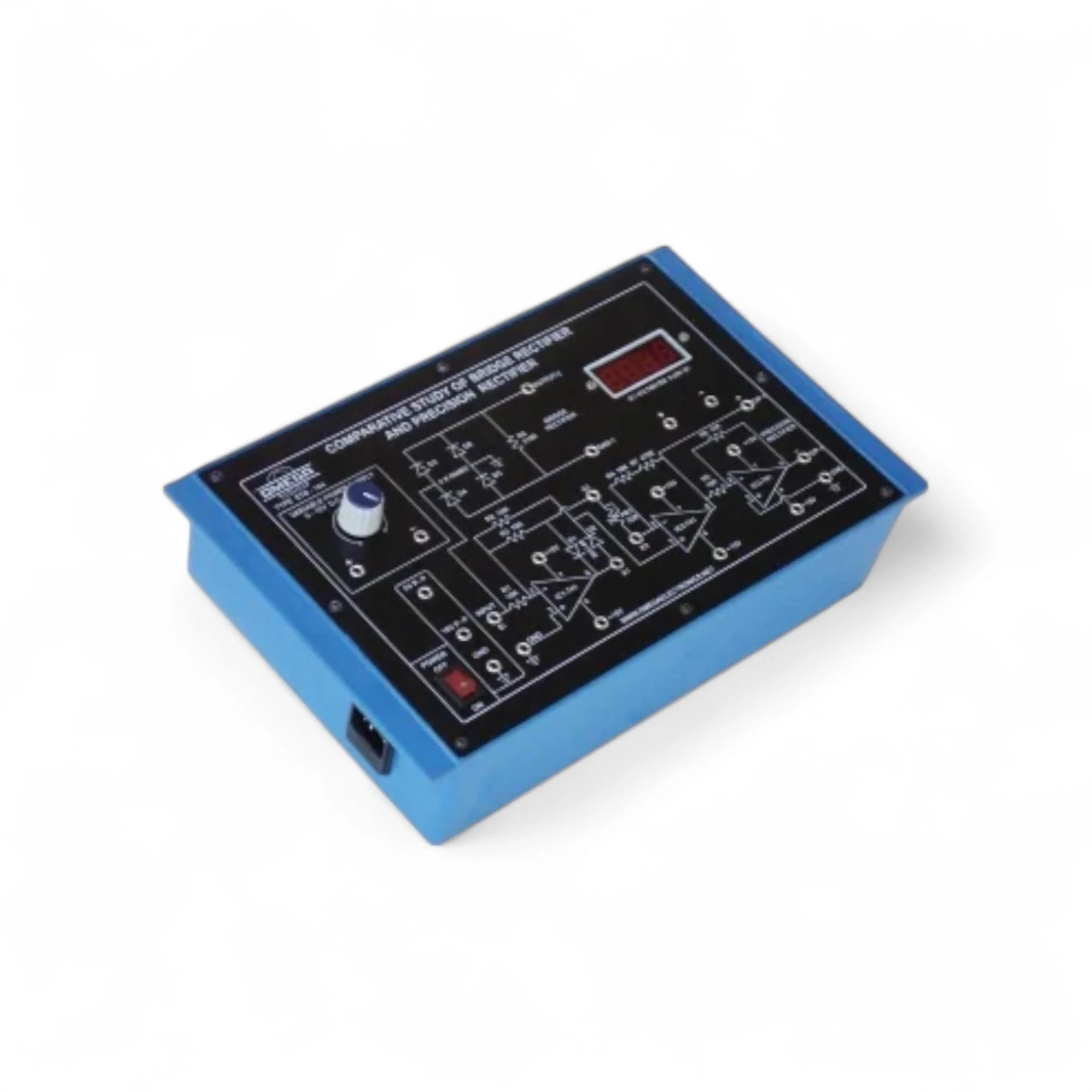

This trainer kit is designed for a comparative analysis of Bridge Rectifier and Precision Rectifier circuits, allowing learners to understand the functional and performance differences between conventional diode-based and OP-AMP-based rectification techniques. The model comes with an in-built regulated power supply and one meter to monitor voltage and waveform outputs.

Learners can observe how traditional bridge rectifiers suffer from diode threshold voltage drops and how precision rectifiers, implemented using operational amplifiers, overcome this limitation—making them ideal for rectifying even small AC signals. This hands-on system is perfect for analog electronics, instrumentation, and signal conditioning experiments.

Key Features:

Includes both Bridge Rectifier and Precision Rectifier (OP-AMP-based) circuits
Built-in regulated power supply and 1 meter for monitoring
Demonstrates the effect of diode threshold voltage
Highlights advantages of precision rectification in low-voltage applications
Useful in understanding rectification techniques in signal processing
Suitable for engineering colleges, polytechnics, and technical institutes
