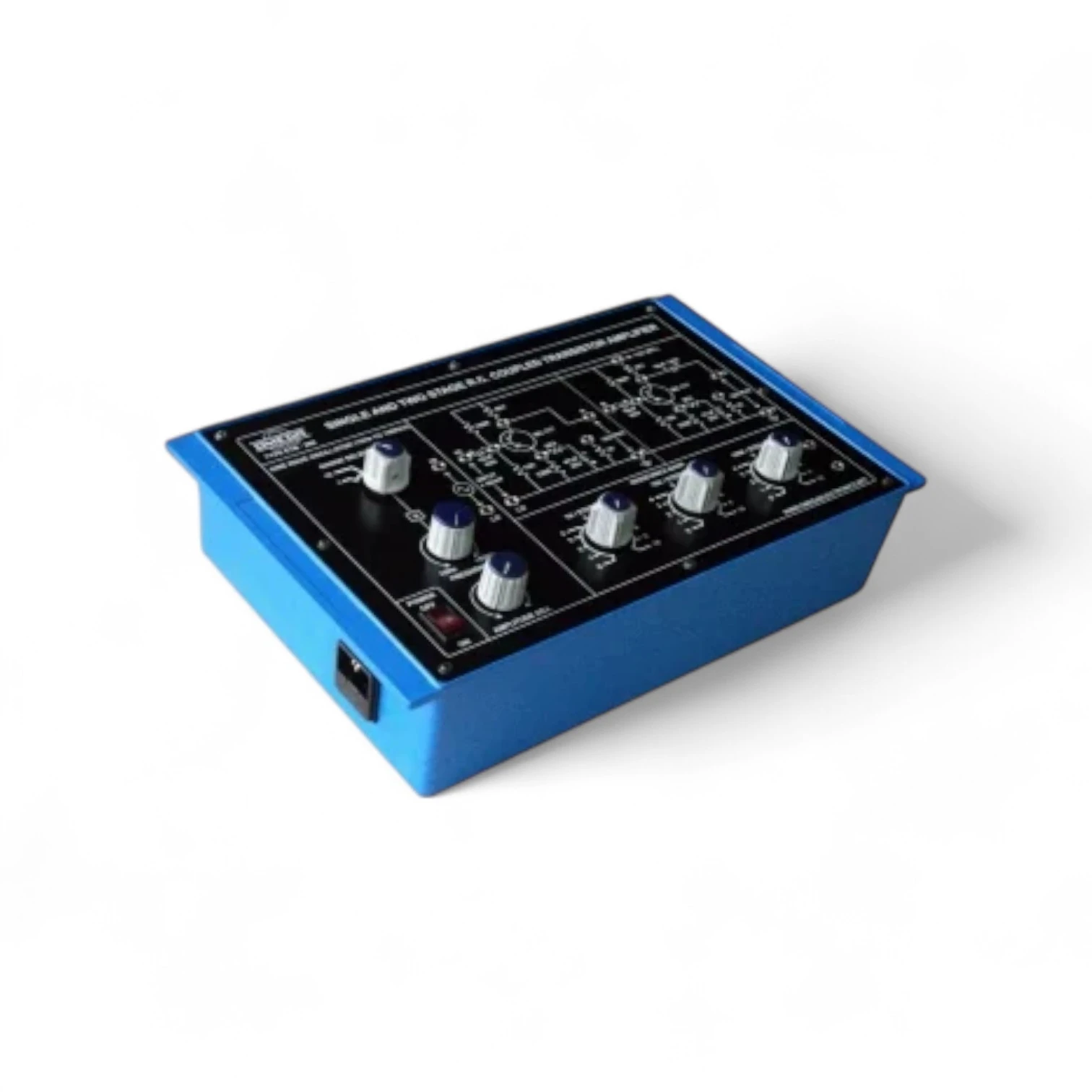

ETB-268 (Model Single and Two Stage R.C. Coupled Transistor Amplifier)

(0) 0 Reviews 0 Orders 0 Wish listed

₹10,500.00

Quantity :
Total price :
  (Tax : )

The ETB-268 is an essential electronics training kit for studying the working and characteristics of Single and Two Stage RC Coupled Transistor Amplifiers. This model allows learners to analyze voltage gain, input/output impedance, frequency response, and loading effects across stages.

It features built-in power supply, clearly labeled circuit blocks, and test points for waveform observation and signal measurement. Ideal for in-depth learning of small signal amplification, multistage amplifier design, and AC analysis using BJT.

Key Features:

  • Study of single and two-stage R.C. coupled amplifier circuits

  • Analysis of voltage gain, phase shift, and frequency response

  • Built-in regulated power supply

  • Test points provided for oscilloscope signal tracing

  • Helps understand multistage amplifier behavior and cascading effects

  • Ideal for electronics engineering students, technical colleges, and lab experimentation
