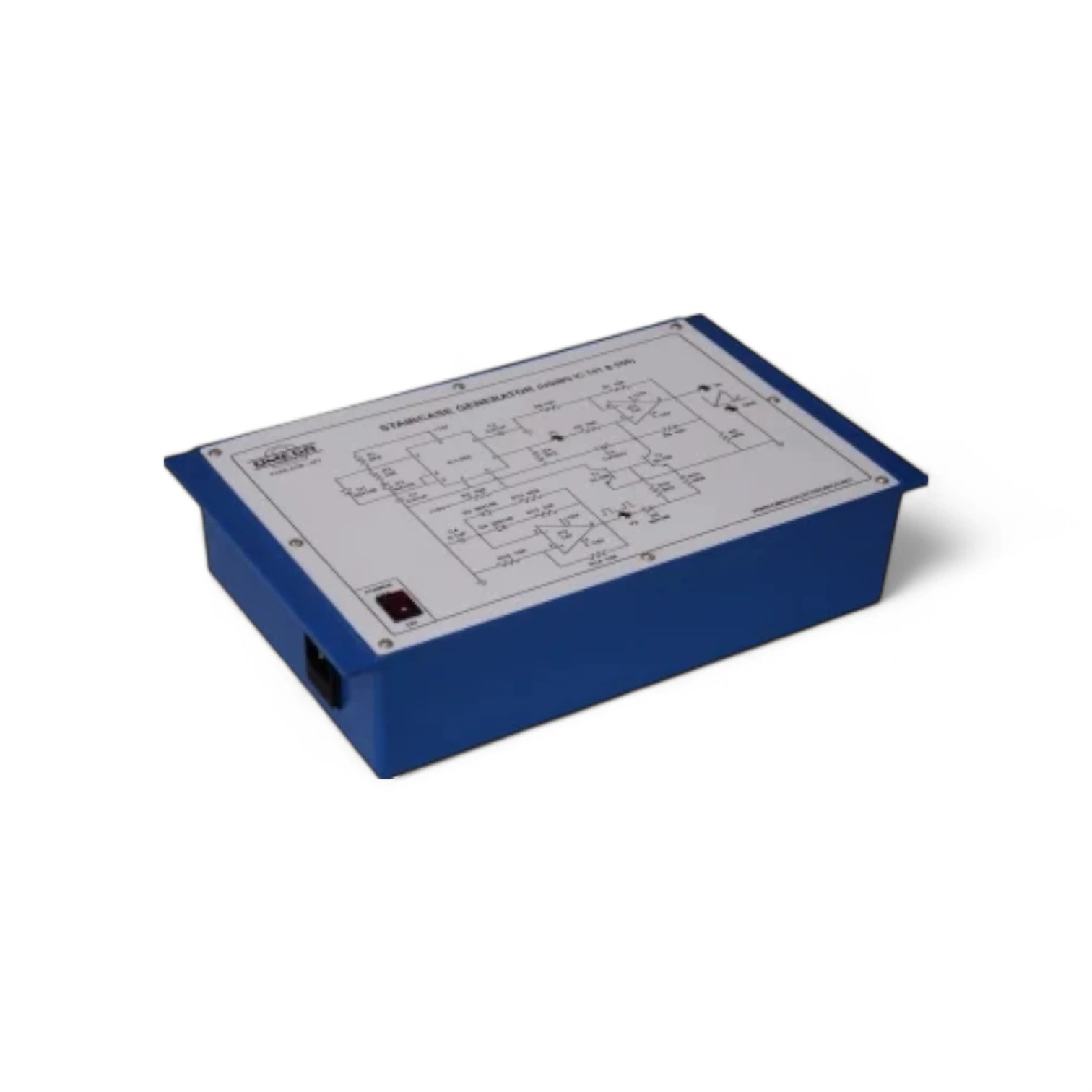

ETB-277 (Model Staircase generator (using ic 555 and opamp-741))

(0) 0 Reviews 0 Orders 0 Wish listed

₹12,000.00

Quantity :
Total price :
  (Tax : )

The ETB-277 Staircase Generator Trainer is designed to demonstrate the working of a staircase waveform generator using IC 555 timer and Op-Amp 741. This trainer is ideal for understanding waveform generation techniques in analog electronics and for applications in signal processing. The circuit generates a step-wise increasing or decreasing voltage waveform, offering clear insight into timing and integration principles.

This compact and user-friendly trainer is perfect for electronics engineering students to perform hands-on experiments related to waveform synthesis.

Key Features

  • Demonstrates step waveform generation

  • Built using IC 555 timer as clock pulse generator

  • Op-Amp 741 used for signal processing

  • Built-in regulated power supply

  • Easily accessible test points

  • Educational tool for analog and signal generation labs.

No review given yet!

Fast Delivery all across the country
Safe Payment
7 Days Return Policy
100% Authentic Products

Omega Electronics

Vendor info
0 Reviews
252 Products
Chat with vendor

More from the store

ETB-001 (Model Conventional D.C. Power Supply (V.V))

₹11,900.00

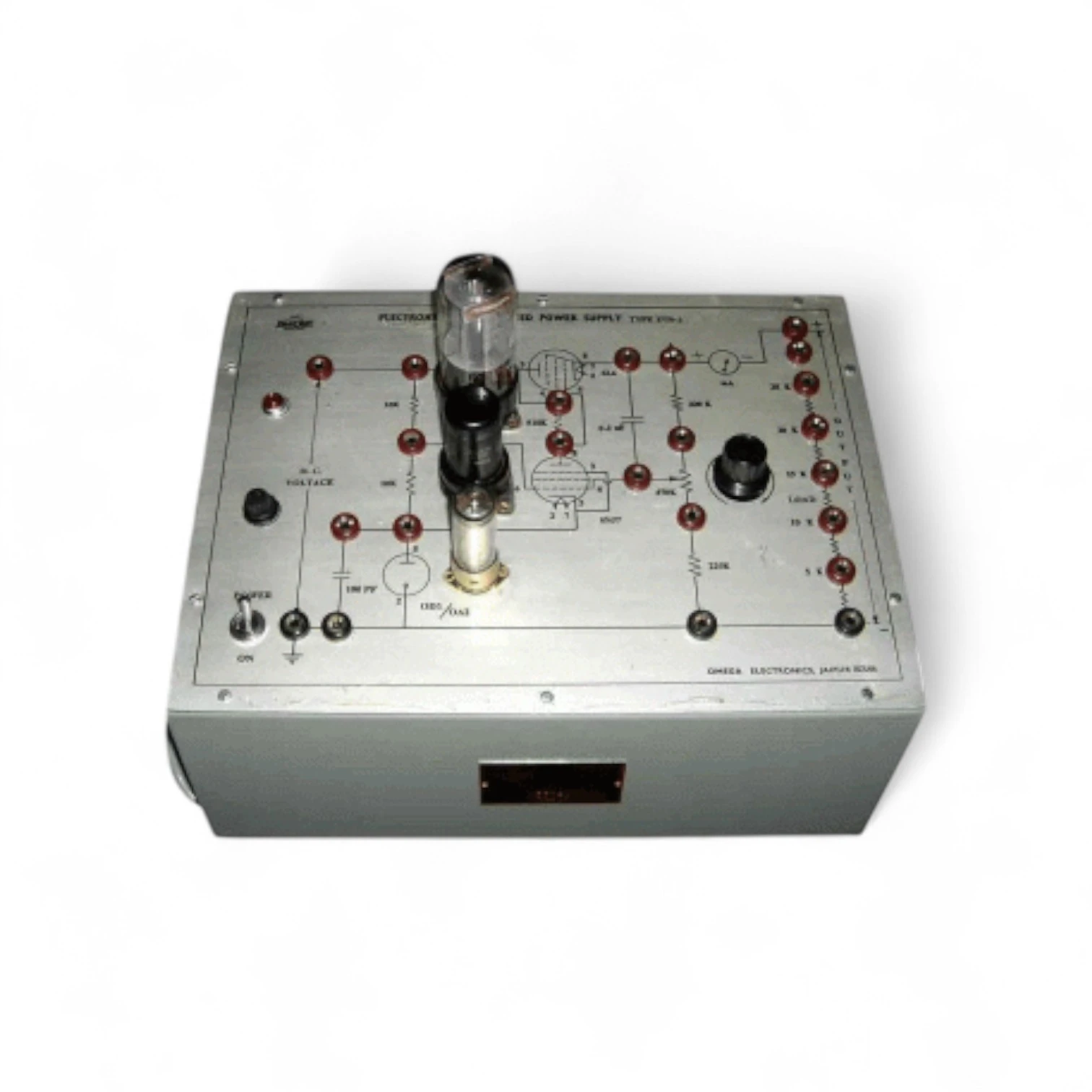

ETB-002 (Model Electronically Regulated Power Supply (V.V))

₹12,000.00

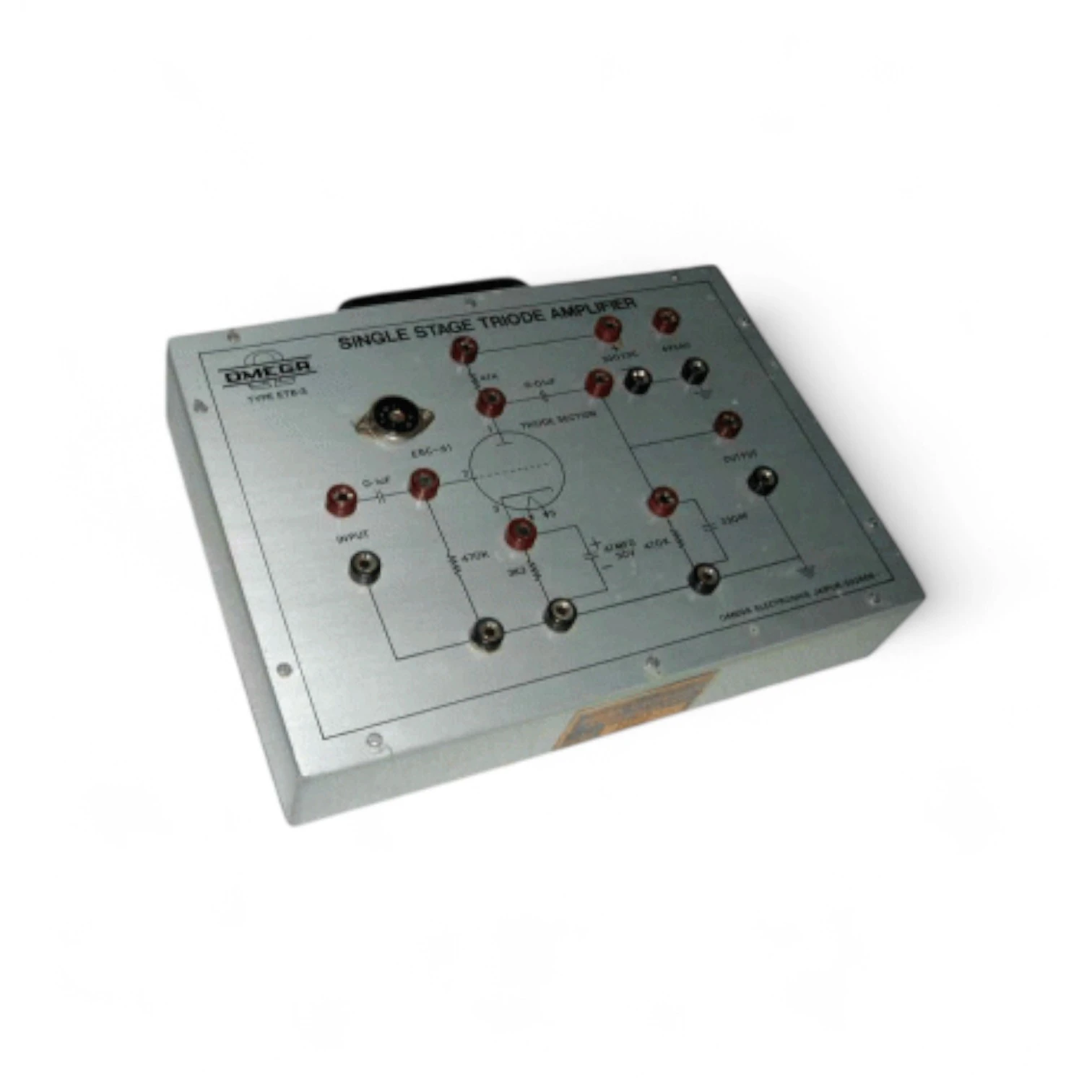

ETB-003 (Model Single Stage Triode Amplifier (V.V.))

₹14,000.00

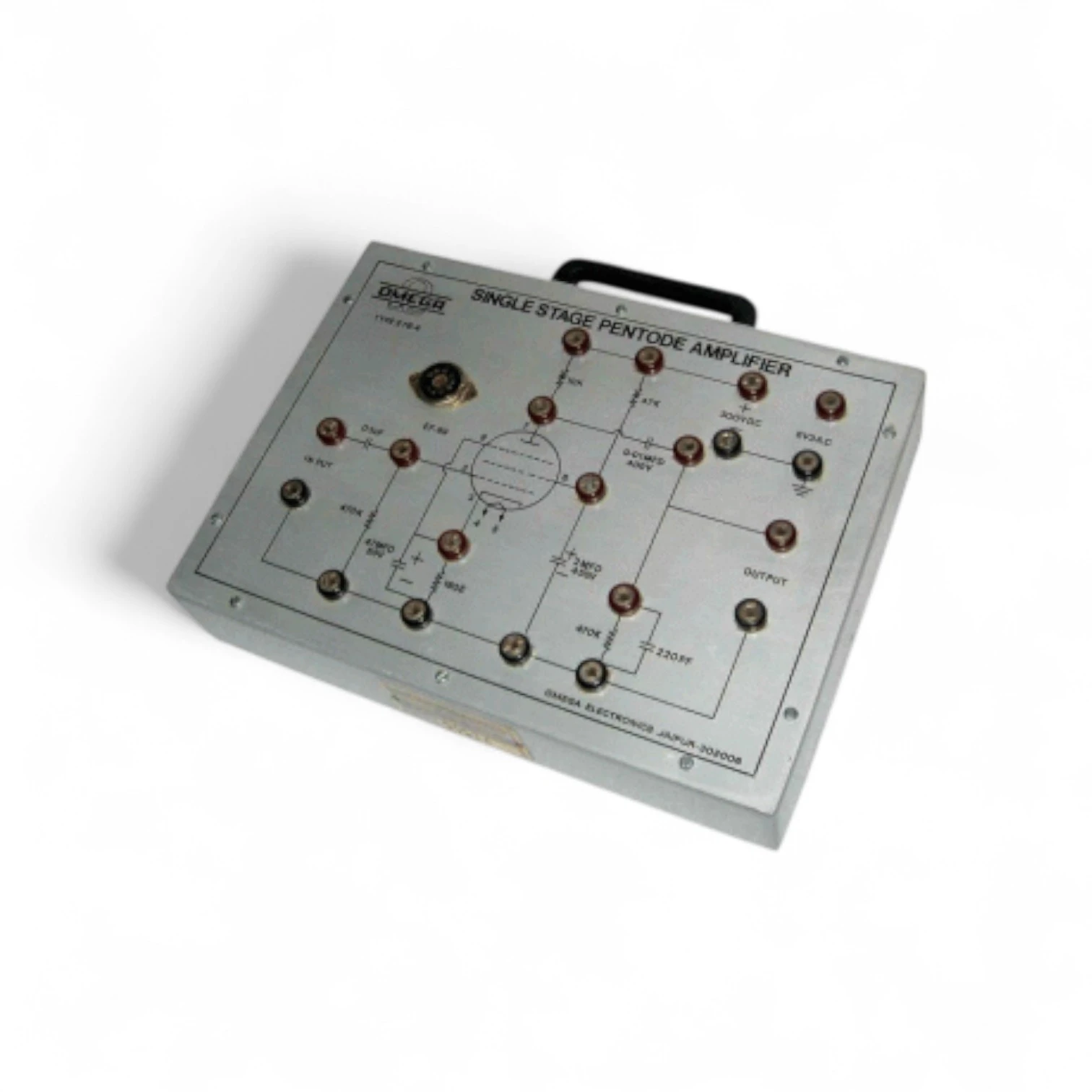

ETB-004 (Model Single Stage pentode Amplifier (V.V.))
