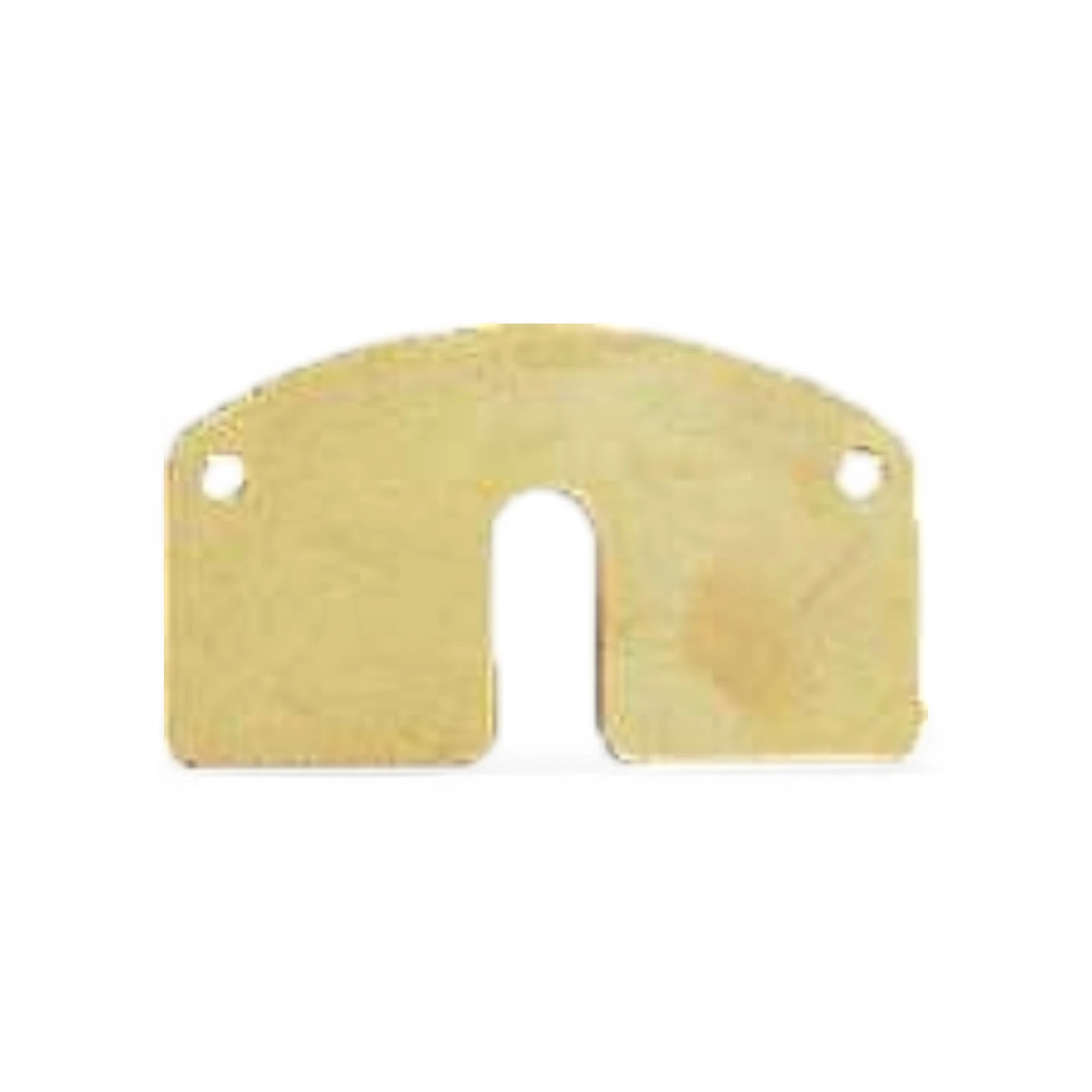

Glided Shorting Plate – High-Precision Calibration Accessory

The Glided Shorting Plate is a precision calibration tool designed for use with vector network analyzers (VNAs), time-domain reflectometers (TDRs), and other RF testing systems. Featuring a high-conductivity gold-plated surface, the shorting plate ensures a highly reflective, low-loss short circuit for accurate calibration and reference measurements.

Its robust, flat surface and excellent conductivity make it ideal for establishing a known zero-impedance reference point, minimizing signal distortion and enhancing measurement accuracy across a wide frequency range.

Key Features:

• High-purity gold-plated surface for minimal resistance

• Precision-machined for flat and uniform contact

• Ideal for VNA calibration and de-embedding procedures

• Provides consistent and stable short reference

• Suitable for RF, microwave, and EMC testing environments
