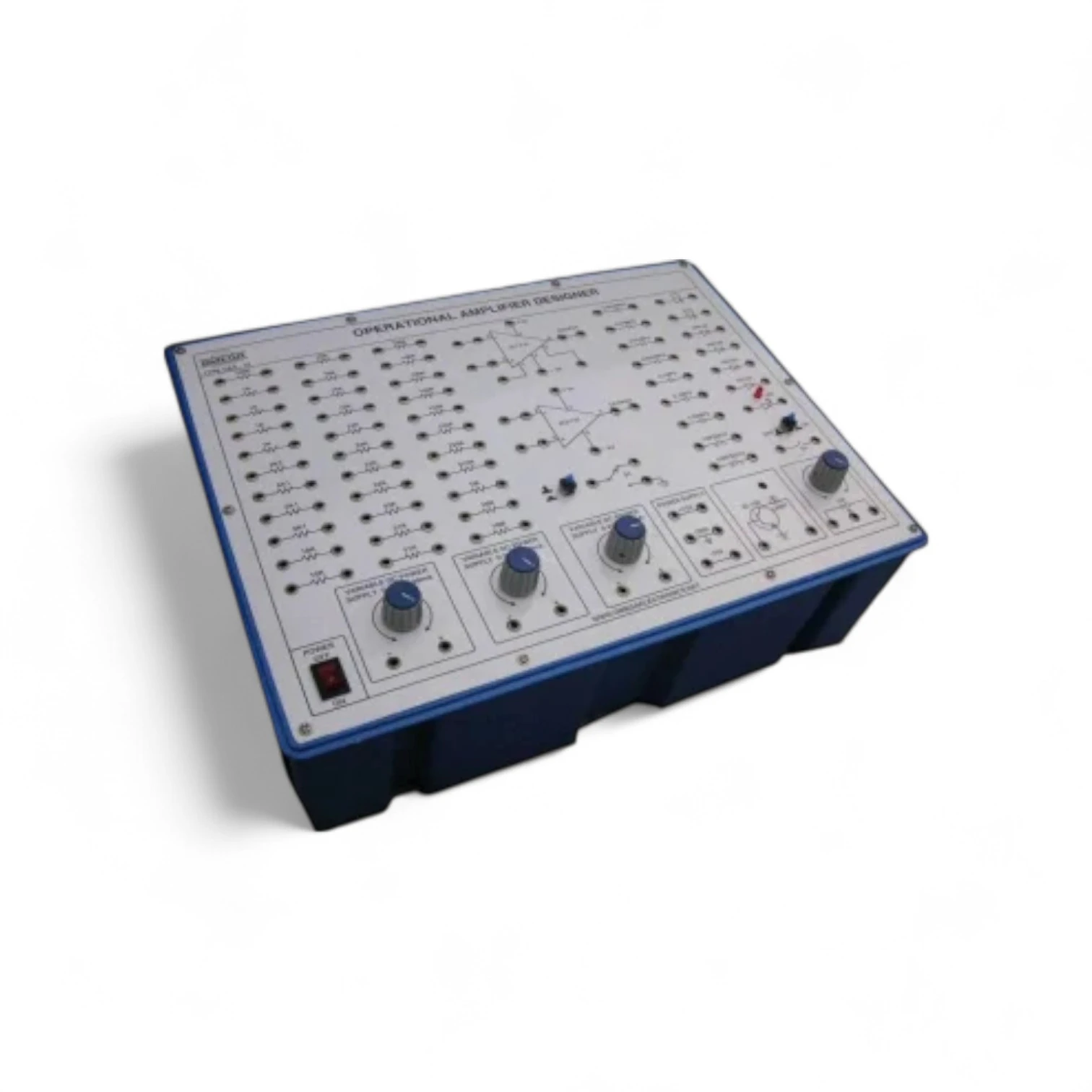

The OAD-14 Operational Amplifier Designer is a comprehensive training platform designed for in-depth study, design, and analysis of operational amplifier (Op-Amp) circuits. Supplied with an integrated power supply, this model enables users to construct and experiment with various Op-Amp configurations such as inverting, non-inverting, integrator, differentiator, comparator, and more.

It’s ideal for electronics and electrical engineering students to gain hands-on experience in analog circuit design. The onboard test points, solderless breadboard area, and clearly labeled sections allow flexible experimentation, component replacement, and real-time signal analysis.

Key Features

• Built-in dual ±15V regulated power supply

• Solderless breadboard for quick circuit prototyping

• Pre-configured and user-definable Op-Amp circuits

• Useful for understanding parameters like input offset voltage, bias current, slew rate, etc.

• Onboard test points and patch cords for easy measurements

• Designed for academic laboratories and analog electronics training
