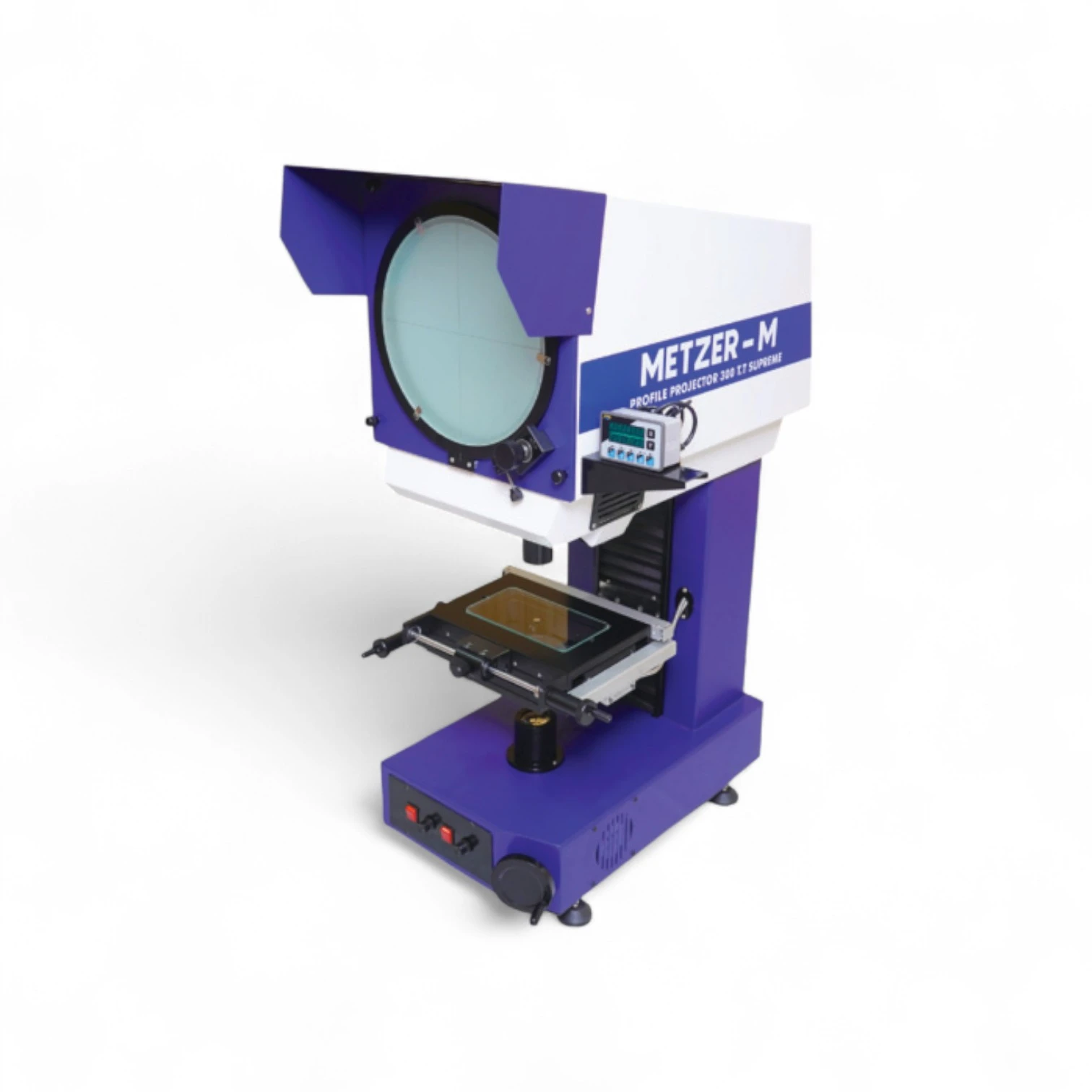

The Vertical Profile Projector (Table-Type) is a precision optical measuring instrument designed for accurate 2D measurement and inspection of small to medium-sized components. It projects the magnified profile of a workpiece onto a built-in screen, allowing precise measurement of length, angles, diameters, and contours without direct contact.

Compact and user-friendly, this table-type model is widely used in tool rooms, inspection departments, R&D labs, and production environments for quick and reliable dimensional analysis. Its high-accuracy optics, fine adjustment stage, and efficient illumination system make it a dependable solution for quality control and geometric inspection.

🔑 Key Features

• Type: Vertical profile projector – table-top model

• Screen: High-resolution projection screen with clear, sharp image display

• Illumination: High-brightness halogen/LED illumination for profile & surface observation

• Stage: Precision XY stage with fine micrometer adjustments for accurate measurement

• Magnification Lenses: Interchangeable objective lenses (commonly 10x, 20x, 50x, 100x)

• Protractor Screen: Graduated screen for angular measurement

• Measurement Functions: Length, angle, diameter, pitch, thread, radius & contour measurement

• Applications: Cutting tools, gears, dies, cams, screws, precision components, R&D and QC inspection
