Signal Generation Applications of Operational Amplifiers mplifiers (741-05)

(0) 0 Reviews 0 Orders 0 Wish listed

₹5,500.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

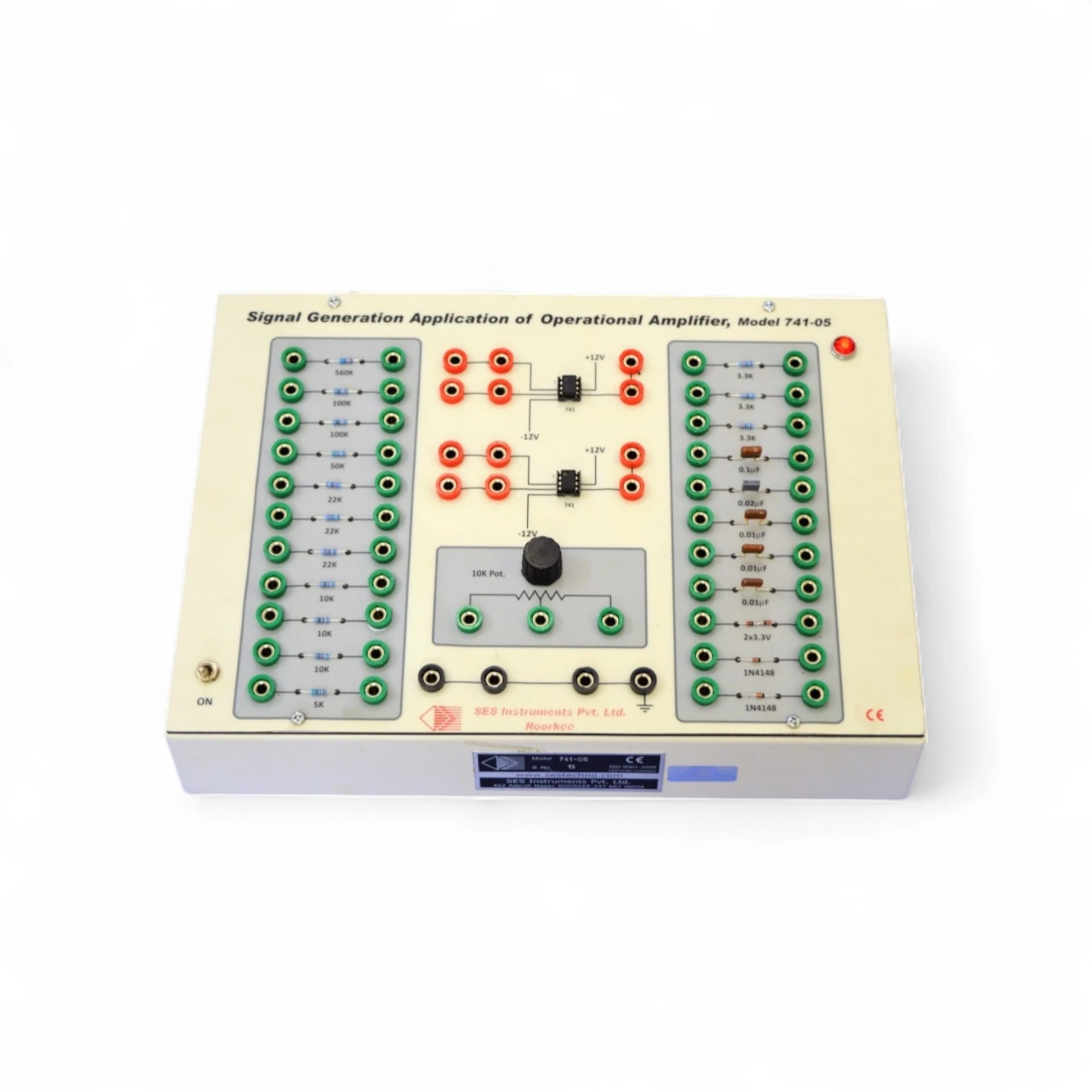

The Signal Generation Applications of Operational Amplifiers (741-05) trainer kit is designed to explore how IC 741 op-amps can be used for generating various waveforms. This educational setup demonstrates the signal generation capabilities of op-amps in analog electronics through multiple practical configurations.

Students can construct and study the following waveform generators:

Sine Wave Generator
Square Wave Generator
Triangular Wave Generator
Sawtooth Generator
Pulse Generator

The setup includes a built-in ±12V regulated power supply, function switch selectors, and clearly marked test points to observe the output waveform on a CRO or oscilloscope. It allows real-time analysis of frequency, amplitude, and waveform symmetry, helping learners understand the importance of op-amps in analog signal processing and waveform synthesis.

Ideal for electronics and instrumentation labs, the 741-05 serves as an essential tool for deepening students' understanding of how operational amplifiers function as signal generators in communication and control systems.
