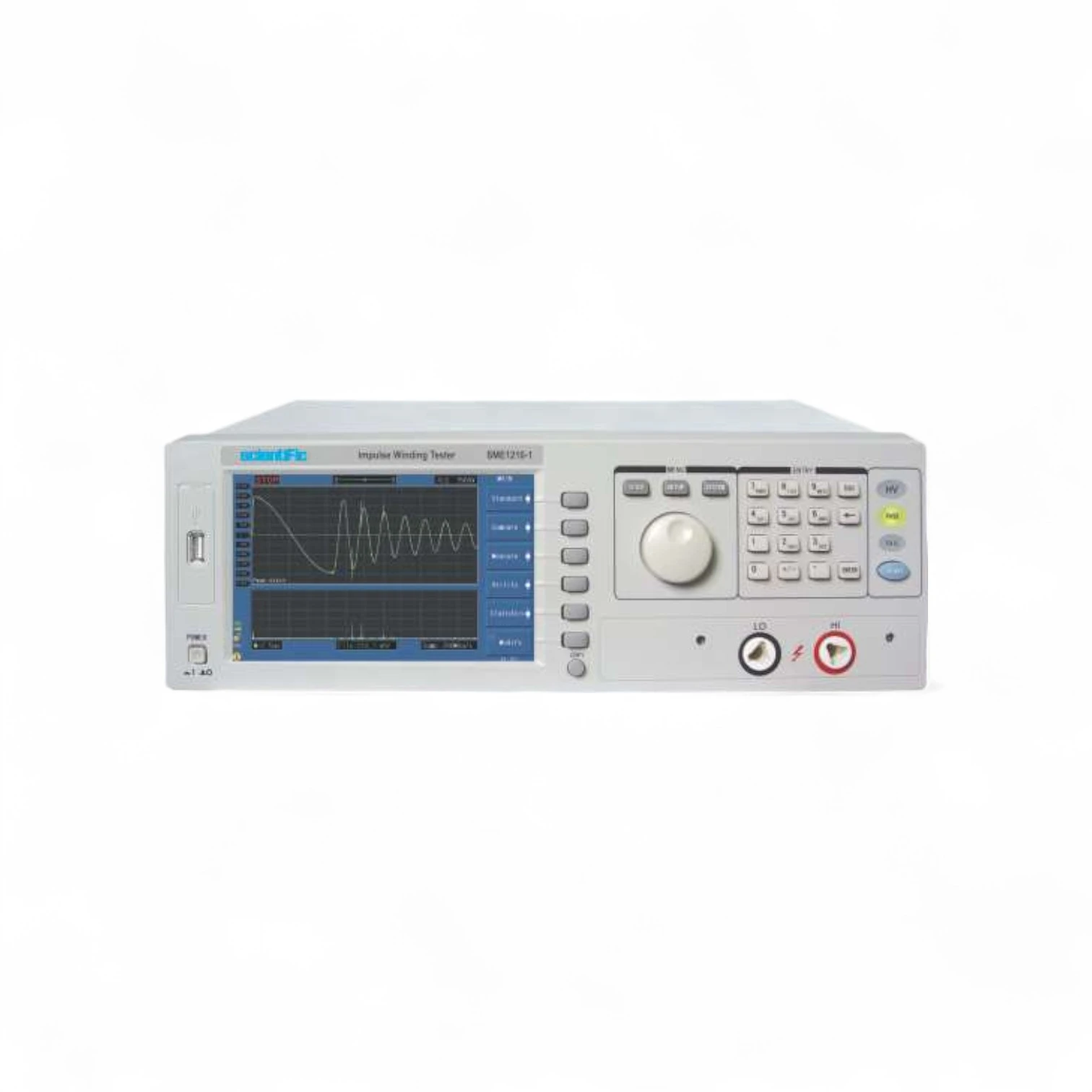

SME1200 Series – High-Speed Impulse Winding Tester (1/4/8 Channels)

The SME1200 Series is a versatile and high-performance Impulse Winding Test System designed for non-destructive testing of inductive components like transformers, coils, and motors. With configurations available in 1, 4, or 8 channels, it supports comprehensive multi-channel testing for production and R&D environments.

Delivering impulse voltages from 100V to 10kV, it supports four advanced waveform comparison methods to detect insulation defects, winding short circuits, and layer-to-layer faults. A high sampling rate of 100MSa/s ensures precise waveform capture and reliable analysis.

Key Features:

Output Impulse Voltage Range: 100V to 10kV
Configurable Channels: 1 / 4 / 8
100MSa/s Sampling Rate for high-resolution waveform capture
Supports 4 waveform comparison methods:
- Area Comparison
- Differential Area
- Correlation
- Peak Value
Quick fault detection for coils, stators, inductors, and transformers
Ideal for high-throughput manufacturing & quality labs
