Study of Astable & Monostable Multivibrators (555)

(0) 0 Reviews 0 Orders 0 Wish listed

₹6,000.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

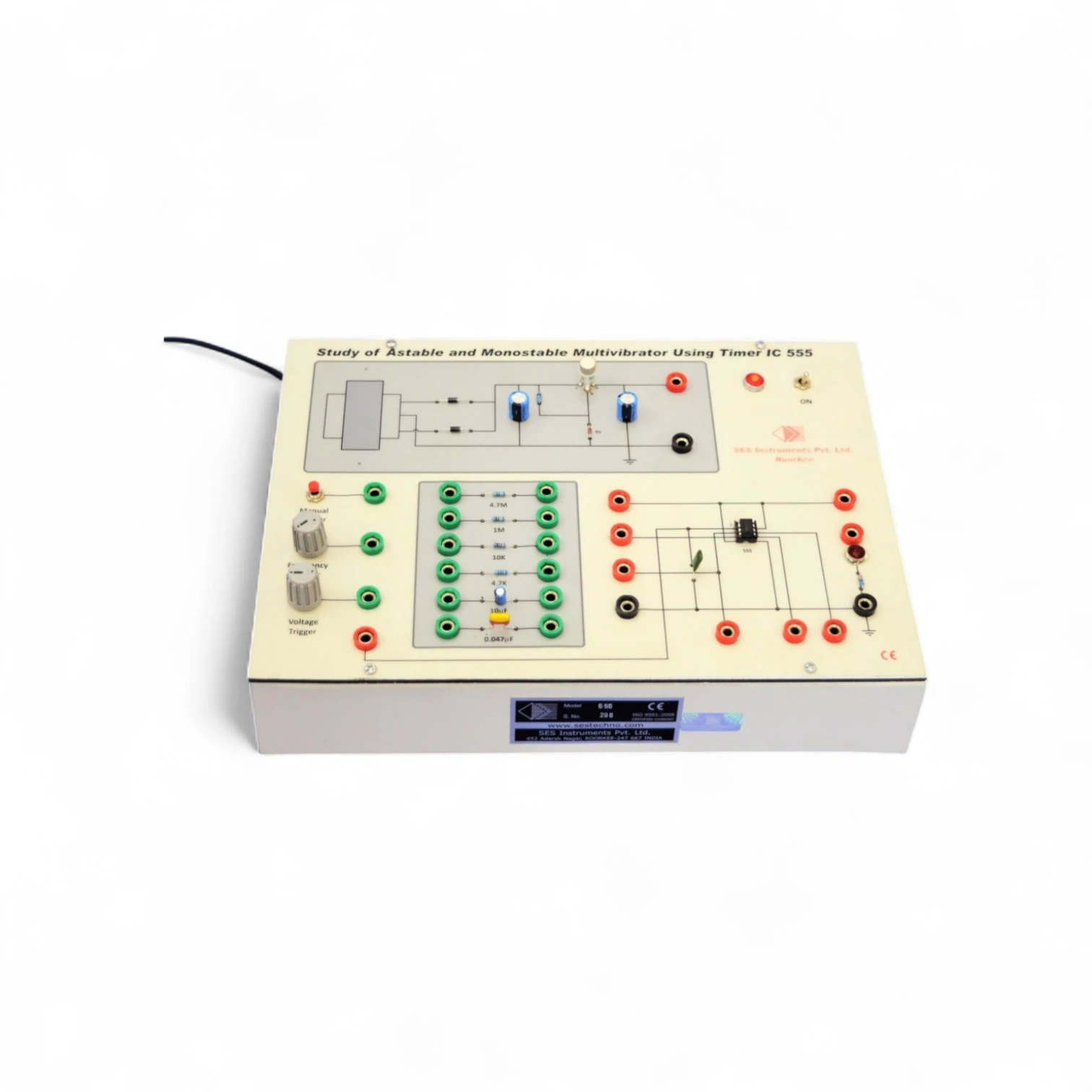

The Study of Astable & Monostable Multivibrators (555) setup is a comprehensive trainer kit designed for analyzing and understanding the working principles of astable and monostable multivibrator circuits using the popular IC 555 timer. This experiment enables students to construct, observe, and measure pulse generation and timing characteristics in two distinct operating modes.

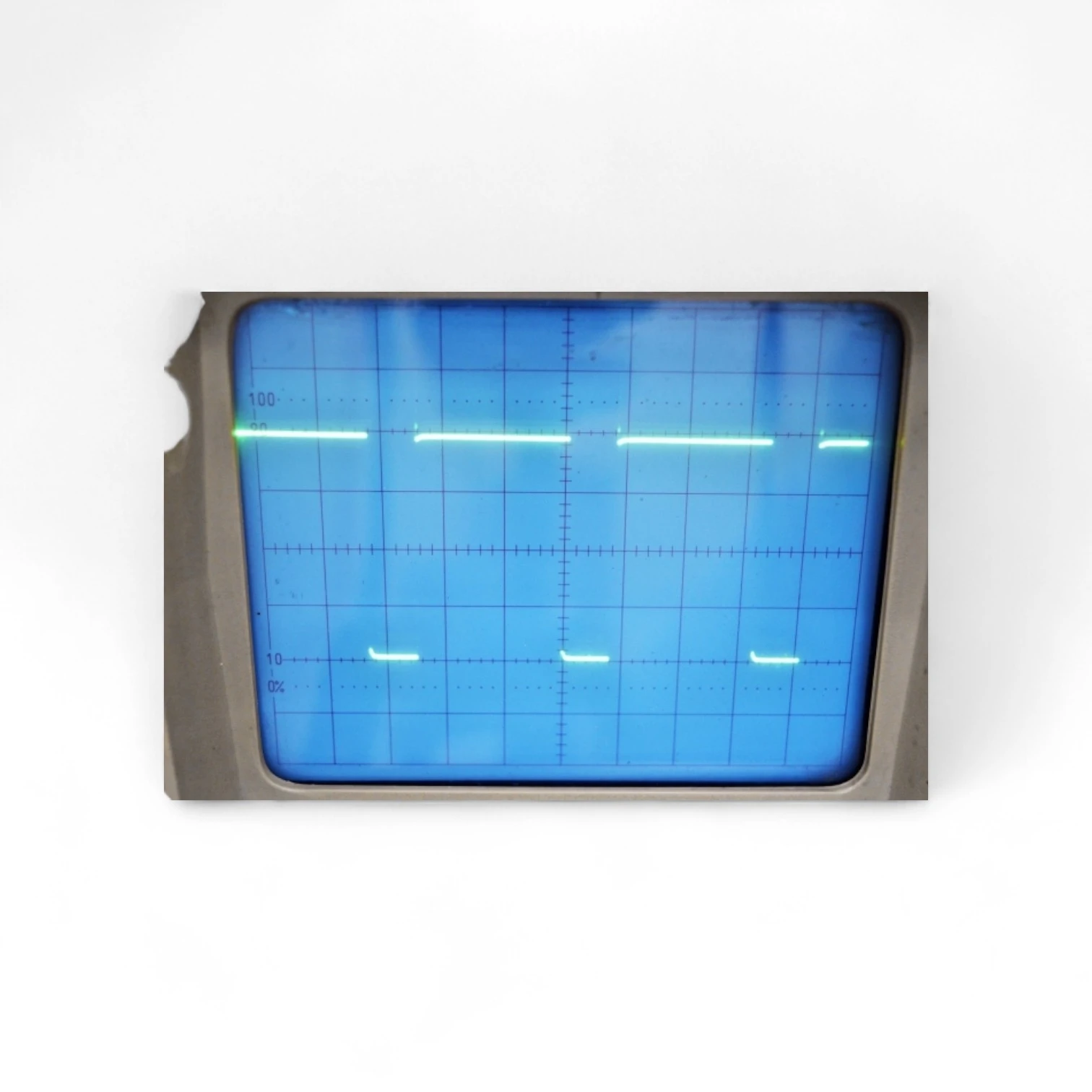

In astable mode, the circuit continuously oscillates, producing square wave outputs without any external triggering. In monostable mode, the circuit produces a single output pulse in response to a trigger input. The setup allows students to explore parameters such as pulse width, frequency, and duty cycle, and to study how these are influenced by varying resistor and capacitor values.

The trainer includes built-in regulated power supply, clearly labeled test points, circuit diagram on panel, and input/output terminals for CRO/measurement instruments. It is ideal for diploma, engineering, and electronics lab programs focused on digital and analog electronics.
