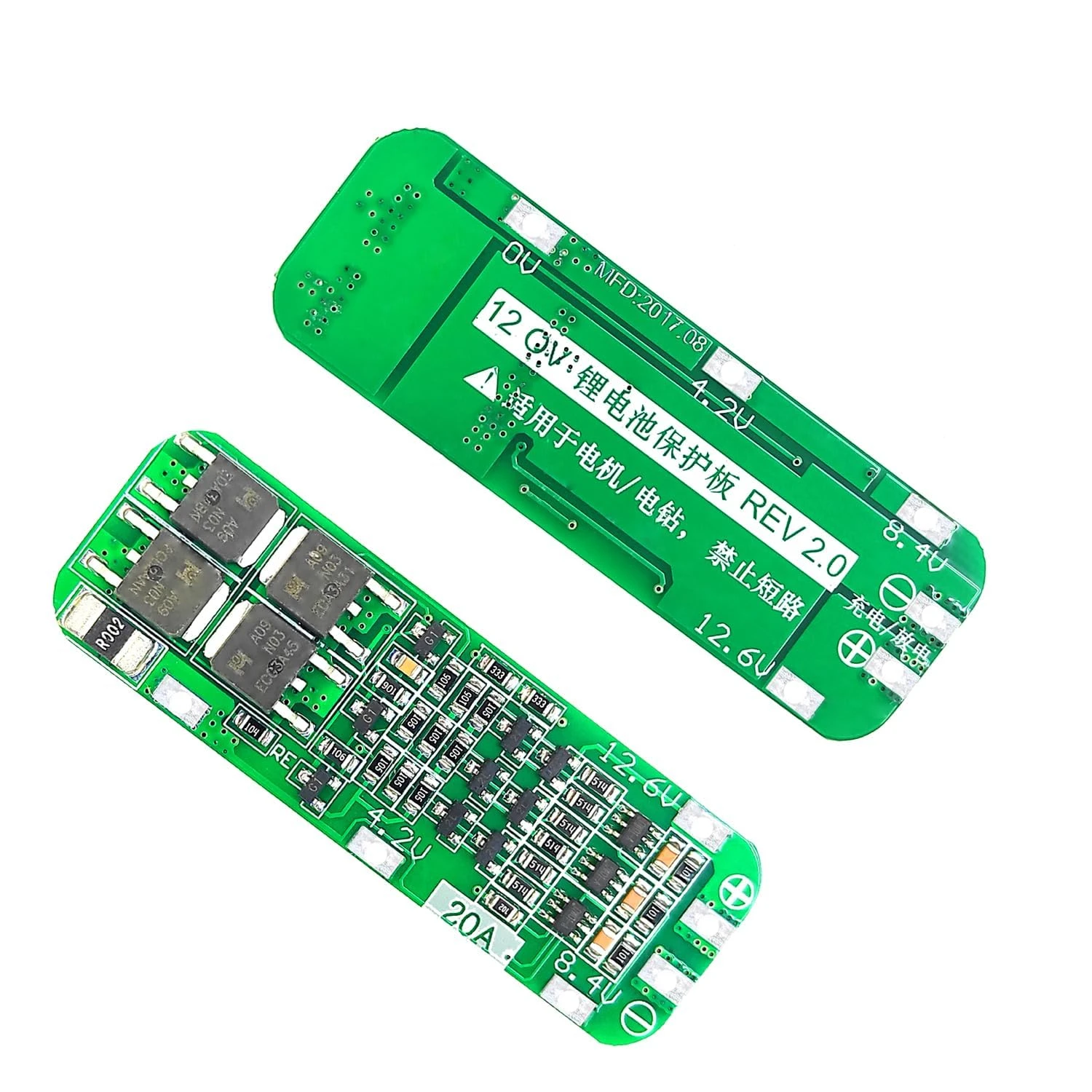

The 3S 20A Battery Management System (BMS) is designed to manage and protect 3-cell (3S) lithium-ion or lithium-polymer battery packs with a nominal voltage of 11.1V (3 × 3.7V) and fully charged voltage of 12.6V. This module ensures safe charging, discharging, and balancing of cells, making it essential in IoT power systems, robotics, energy research, and embedded applications where battery safety and reliability are critical.

Key specifications:

• Supported Battery Type: Li-ion / Li-Polymer

• Number of Cells: 3S (3 cells in series)

• Nominal Voltage: 11.1V (3 × 3.7V)

• Charge Voltage (max): 12.6V (4.2V per cell)

• Continuous Discharge Current: 20A

• Peak Discharge Current: ~30A (short duration)

• Balance Function: Passive balancing between cells during charging

• Protection Features:

  • Overcharge protection (per cell cutoff ~4.25V ±0.05V)

  • Over-discharge protection (per cell cutoff ~2.7V ±0.1V)

  • Overcurrent/short-circuit protection

  • Automatic recovery after fault removal

• Operating Temperature: -30°C to +80°C

• Efficiency: >92% depending on load

• Dimensions (typical): 45 mm × 60 mm × 5 mm

Research & application relevance:

• Robotics & Drones: Provides stable and safe high-current supply to motors, ESCs, and controllers.

• IoT & Embedded Systems: Ensures safe battery operation in portable research devices.

• Energy Storage Projects: Ideal for building custom UPS, power banks, and renewable energy storage solutions.

• Academic Research: Helps students and researchers study battery safety mechanisms, cell balancing, and power delivery systems.

The 3S 20A BMS is valuable in research because it combines cell balancing and protection in a compact module, making it a critical part of high-current, multi-cell Li-ion battery packs used in labs and prototypes.
