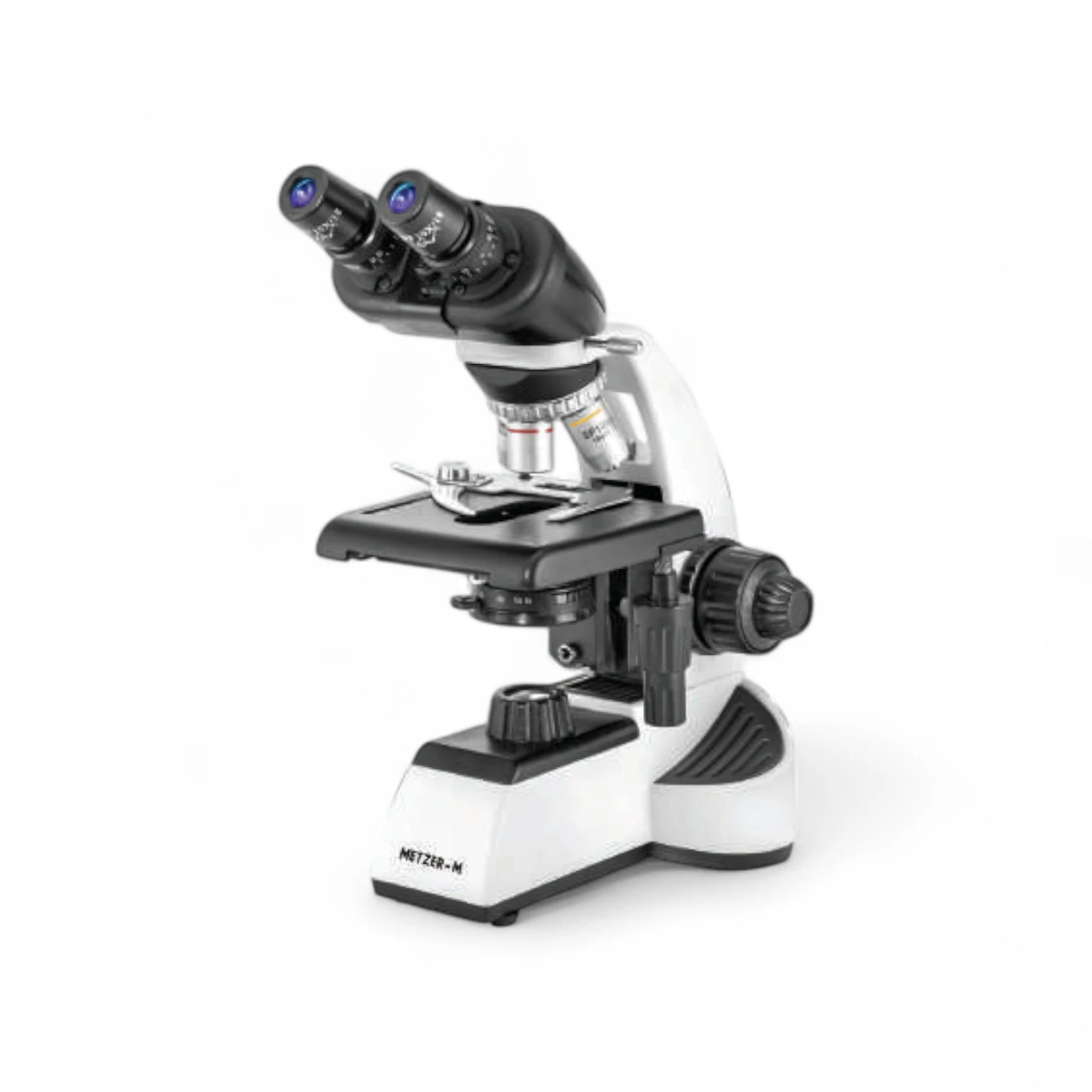

The Advanced Binocular Research Microscope ABTZ-5000 BM (SUPREME) is a high-end optical instrument engineered for professional research, clinical diagnostics, and advanced academic applications. With a magnification range of 40x – 1000x, infinity-corrected S-Plan achromatic objectives, and superior mechanical stability, it delivers sharp, distortion-free images with excellent contrast.

Built with a Seidentopf binocular head, ergonomic design, and smooth co-axial focusing, this model ensures accuracy and comfort during prolonged laboratory sessions. The anti-fungal coated optics and precision mechanics make it a reliable choice for demanding biological and medical studies.

Key Features:

• Magnification: 40x – 1000x

• Observation: Seidentopf binocular head, inclined 30°, 360° rotatable, diopter adjustment (±5), interpupillary distance 48–75 mm

• Eyepieces: Wide-field 10x (paired), F.O.V. 20 mm, anti-fungal coated

• Objectives: S-Plan achromatic 4x, 10x, 40x (SL), 100x oil (SL), infinity-corrected & anti-fungal treated

• Stage: Double plate mechanical stage (140×132 mm), low-positioned co-axial controls, cross travel 78×54 mm

• Focusing System: Co-axial coarse & fine focusing, pre-focusing lever & tension adjustment, fine division 0.002 mm

• Nosepiece: Reverse angle quadruple nosepiece with ball bearings

• Condenser: Abbe condenser N.A. 1.25 with adjustable iris diaphragm

• Illumination: Built-in 3W LED lamp with adjustable brightness

• Mechanical Build: Durable, stable stand with ergonomic design for long-term use

Applications:

• Medical and biological research laboratories

• Clinical diagnostics and pathology labs

• University-level teaching & higher education

• Microbiology, cytology, histology & life science research
