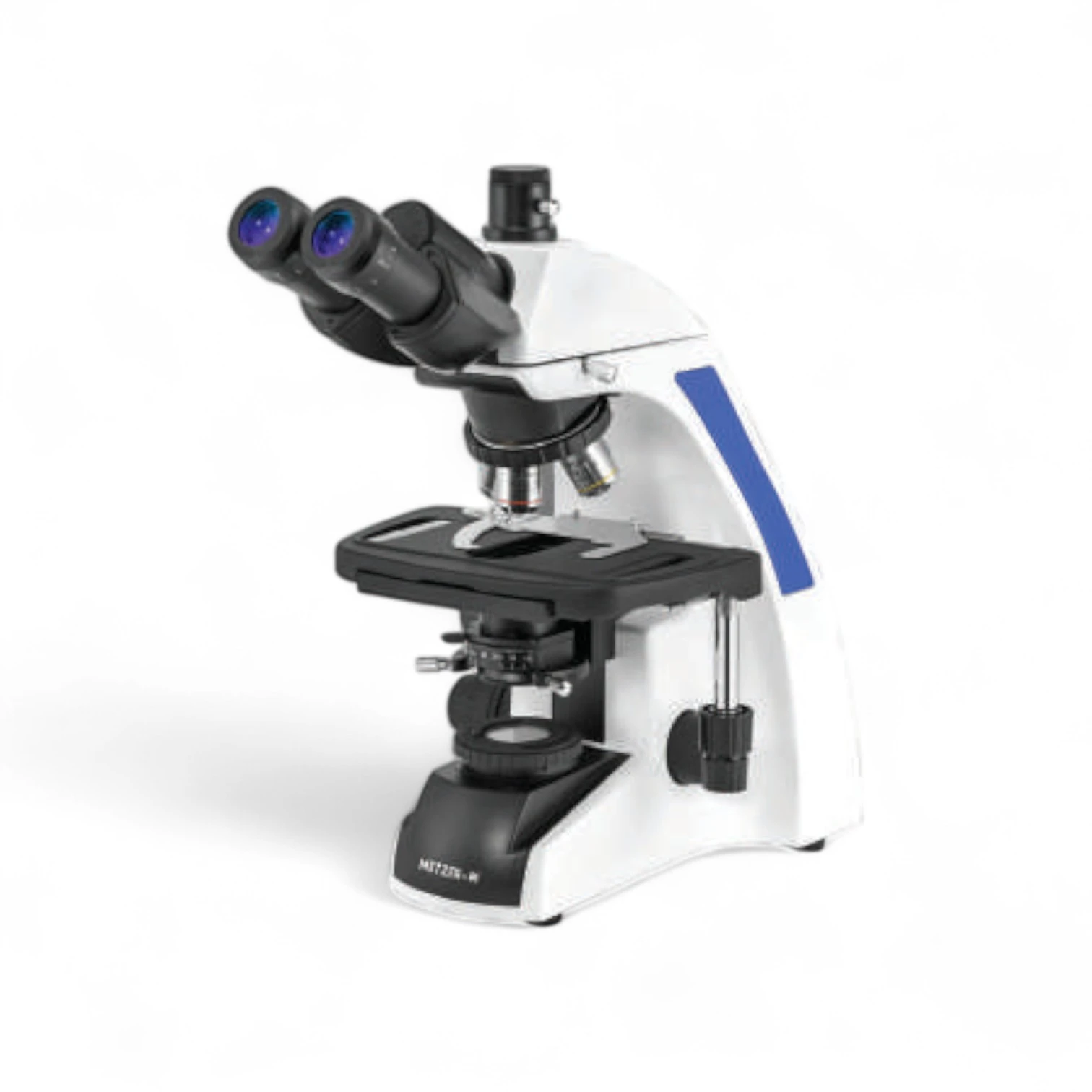

The Advanced Trinocular Research Microscope ABTZ-5000 TM (EDGE) is a premium research-grade microscope designed for professional laboratories, clinical diagnostics, and higher education. Equipped with infinity-corrected IOS plan achromatic objectives, it ensures superior clarity, high resolution, and precise color reproduction for demanding research applications.

Its trinocular head allows simultaneous visual observation and digital imaging or photomicrography, making it ideal for documentation, teaching, and research. Built with a rigid die-cast stand, precision co-axial focusing, and an ultra-bright LED illumination system, the 5000 TM (EDGE) delivers exceptional performance, reliability, and comfort for extended laboratory sessions.

Key Features:

• Magnification: 40x – 1000x

• Trinocular Seidentopf head, inclined 30°, 360° rotatable, interpupillary 48–75 mm, diopter adjustment (±5)

• Eyepieces: Extra wide-field 10x (paired), F.O.V. 20 mm, anti-fungal coated

• Objectives: Infinity-corrected IOS Plan Achromatic 4x, 10x, 40x (SL), 100x oil immersion (SL)

• Stage: Double plate mechanical stage (140×132 mm) with low-positioned co-axial controls, ball-bearing guideways

• Focusing System: Co-axial coarse & fine adjustment, pre-focusing lever, tension control, fine division 0.002 mm

• Nosepiece: Reverse angle quadruple nosepiece with ball bearings, slot for polarizer

• Condenser: Abbe condenser N.A. 1.25 with adjustable iris diaphragm

• Illumination: Ultra-bright 3W LED lamp with brightness control knob

• Build Quality: Heavy-duty, ergonomic design for long-duration professional use

• Special Feature: Trinocular port for digital camera & photomicrography

Applications:

• Advanced biological & medical research

• Clinical pathology & diagnostic laboratories

• University & postgraduate teaching

• Microbiology, cytology, histology & life sciences

• Digital photomicrography & documentationAdvanced Trinocular Microscope, ABTZ-5000 TM EDGE, Infinity Corrected Microscope, Research Microscope, IOS Plan Microscope, Biological Microscope, Clinical Microscope, Medical Microscope, Pathology Microscope, Digital Imaging Microscope, Laboratory Microscope
