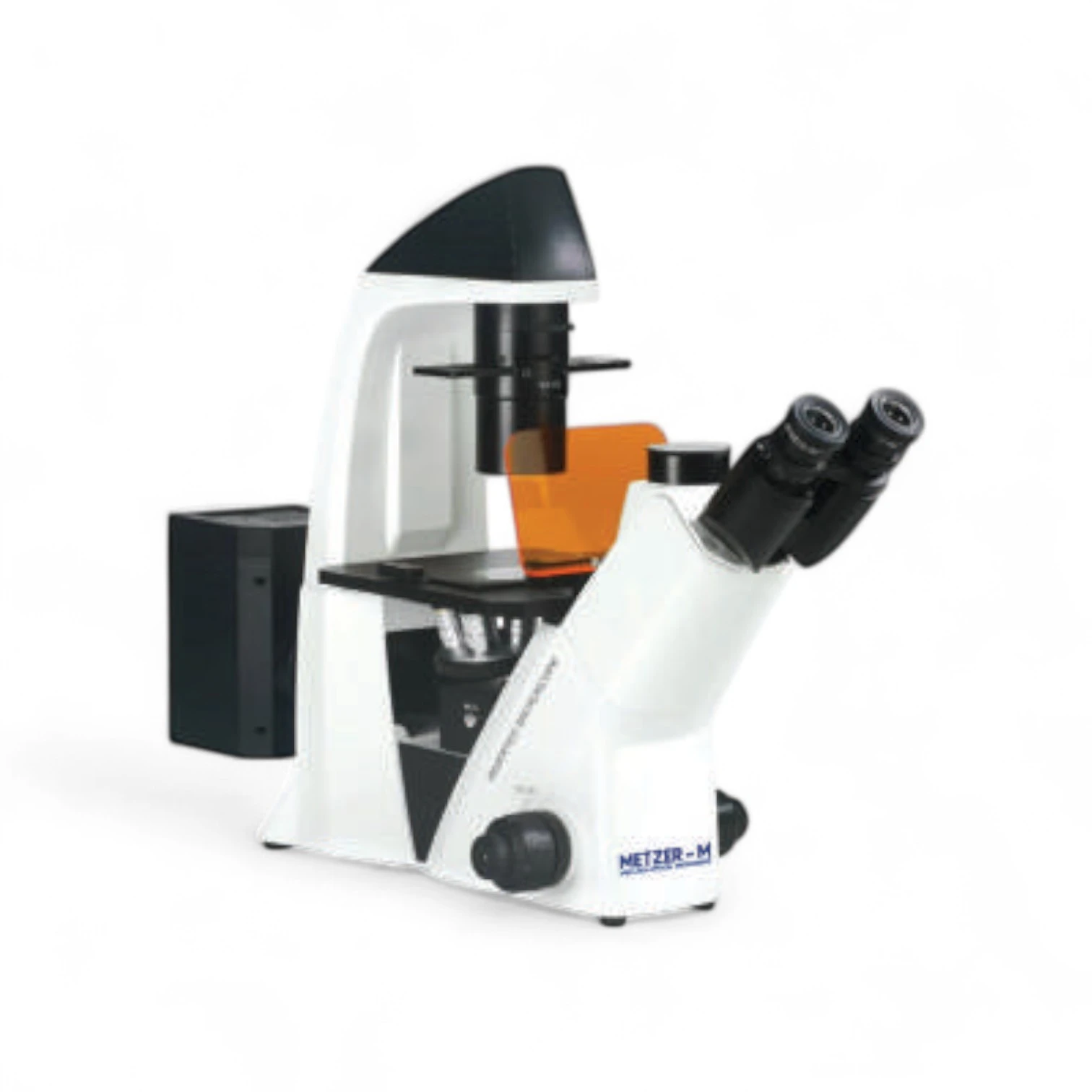

The Advanced Inverted Tissue Culture Microscope ABTZ – 6000 TTCM (FL MAX) is a high-end inverted microscope engineered for tissue culture, live cell imaging, and advanced biomedical research. With its infinity-corrected plan achromatic optics and enhanced fluorescence imaging system, the FL MAX delivers exceptional clarity, contrast, and sensitivity for cell biology, cytology, and molecular research.

This model features a trinocular inverted observation head for direct viewing and fluorescence photomicrography, making it ideal for advanced imaging, teaching, and documentation. Its large inverted stage, precision focusing system, and dual illumination system (LED + Fluorescence with multi-filter cubes) provide unmatched versatility and performance for professional laboratories.

🔑 Key Features

• Microscope Type: Advanced inverted tissue culture microscope with maximum fluorescence capability

• Magnification Range: 40x – 1000x (expandable with optional objectives/eyepieces)

• Observation Head: Trinocular inverted Seidentopf head, 30° inclined, 360° rotatable, trinocular phototube for imaging/camera integration

• Eyepieces: Extra wide-field 10x (paired), F.O.V. 22–25 mm, high eye-point, anti-fungal coated

• Objectives: Infinity-corrected Plan Achromatic objectives (Phase contrast & Fluorescence options) – 4x, 10x, 20x, 40x, 100x oil immersion

• Stage: Large inverted mechanical stage, optimized for culture dishes, flasks, and multi-well plates

• Focusing: Co-axial coarse and fine focusing, pre-focusing lever, tension adjustment, fine division ~0.002 mm

• Condenser: Long working distance condenser with iris diaphragm, compatible with phase contrast & fluorescence imaging

• Illumination:

  • Köhler LED illumination (3W/5W LED) for brightfield imaging

  • Advanced fluorescence illumination with multi-filter cubes (Blue/Green/UV/optional Red) for maximum flexibility

• Special Features:

  • Optimized for tissue culture & live cell research

  • Trinocular port for advanced digital camera systems

  • FL MAX fluorescence system ensures higher sensitivity and multi-channel imaging

• Certifications: ISO certified, CE marked, FDA compliant
