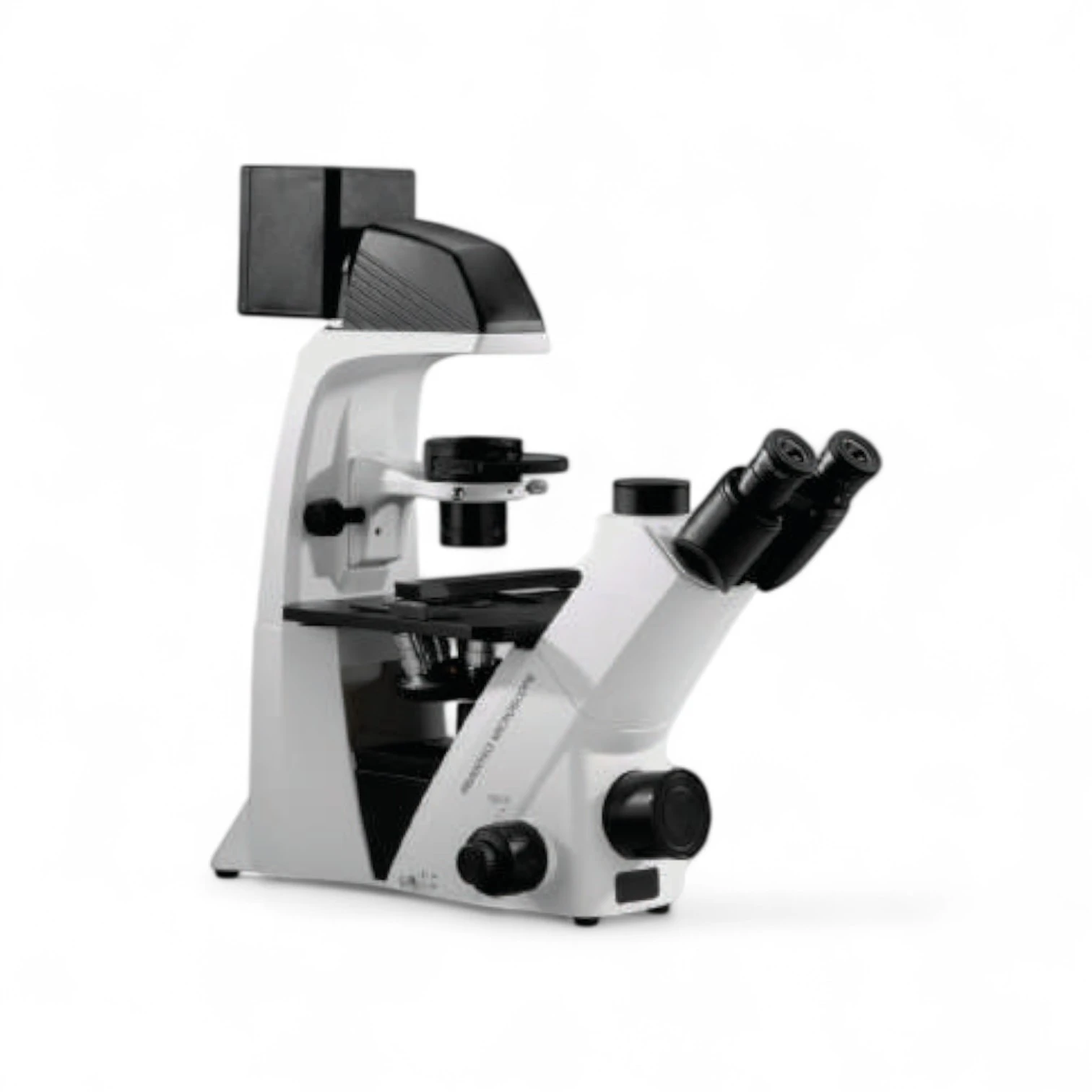

The Advanced Inverted Tissue Culture Microscope ABTZ – 6000 TTCM FLPRO is a premium-grade microscope specifically designed for tissue culture, live cell imaging, and advanced biomedical research. Featuring an infinity-corrected optical system with plan achromatic and fluorescence capabilities, it delivers high-contrast, distortion-free, and crystal-clear images—making it ideal for cell culture monitoring, cytology, and advanced life science applications.

Built with a trinocular inverted observation system, it allows simultaneous visual observation and fluorescence photomicrography, enabling researchers to document and analyze specimens with precision. Its wide mechanical stage, precision focusing controls, and Köhler LED/fluorescence illumination system ensure superior performance, stability, and reliability in demanding laboratory conditions.

🔑 Key Features

• Microscope Type: Advanced inverted tissue culture microscope with fluorescence attachment

• Magnification Range: 40x – 1000x (expandable)

• Observation Head: Trinocular inverted head, 30° inclined, 360° rotatable, vertical phototube for imaging/camera integration

• Eyepieces: Extra wide-field 10x (paired), F.O.V. 22–25 mm, anti-fungal coated

• Objectives: Infinity-corrected Plan Achromatic objectives (Phase contrast/Fluorescence options available) – 4x, 10x, 20x, 40x, 100x oil immersion

• Stage: Large inverted mechanical stage with co-axial X–Y controls, optimized for culture flasks, dishes & slides

• Focusing: Co-axial coarse & fine focusing with pre-focusing lever, tension adjustment, fine division ~0.002 mm

• Illumination: Dual system – Köhler LED illumination (3W/5W LED) + Fluorescence illumination with filter cubes (Blue/Green/UV options)

• Condenser: Long working distance condenser with iris diaphragm, phase contrast & fluorescence compatible

• Special Features:

  • Inverted design optimized for tissue culture & live cell work

  • Trinocular port for digital camera/fluorescence imaging

  • Advanced fluorescence filters for high-sensitivity observation

• Certifications: ISO certified, CE marked, FDA compliant
