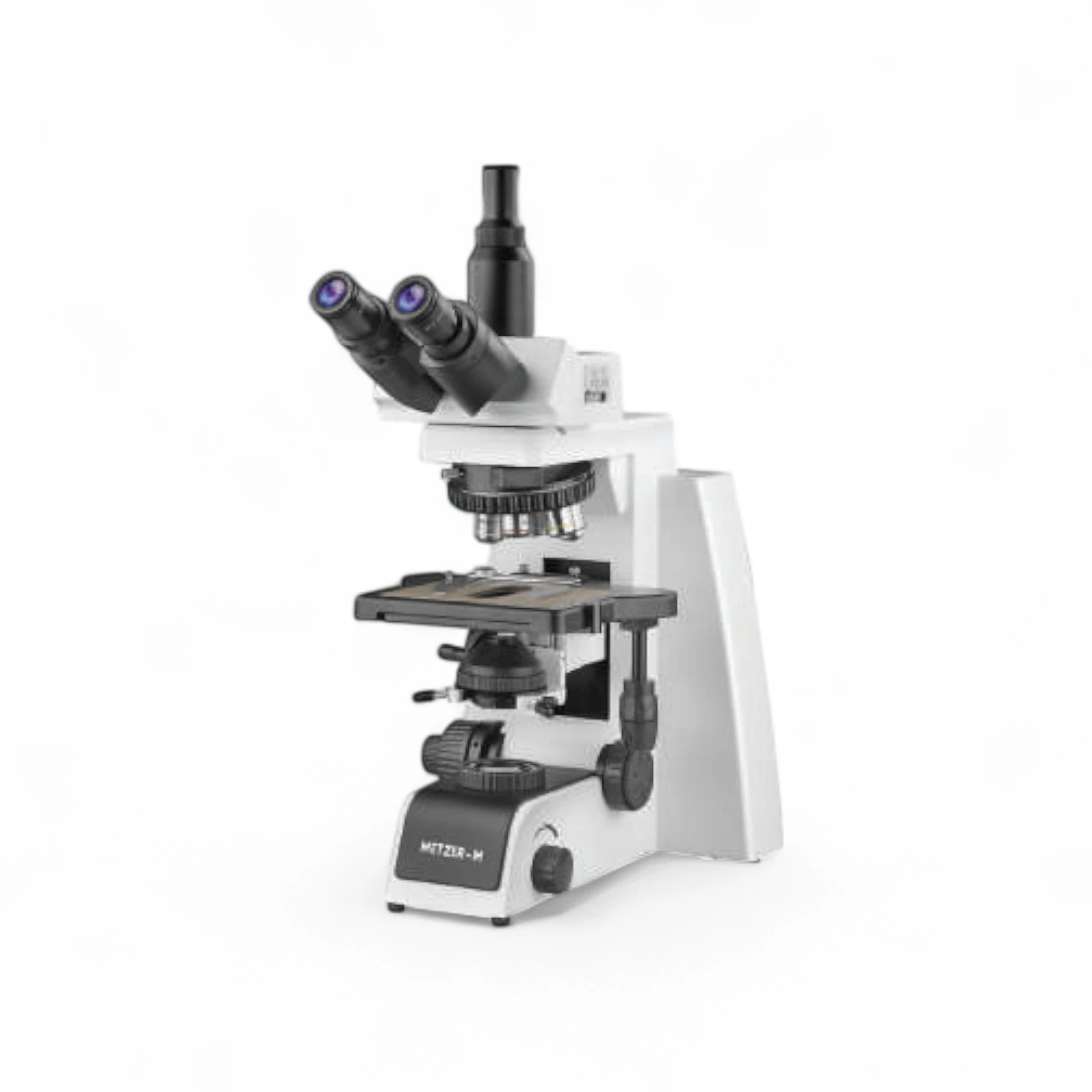

The Advanced Research Microscope ABTZ – 5000 TM PRO is a high-performance trinocular microscope designed for advanced biological research, medical diagnostics, and higher education. It is equipped with infinity-corrected Plan Achromatic objectives that ensure superior image clarity, excellent color reproduction, and long-term reliability for demanding laboratory applications.

With its trinocular Seidentopf head, the 5000 TM PRO supports both visual observation and digital photomicrography, making it highly versatile for teaching, research, and documentation. Its precision mechanical stage, smooth co-axial focusing system, and Köhler LED illumination provide unmatched stability, accuracy, and comfort for long-duration use.

🔑 Key Features

• Magnification: 40x – 1000x

• Observation: Seidentopf trinocular head, inclined 30°, 360° rotatable, vertical phototube for imaging, interpupillary 48–75 mm, diopter adjustment (±5)

• Eyepieces: Wide-field 10x (paired), F.O.V. 20/22 mm, anti-fungal coated

• Objectives: Infinity-corrected Plan Achromatic 4x, 10x, 40x (spring-loaded), 100x oil immersion (SL), anti-fungal treated

• Stage: Double-plate mechanical stage with co-axial low drive controls; cross movement approx. 76×50 mm; fine division 0.001 mm

• Focusing System: Co-axial coarse & fine focusing with pre-focusing lever, tension control, fine division 0.002 mm

• Nosepiece: Reverse angle quadruple/sextuple nosepiece with positive click stops

• Condenser: Abbe condenser N.A. 1.25 with iris diaphragm & filter holder

• Illumination: Köhler LED illumination with adjustable brightness (external 3W/5W LED source)

• Build Quality: Rugged, ergonomically designed body for heavy-duty laboratory applications

• Special Feature: Trinocular phototube for digital camera attachment and advanced image documentation
