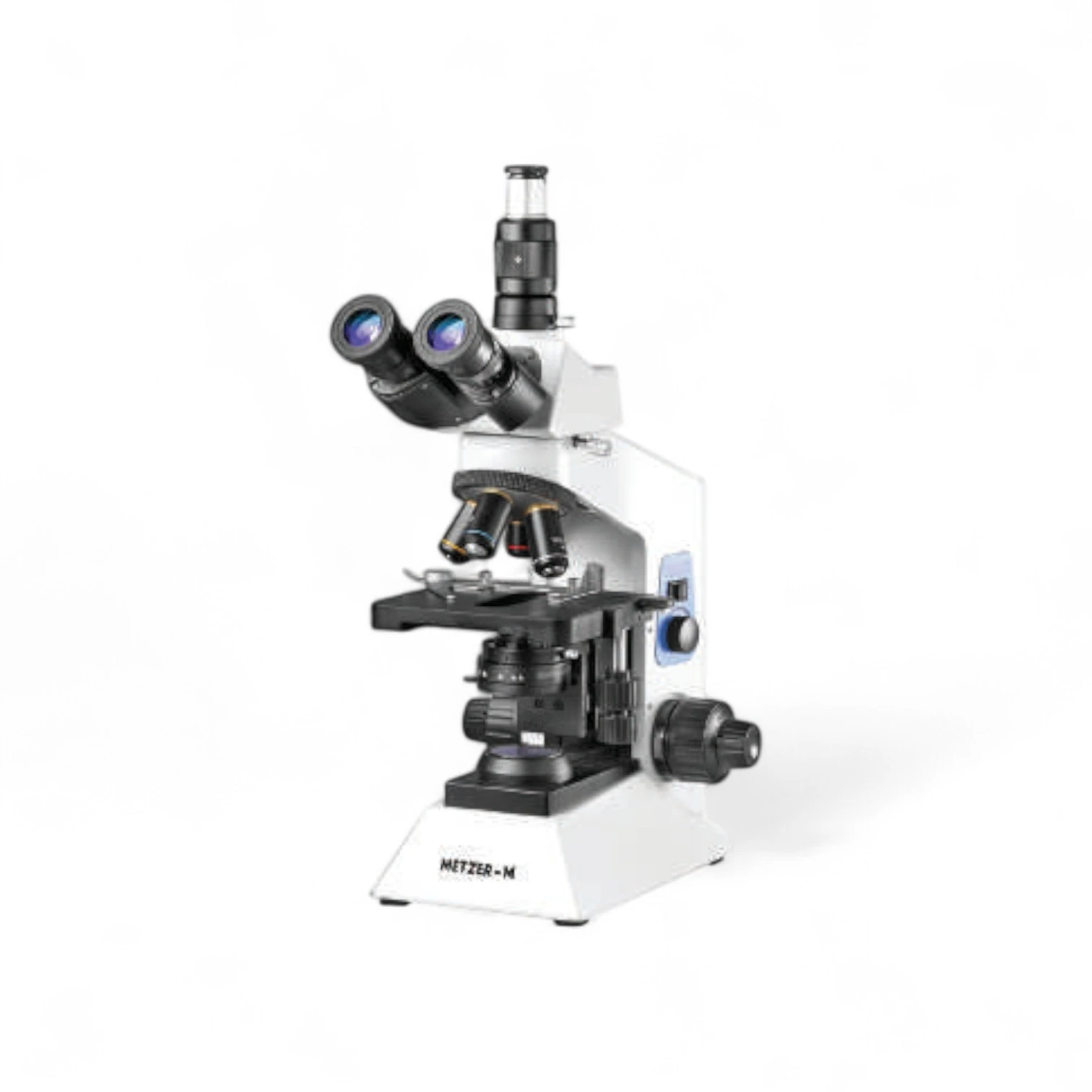

The Advanced Research Microscope ABTZ – 5000 TM STAR is a professional-grade trinocular research microscope designed for life sciences, medical research, and higher education laboratories. Featuring infinity-corrected CCIS Plan Achromatic optics, it delivers superior image resolution, color fidelity, and long working distance for precision research.

Equipped with a trinocular Seidentopf head, this model allows both direct visual observation and digital imaging/photomicrography, making it perfect for documentation and teaching. Its ergonomic double-plate mechanical stage, smooth co-axial focusing system, and Köhler LED illumination ensure high accuracy, stability, and comfort even during long laboratory sessions.

🔑 Key Features

• Magnification: 40x – 1000x

• Observation: Seidentopf trinocular head, inclined 30°, 360° rotatable, vertical phototube for micro-photography, diopter adjustment (±5), interpupillary distance 48–75 mm

• Eyepieces: Extra wide-field 10x (paired), F.O.V. 25 mm, ocular dia 30 mm

• Objectives: CCIS Plan Achromatic 4x, 10x, 20x (SL), 40x (SL), 100x oil immersion (SL), infinity-corrected, anti-fungal treated

• Stage: Mechanical stage 180×160 mm with low-positioned co-axial controls on ball-bearing guideways; cross movement 76×50 mm; fine division 0.001 mm

• Focusing System: Co-axial coarse & fine adjustment, pre-focusing lever, tension adjustment ring

• Nosepiece: Reverse angle sextuple nosepiece with positive click stops

• Condenser: Swing-out Abbe condenser N.A. 0.9/1.25 with iris diaphragm and filter holder

• Illumination: Köhler LED illumination system with external 3W LED source, iris diaphragm on collector lens, brightness control knob

• Build Quality: Rigid and ergonomically designed body for heavy-duty professional applications
