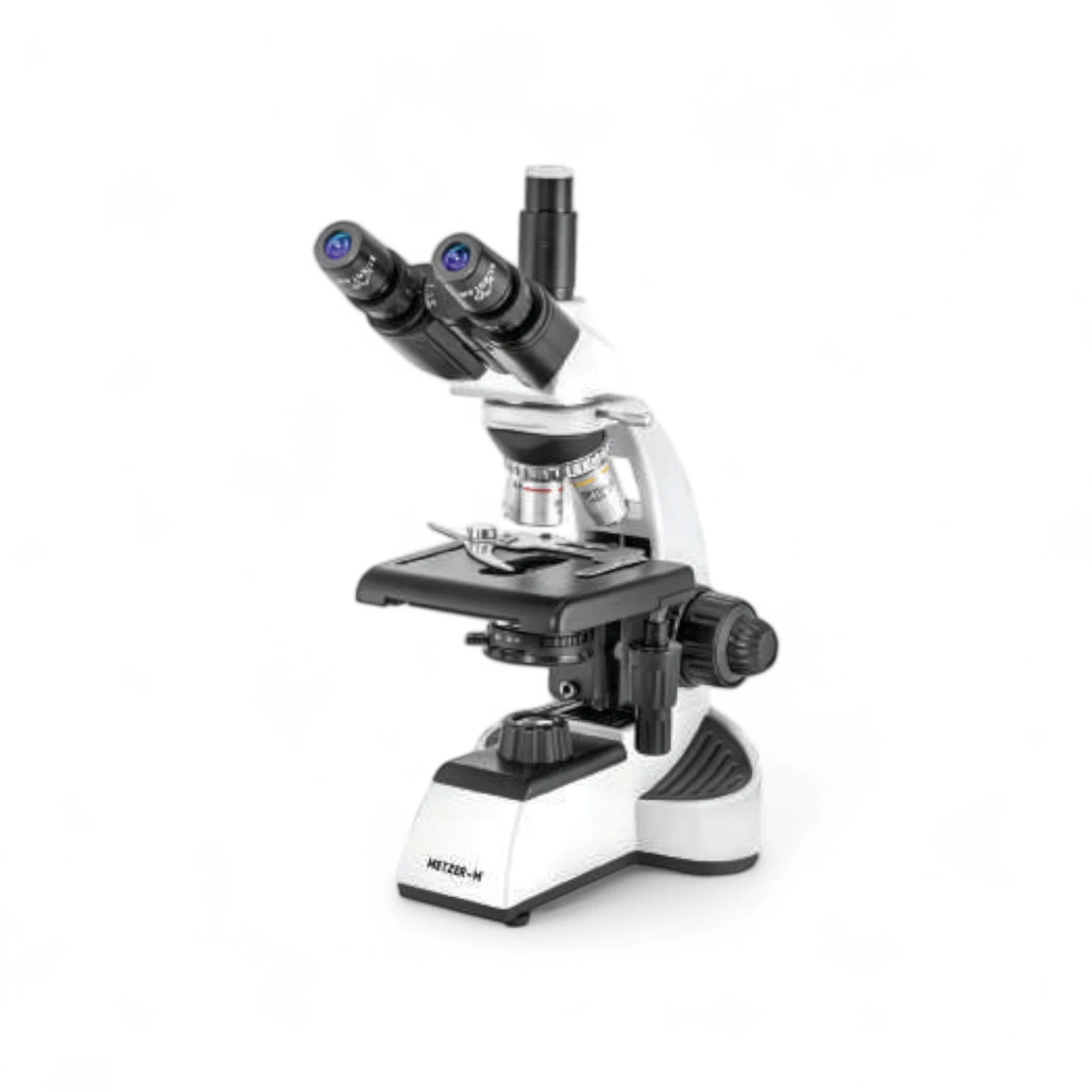

The Advanced Trinocular Research Microscope ABTZ-5000 TM (SUPREME) is a premium-grade optical instrument designed for advanced research, clinical diagnostics, and higher education. With a magnification range of 40x – 1000x, this microscope features infinity-corrected S-Plan achromatic objectives for superior clarity, contrast, and image accuracy.

Its Seidentopf trinocular head allows simultaneous visual observation and digital imaging / photomicrography, making it an excellent choice for modern laboratories. The durable die-cast body, smooth co-axial focusing, and precision stage mechanics ensure stability, accuracy, and comfort during extended use.

Key Features:

• Magnification: 40x – 1000x

• Observation: Seidentopf trinocular head, inclined 30°, 360° rotatable, interpupillary 48–75 mm, diopter adjustment (±5)

• Eyepieces: Wide-field 10x (paired), F.O.V. 20 mm, anti-fungal coated

• Objectives: S-Plan achromatic 4x, 10x, 40x (SL), 100x oil (SL), infinity-corrected & anti-fungal treated

• Stage: Double plate mechanical stage (140×132 mm), low-positioned co-axial controls, cross travel 78×54 mm

• Focusing System: Co-axial coarse & fine adjustment, pre-focusing lever & tension adjustment, fine division 0.002 mm

• Nosepiece: Reverse angle quadruple nosepiece mounted on ball bearings

• Condenser: Abbe condenser N.A. 1.25 with adjustable iris diaphragm

• Illumination: Built-in 3W LED lamp with adjustable brightness

• Mechanical Build: Heavy-duty stand, ergonomically designed for professional and long-duration use

• Additional Feature: Trinocular port for digital imaging & camera integration

Applications:

• Advanced biological & medical research

• Clinical pathology & diagnostic laboratories

• University & postgraduate teaching

• Microbiology, cytology, histology & life science studies

• Digital photomicrography & research documentation
