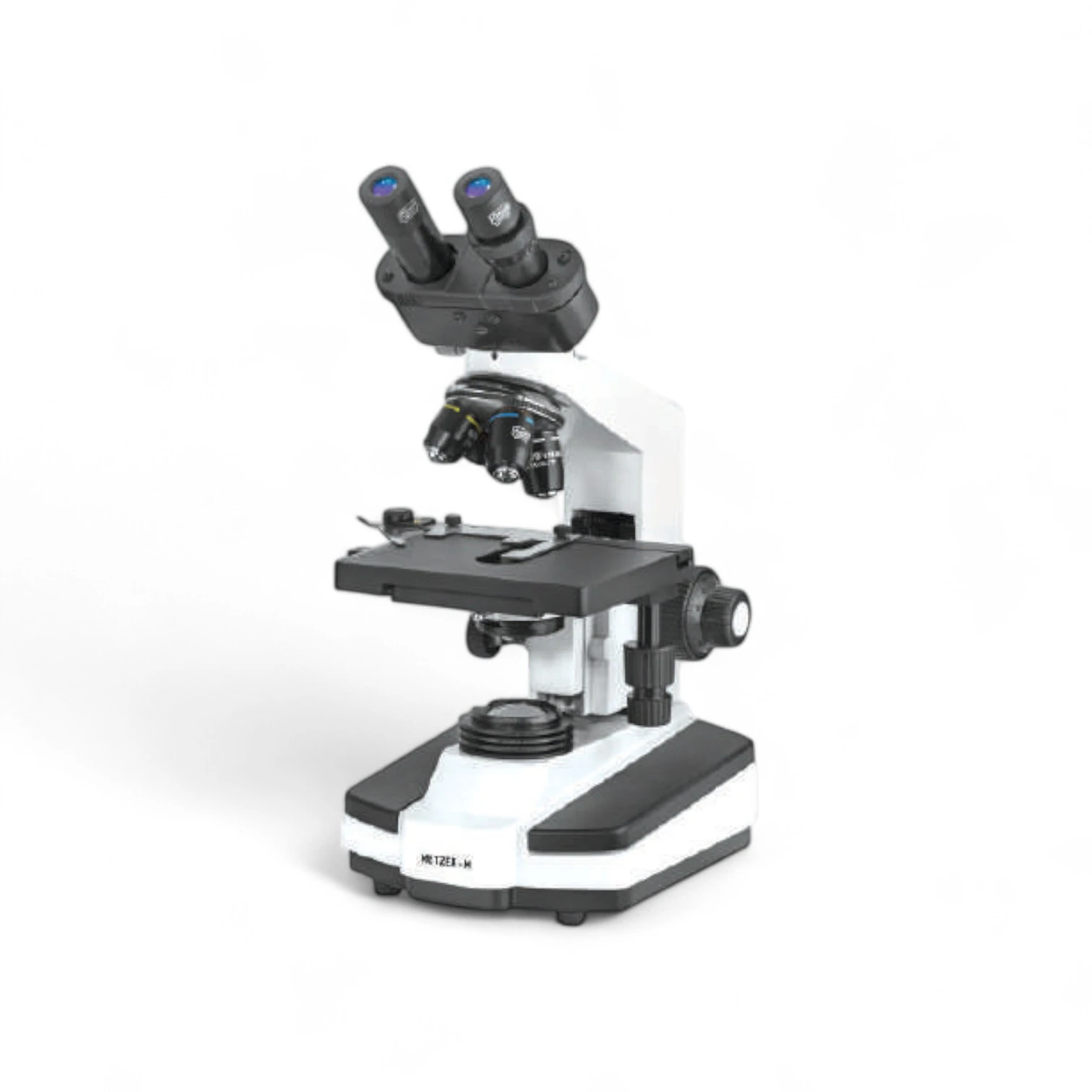

The Binocular Research Microscope ABTZ-5000 BM is a high-end optical instrument designed for advanced biological research, clinical diagnostics, and higher education. With a magnification range of 40x – 1000x and infinity-corrected optics, it delivers exceptional clarity, contrast, and precision for professional applications.

This model is built with a sturdy die-cast aluminum stand, smooth coaxial focusing system, and an advanced LED illumination system, making it reliable for long-term professional use. Its ergonomic binocular observation head ensures comfortable viewing, while the high-quality achromatic objectives provide accurate imaging for medical and scientific research.

Key Features:

• Magnification: 40x – 1000x

• Observation: Binocular head, inclined 45°, 360° rotatable, interpupillary & diopter adjustment

• Stand: Durable pressure die-cast aluminum construction

• Stage: Co-axial low drive mechanical double plate stage with ball bearing guideways

• Focusing System: Coarse & fine coaxial focusing mechanism with precision ball bearing movement

• Illumination: Built-in 3W LED lamp with adjustable brightness

• Nosepiece: Quadruple revolving nosepiece with precise alignment

• Objectives: DIN-SP Achromatic 4x, 10x, 40x (SL), 100x oil immersion (SL), anti-fungal & infinity-corrected

• Eyepieces: Wide-field 10x paired, anti-fungal & anti-reflection coated

Applications:

• Clinical laboratories & pathology labs

• Advanced biological & medical research

• University & higher education institutes

• Microbiology, cytology, and histology studies
