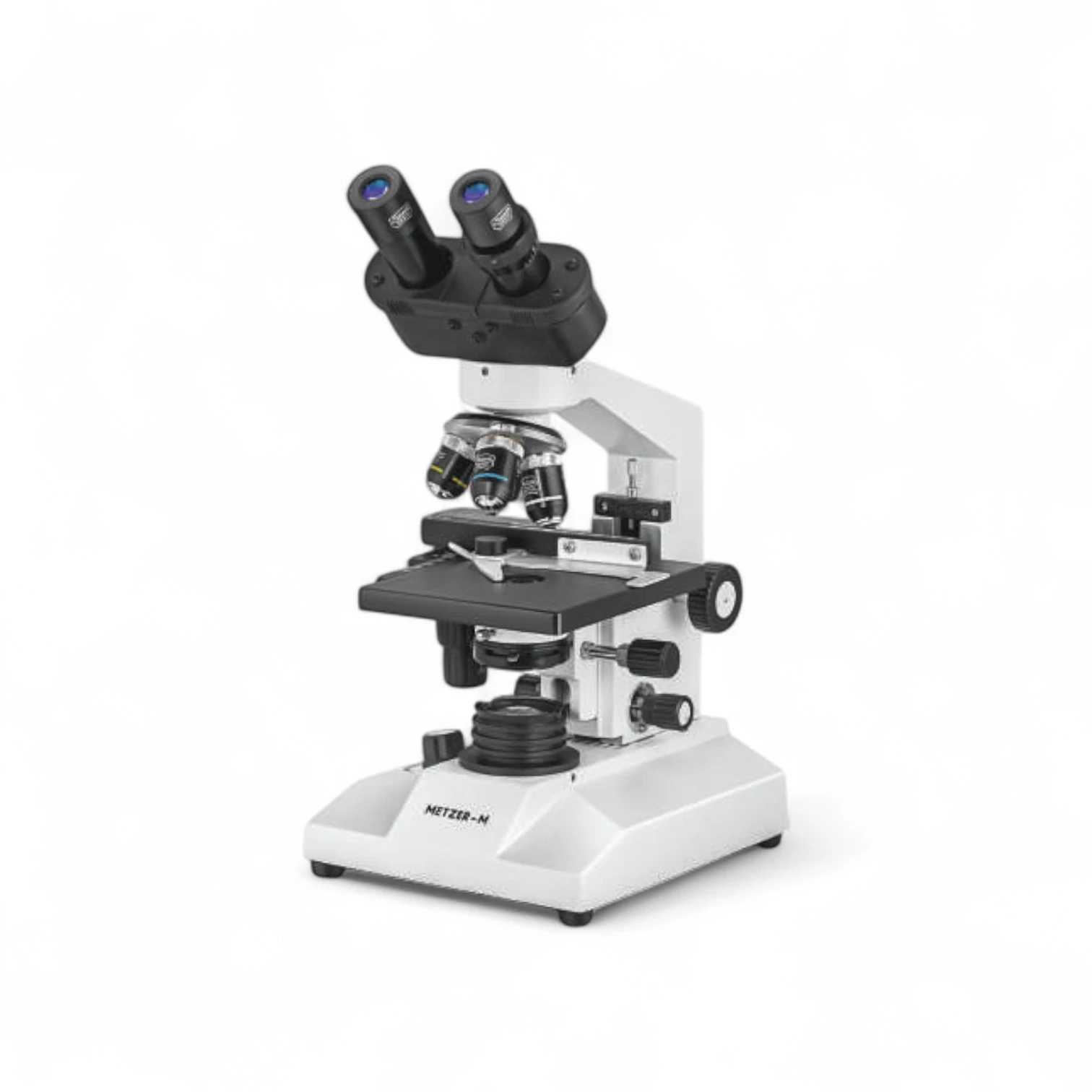

The Binocular Research Microscope ABTZ-778 is a high-precision optical instrument designed for advanced research, clinical analysis, and higher education. With a magnification range of 50x – 1000x, it delivers sharp, bright, and distortion-free images, making it ideal for professional laboratories, medical research, and academic studies. Its ergonomic design with a binocular head, smooth focusing, and LED illumination ensures comfort and accuracy during extended use.

Key Features:

• Magnification: 50x – 1000x

• Observation: Binocular head, inclined 45°, 360° rotatable, with interpupillary and diopter adjustment

• Stand: Rigid, heavy, and stable body for professional use

• Focusing: Coarse & fine focusing with precision (1 div. = 0.002 mm)

• Stage: Horizontal mechanical stage 120×140 mm with fine vernier graduations, co-axial X–Y slide manipulation (50×70 mm)

• Illumination: Built-in 3W LED lamp with adjustable brightness

• Condenser: Abbe condenser N.A. 1.25 with iris diaphragm and swing-out filter holder, rack & pinion focusable

• Nosepiece: Quadruple revolving nosepiece with positive click stops

• Objectives: Achromatic 5x, 10x, 45x & 100x oil immersion (SL)

• Eyepieces: Wide-field 10x paired, anti-fungus coated, F.O.V. 18 mm

Applications:

• Medical and biological research laboratories

• Clinical pathology & diagnostics

• Higher education & university training

• Microbiology, cytology, and histology studies
