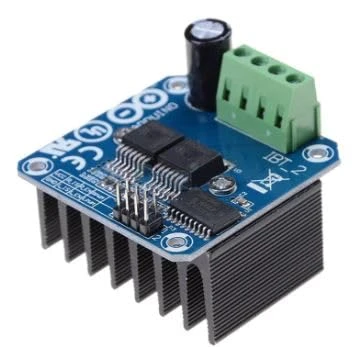

The BTS7960 43A Motor Driver Module is a high-power H-Bridge driver designed for controlling large DC motors in robotics, electric vehicles, automation systems, and research prototypes. Based on the Infineon BTS7960 IC, it provides high current capability (up to 43A peak), making it suitable for heavy-load applications far beyond the reach of typical drivers like L298N or TB6612FNG.

Equipped with built-in optical isolation, PWM speed control, and robust protection features, the BTS7960 is a preferred choice for research labs working on high-power mechatronics and robotic platforms.

• Key Features:

  • Motor Support: Single high-power DC motor

  • Operating Voltage: 5.5V – 27V DC

  • Continuous Current: ~15A – 25A (with heatsink & cooling)

  • Peak Current: 43A

  • Control Interface: PWM (0–25kHz frequency) + Direction inputs (5V logic compatible with Arduino/ESP32/STM32)

  • Efficiency: MOSFET-based H-Bridge for low heat and minimal power loss

  • Protection Features: Over-current, over-temperature, under-voltage, and short-circuit protection

  • Built-in heat sink and isolation for reliable operation under heavy loads

• Applications:

  • High-power robotics (large rover bots, research vehicles)

  • Electric mobility projects (E-scooter/E-bike prototypes)

  • Industrial automation requiring powerful DC actuation

  • Research in smart agriculture & heavy IoT machines

  • Actuators, conveyor belts, and large load-moving mechanisms

This module is research-grade, built for scenarios where high torque and current delivery are critical. It’s often paired with lead-acid or Li-ion battery packs in research projects requiring sustained heavy loads.
