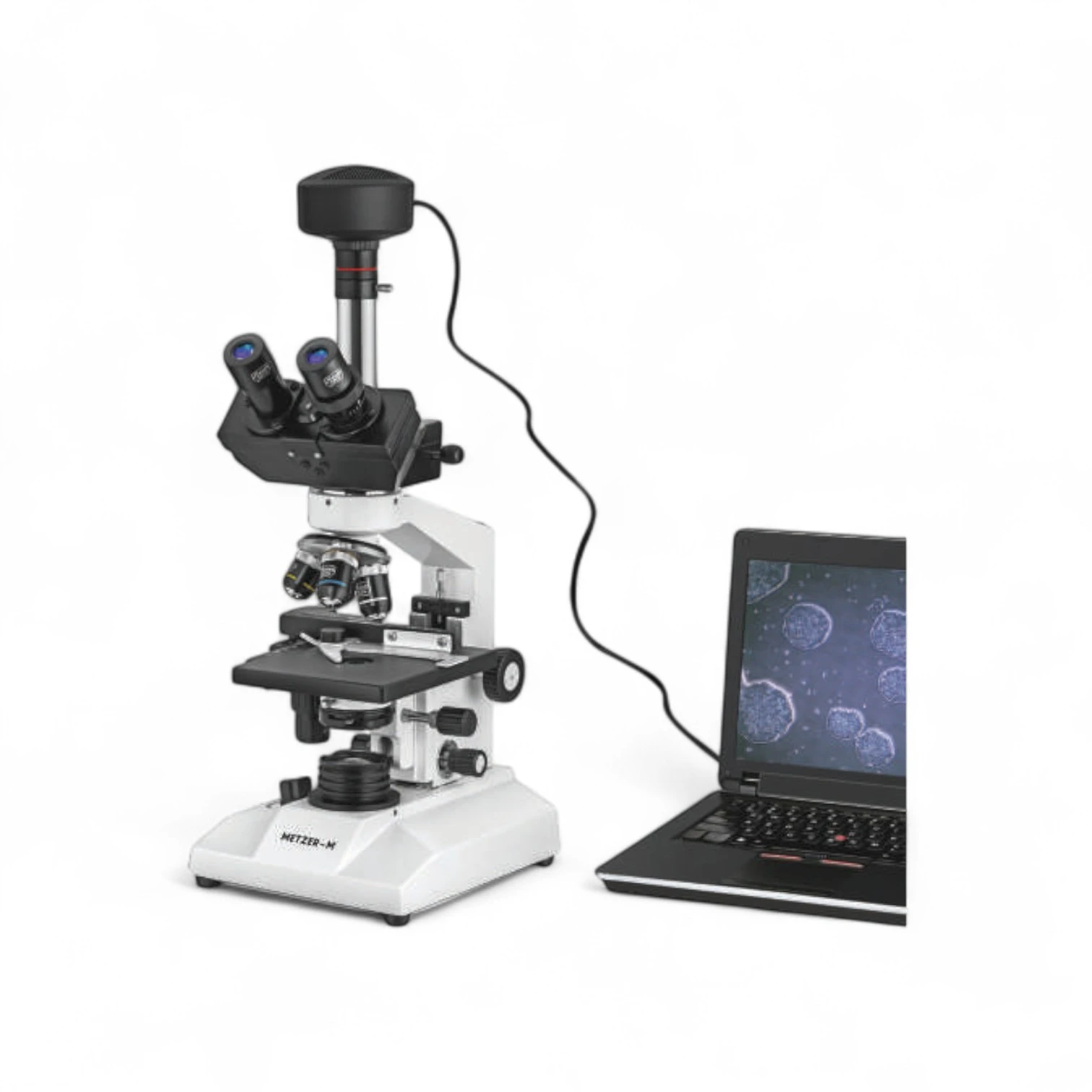

The Digital Trinocular Research Microscope ABTZ-779A is an advanced laboratory instrument that combines precision optics with digital imaging technology. Designed for professional research, clinical diagnostics, and academic use, this microscope is equipped with a high-resolution USB digital camera, enabling real-time viewing, capturing, and analysis of specimens on a computer.

With a magnification range of 50x – 1000x, ergonomic trinocular head, and powerful LED illumination, the ABTZ-779A ensures sharp, bright, and high-contrast images. The digital integration makes it ideal for documentation, teaching, and collaborative research.

Key Features:

• Magnification: 50x – 1000x

• Observation: Trinocular head, inclined 45°, 360° rotatable, with interpupillary & diopter adjustment

• Stand: Heavy, rigid, and stable design for professional use

• Focusing: Coarse & fine focusing with precision (1 div. = 0.002 mm)

• Stage: Mechanical stage 120×140 mm with fine vernier graduations, co-axial X–Y movement (50×70 mm)

• Illumination: 3W LED lamp with adjustable brightness

• Condenser: Abbe condenser N.A. 1.25 with iris diaphragm, swing-out filter holder, rack & pinion focusable

• Nosepiece: Quadruple revolving with positive click stops

• Objectives: Achromatic 5x, 10x, 45x & 100x oil immersion (SL)

• Eyepieces: Wide-field 10x paired, anti-fungus coated, F.O.V. 18 mm

• Digital Camera:

  • 5.0 Megapixel Color CMOS sensor

  • Resolution: 2592 × 1944 pixels

  • Pixel size: 2.2 × 2.2 μm

  • PC interface: USB, 30-bit color depth

  • Exposure time: 1 μs to 2 seconds

  • High-speed image transfer to PC

Applications:

• Advanced biological & medical research

• Clinical diagnostics & pathology labs

• Digital photomicrography & specimen documentation

• Teaching & e-learning in universities and training institutes

• Collaborative research with real-time digital image sharing
