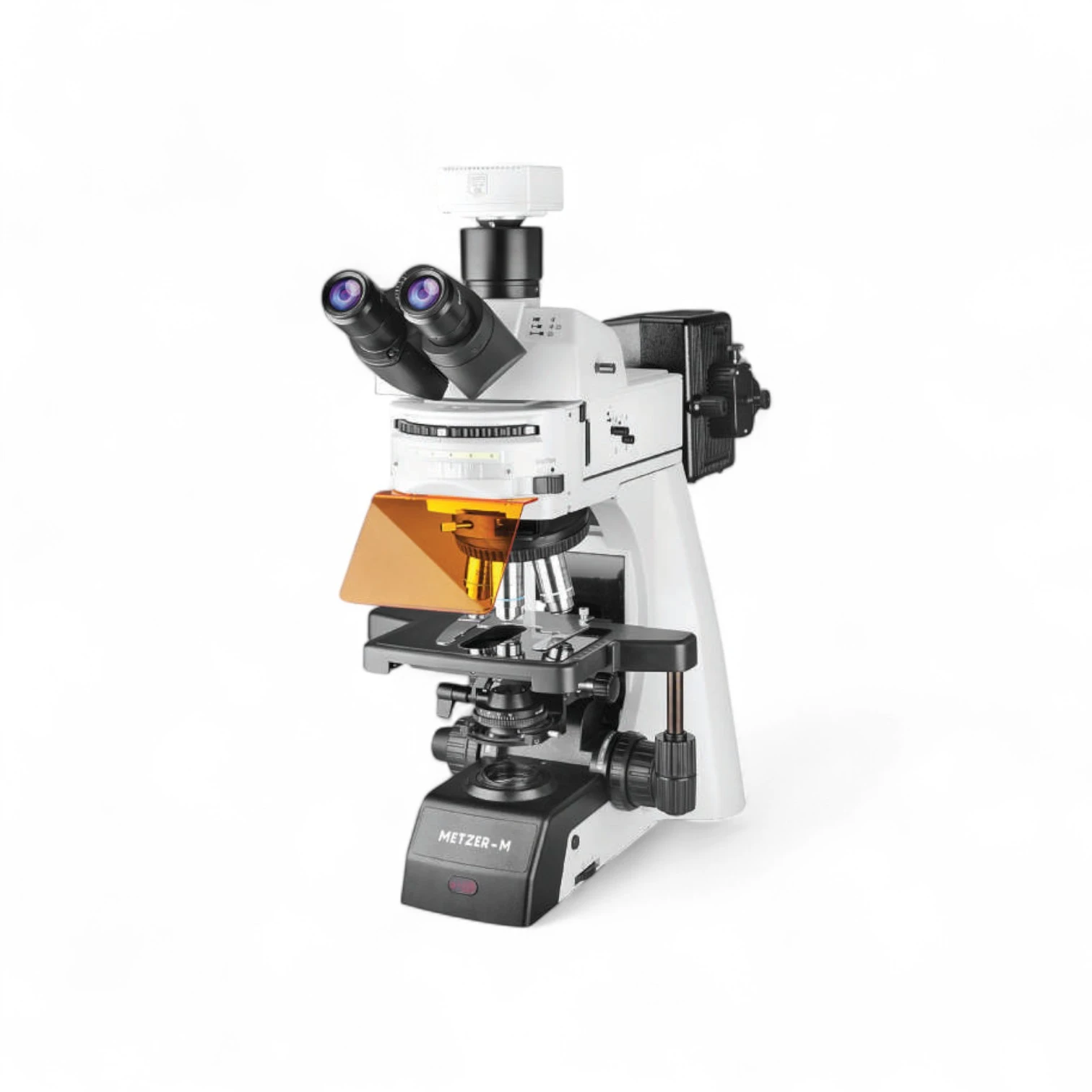

The Fluorescence Upright Research Microscope ABTZ – 8000 FL EDGE is an advanced upright fluorescence microscope designed for high-resolution biomedical imaging, molecular biology, microbiology, and clinical diagnostics. With its infinity-corrected Plan Achromatic EDGE optics, it delivers sharper images, improved contrast, and superior fluorescence sensitivity compared to standard models.

This microscope features a trinocular observation head for both direct visual use and digital photomicrography, making it ideal for advanced research, teaching, and documentation. The EDGE edition is equipped with an upgraded fluorescence system and multi-channel filter cubes, enabling precise detection of multiple fluorophores in complex imaging studies.

🔑 Key Features

• Microscope Type: Upright fluorescence research microscope (EDGE edition)

• Observation Head: Trinocular Seidentopf head, 30° inclined, 360° rotatable, with trinocular phototube for camera integration

• Eyepieces: Extra wide-field 10x (paired), F.O.V. 22 mm, high eye-point, anti-fungal coated

• Objectives: Infinity-corrected Plan Achromatic EDGE optics – 4x, 10x, 40x (spring-loaded), 100x oil immersion

• Stage: Double-layer mechanical stage, X–Y travel ~76 × 50 mm, low-position co-axial controls

• Focusing: Co-axial coarse & fine focusing, pre-focusing lever, tension adjustment, fine division ~0.002 mm

• Condenser: Abbe condenser N.A. 1.25 with iris diaphragm, phase contrast compatible

• Illumination:

  • Brightfield: Köhler LED illumination with adjustable intensity

  • Fluorescence: Enhanced fluorescence system with high-intensity LED/Hg lamp & multi-filter cubes (Blue, Green, UV; optional Red)

• Special Features (EDGE Edition):

  • Advanced EDGE optics for superior clarity and flat field imaging

  • Multi-channel fluorescence with higher sensitivity

  • Optimized for professional research & imaging documentation

• Applications: Immunofluorescence, molecular biology, microbiology, cytogenetics, oncology research, and advanced clinical diagnostics
