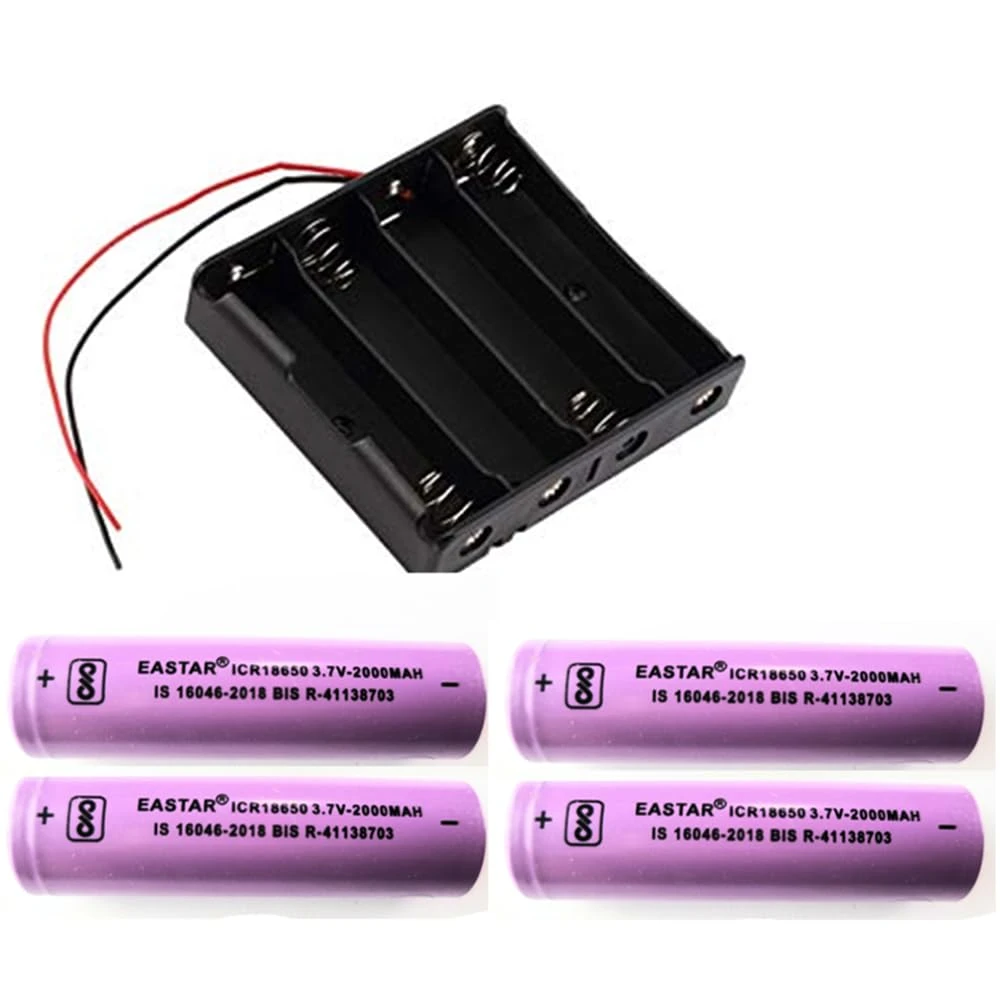

Li-ion 18650 cells are cylindrical rechargeable lithium-ion batteries widely used in IoT devices, robotics, embedded research projects, and portable electronics due to their high energy density, stable performance, and long cycle life. The standard size is 18 mm diameter × 65 mm length, hence the name "18650".

Since these cells are unprotected in raw form, holders are commonly used to provide a safe and modular way to connect one or more cells. Holders are available in single, dual, 3-cell, 4-cell, and higher configurations, supporting series or parallel connections for customized voltage and capacity requirements.

Key specifications (typical 18650 cell):

• Nominal Voltage: 3.6V – 3.7V

• Fully Charged Voltage: 4.2V

• Cut-off Voltage: ~2.5V – 3.0V

• Capacity Range: 1800 mAh – 3500 mAh (varies by manufacturer)

• Continuous Discharge Current: 5A – 20A (depending on cell type)

• Chemistry: Lithium-ion (LiCoO₂, LiMn₂O₄, or hybrid variants)

• Cycle Life: 300–500 charge cycles (can exceed with proper care)

• Protection: Usually requires BMS (Battery Management System) for safe use

Key specifications (typical 18650 holder):

• Material: ABS plastic with metal spring contacts

• Configuration: 1S, 2S, 3S, 4S, or parallel options

• Mounting: PCB mount or wire-lead type

• Operating Voltage (per cell): 3.7V nominal

• Durability: Resistant to moderate heat and mechanical stress

Research & application relevance:

• IoT & Embedded Projects: Powering ESP32, NodeMCU, Arduino-based wireless modules.

• Robotics: Supplies portable power to motors, drivers, and control systems.

• Wearables & Portable Devices: Commonly used in medical devices, flashlights, and research tools.

• Energy Research: Enables experiments with battery charging, BMS, and energy storage systems.

• Custom Power Banks & UPS: Easily configured into higher voltage packs using holders.

Li-ion 18650 cells combined with holders are invaluable in research because they offer modular power solutions, support high current draw, and allow scalable configurations for experimental setups.
