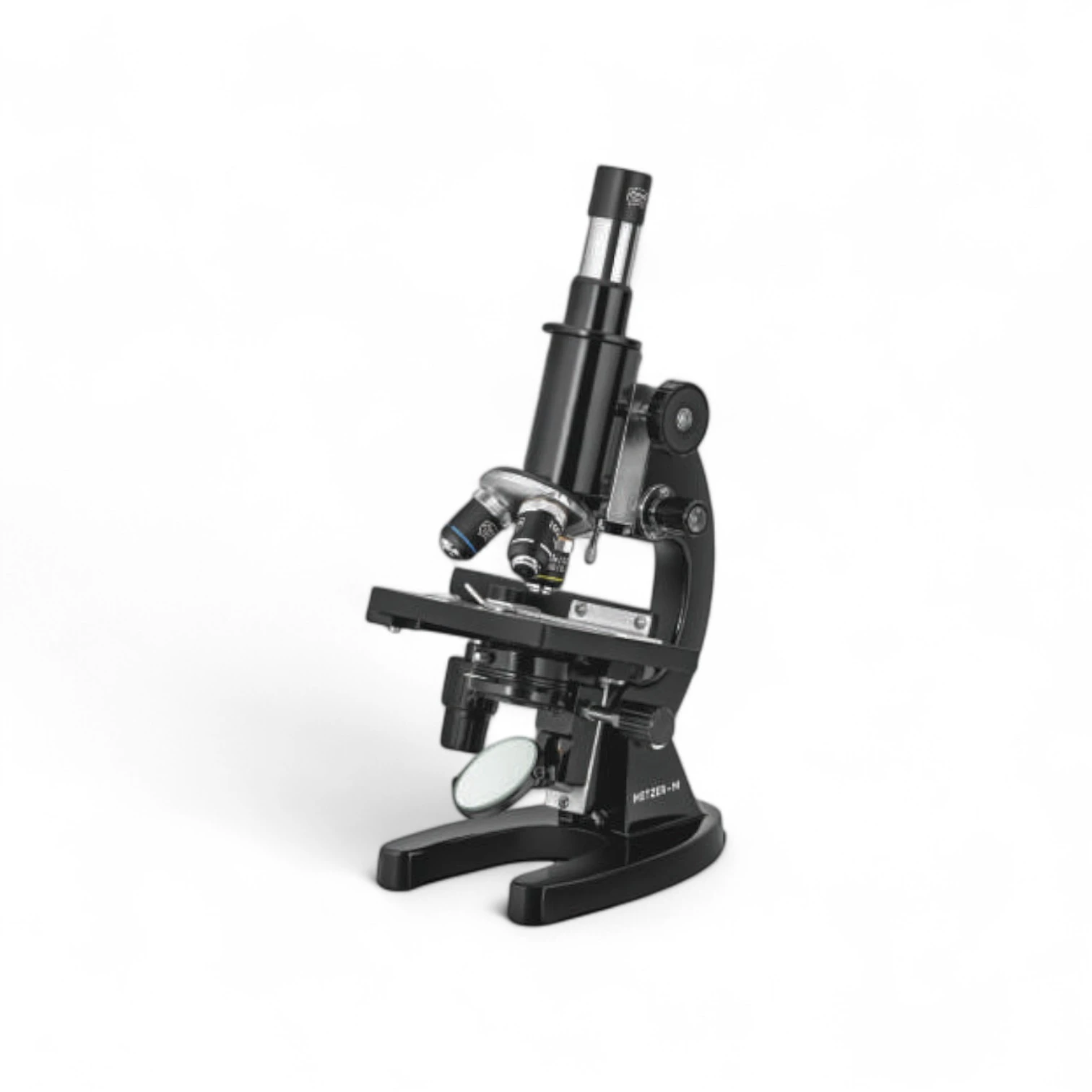

The Medical Research Microscope ABTZ-38 is a precision optical instrument designed for advanced studies in medical, biological, and clinical research. With a magnification range of 100x – 1000x, it provides crystal-clear imaging for detailed specimen observation. Its strong and stable stand, smooth focusing system, and high-quality achromatic objectives make it a reliable choice for research laboratories and medical institutions.

Key Features:

• Magnification: 100x – 1000x

• Stand: Robust, stable, inclinable through 90°

• Focusing: Separate knobs for coarse and fine motion

• Stage: Fixed square stage (120×120 mm) with co-axial graduated mechanical stage for smooth X–Y movement (55mm to 75mm)

• Illumination: Plano-concave mirror, replaceable with sub-stage lamp

• Condenser: Abbe condenser N.A. 1.25 with iris diaphragm and filter holder, rack & pinion focusable

• Nosepiece: Triple revolving with positive click stops, dustproof

• Objectives: Achromatic 10x, 45x & 100x oil immersion (SL)

• Eyepiece: Wide field 10x, anti-fungus coated

Applications:

• Medical and biological research laboratories

• Clinical diagnostics and pathology

• Advanced studies in microbiology, histology, and cytology

• Educational use in medical colleges and universities
