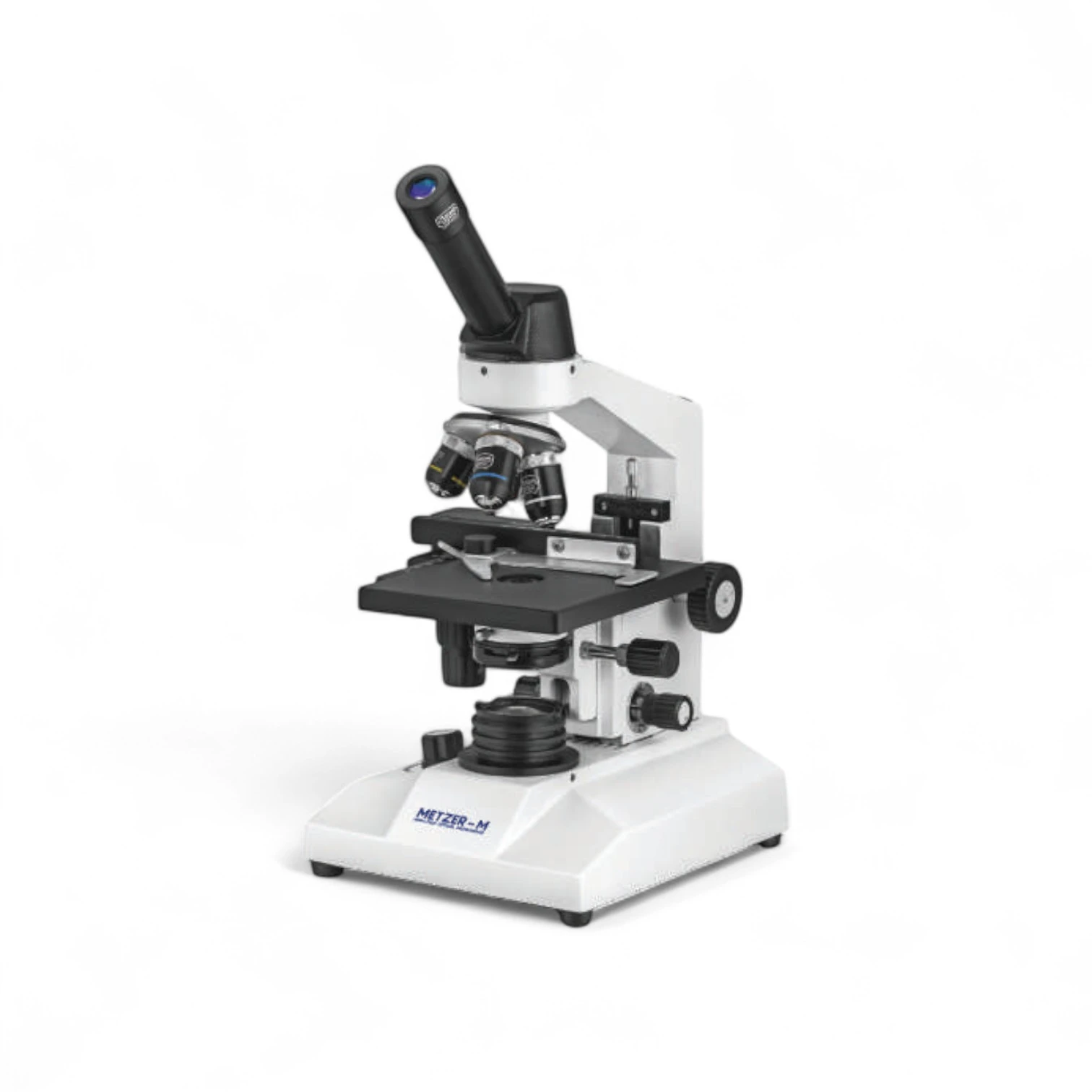

MONOCULAR RESEARCH MICROSCOPE ABTZ - 777

(0)

0 Reviews

100 In Stock

₹12,000

Qty

Total price: ₹12,000

Details description
The Monocular Research Microscope ABTZ-777 is a high-quality optical instrument designed for educational institutions, research laboratories, and medical studies. With a magnification range of 100x – 1000x, this microscope offers precision and clarity for detailed specimen observation. Its robust construction, fine focusing system, and anti-fungus coated optics make it ideal for routine research and advanced biological studies. Key Features: Magnification: 100x – 1000x Observation: Monocular tube, inclined 45° and rotatable through 360° Stand: Rigid, heavy-duty, and stable design Focusing: Separate coarse & fine focusing knobs, precision 1 div. = 0.002 mm Stage: Fixed square stage (120×140 mm) with co-axial graduated mechanical stage for X–Y movement (55–75 mm) Illumination: Built-in 3W LED lamp with adjustable brightness, or plano-concave mirror option Condenser: Abbe condenser N.A. 1.25 with iris diaphragm, swing-out filter holder, rack & pinion focusable Nosepiece: Triple revolving nosepiece with positive click stops Objectives: Achromatic 10x, 45x, 100x oil immersion (SL) Eyepiece: Wide-field 10x, anti-fungus coated Applications: Biological and medical research Clinical and diagnostic laboratories Educational use in schools, colleges, and universities Microbiology, pathology, and cytology studies

Details description

The Monocular Research Microscope ABTZ-777 is a high-quality optical instrument designed for educational institutions, research laboratories, and medical studies. With a magnification range of 100x – 1000x, this microscope offers precision and clarity for detailed specimen observation. Its robust construction, fine focusing system, and anti-fungus coated optics make it ideal for routine research and advanced biological studies.

Key Features:

Magnification: 100x – 1000x
Observation: Monocular tube, inclined 45° and rotatable through 360°
Stand: Rigid, heavy-duty, and stable design
Focusing: Separate coarse & fine focusing knobs, precision 1 div. = 0.002 mm
Stage: Fixed square stage (120×140 mm) with co-axial graduated mechanical stage for X–Y movement (55–75 mm)
Illumination: Built-in 3W LED lamp with adjustable brightness, or plano-concave mirror option
Condenser: Abbe condenser N.A. 1.25 with iris diaphragm, swing-out filter holder, rack & pinion focusable
Nosepiece: Triple revolving nosepiece with positive click stops
Objectives: Achromatic 10x, 45x, 100x oil immersion (SL)
Eyepiece: Wide-field 10x, anti-fungus coated

Applications:

Biological and medical research
Clinical and diagnostic laboratories
Educational use in schools, colleges, and universities
Microbiology, pathology, and cytology studies
