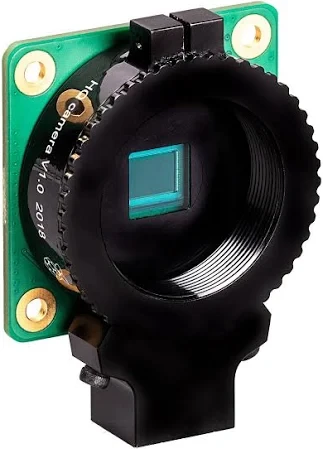

The Raspberry Pi High-Quality (HQ) Camera is an advanced camera module designed to provide superior imaging capabilities for research, prototyping, and embedded vision applications. It is the official high-end camera solution from Raspberry Pi, supporting interchangeable C- and CS-mount lenses, making it highly flexible for academic and industrial research projects.

Technical Specifications

• Sensor: 12.3 MP Sony IMX477R CMOS sensor

• Resolution: 4056 × 3040 pixels

• Pixel Size: 1.55 µm × 1.55 µm (large pixels for improved low-light performance)

• Lens Mount: C-mount and CS-mount (compatible with a wide range of industrial and scientific lenses)

• Back Focus Adjustment: Provided via mount adapter and ring

• IR Sensitivity: Available in standard and IR-sensitive versions (NoIR)

• Shutter Type: Rolling shutter

• Supported Boards: Fully compatible with Raspberry Pi boards via CSI-2 interface (Raspberry Pi 4, Pi 5, Pi Zero 2 W, etc.)

• Frame Rates: Up to 1080p60, 720p120 (depending on resolution and settings)

• Connectivity: 15-pin MIPI CSI-2 connector

• Operating Voltage: 3.3V (via Pi camera interface)

• Operating Temperature: -20°C to +60°C

Features

• Interchangeable lens system for flexible field-of-view and depth-of-field control.

• High resolution and low-noise imaging suitable for computer vision and machine learning tasks.

• Excellent low-light performance due to larger pixel size.

• Adjustable back focus and tripod mount for precision alignment.

• Long-term availability as an official Raspberry Pi Foundation product.

Common Use Cases

• Computer Vision Research: Object detection, image recognition, and ML dataset generation.

• IoT & Robotics: Vision-guided navigation, automation, and surveillance.

• Scientific Imaging: Microscopy, environmental monitoring, and industrial inspection.

• Embedded Prototyping: AI/ML inference with Raspberry Pi 4/5 or Coral accelerators.

• Educational Projects: Teaching optics, image processing, and AI.

Why valuable for research:
The Raspberry Pi HQ Camera provides professional-level imaging at a fraction of the cost of industrial cameras, making it ideal for university labs, robotics research, IoT startups, and embedded vision developers in India who need flexible, high-quality imaging solutions without prohibitive costs.
