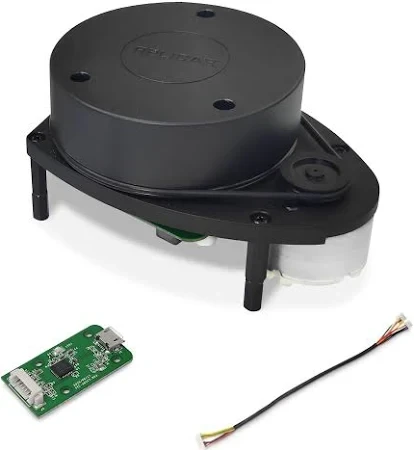

The RPLIDAR A1M8-R6 is a 360° 2D LiDAR laser range scanner designed for affordable and effective mapping, navigation, and obstacle detection in robotics, IoT, and academic research. It is one of the most cost-efficient models in the RPLIDAR family, offering reliable performance for entry-level SLAM (Simultaneous Localization and Mapping) and mobile robotics applications.

Using a low-power infrared laser, the A1M8-R6 provides distance measurements across a 12-meter range with a scan frequency of up to 10 Hz and 8,000 samples per second, enabling smooth mapping in indoor environments. Its compact and lightweight design makes it suitable for small-scale robots, IoT prototypes, and academic projects requiring reliable yet economical LiDAR sensing.

Technical Specifications:

• Scan Mode: 360° omnidirectional 2D scanning

• Detection Range: 0.15 m – 12 m (indoor)

• Accuracy: ±2% of distance (typical)

• Sampling Rate: 8,000 samples/sec (max)

• Scan Frequency: 5–10 Hz (adjustable)

• Angular Resolution: 1° – 1.5° (depending on mode)

• Field of View: Full 360°

• Laser Safety: Class 1 (eye-safe infrared)

• Communication Interface: 3.3V TTL UART (USB adapter included)

• Operating Voltage: 5V DC

• Current Consumption: ~400 mA

• Dimensions: ~70 mm × 70 mm × 41 mm

• Weight: ~170 g

Features:

• 360° real-time scanning with up to 12 m detection range

• High-speed sampling (8,000 samples/sec) for smoother mapping

• Lightweight and power-efficient for small robotics platforms

• Plug-and-play with ROS (Robot Operating System) and SDK libraries

• Ideal for SLAM, obstacle avoidance, and environment scanning in research prototypes

Common Research & IoT Use Cases:

• Robotics: SLAM, obstacle detection, and navigation for small robots

• IoT & Smart Systems: Presence detection, indoor environment mapping

• Drones/UAVs: Lightweight LiDAR for indoor collision avoidance

• Academic Projects: Low-cost research in AI robotics, pathfinding, and automation

• Industrial R&D: Prototyping automated guided vehicles (AGVs) and warehouse robots

The RPLIDAR A1M8-R6 is highly valued in research labs, universities, and hobby robotics communities because it provides affordable LiDAR sensing with ROS support, making it one of the best entry-level choices for SLAM and mapping experiments.
